Home / Metal Valves / Ball Valves  /  Brass Ball Valve Compression Ends BSI Gas Approved
Brass Ball Valve Compression Ends BSI Gas Approved
Brass Ball Valve Compression Ends BSI Gas Approved
Brass Ball Valve Compression Ends BSI Gas Approved
Brass Ball Valve Compression Ends BSI Gas Approved

Brass Ball Valve Compression Ends BSI Gas Approved

Product Code: V233215
Product Code: V233215

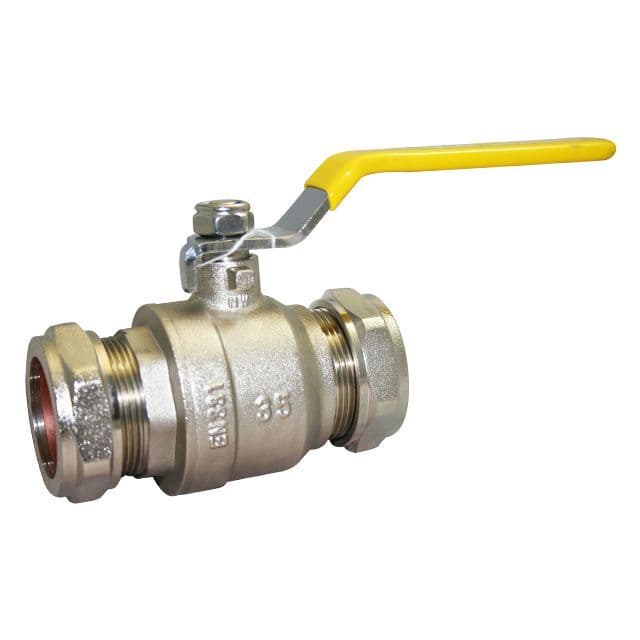

Brass Ball Valve – Compression Ends – BSI Gas‑Approved

Highly suited to gas system installations, this brass ball valve features compression ends and full BSI gas‑approval. The compression‑type connections allow easy installation into copper or compatible plastic pipework with minimal tooling required, delivering a secure, reliable shut‑off valve for service lines.

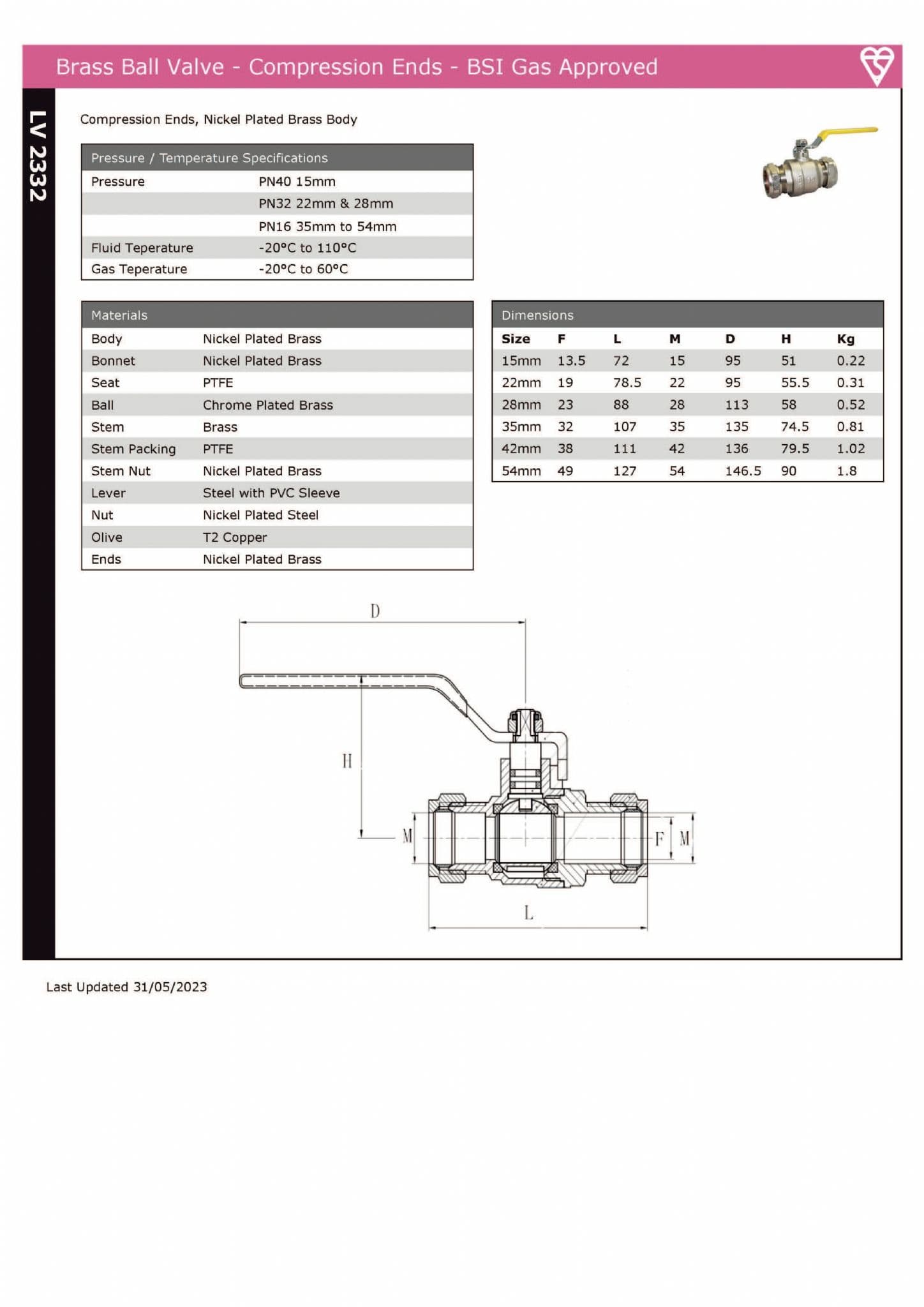

Technical Data:

  • Body material: Brass (typically CW614N or equivalent)

  • Connection type: Compression ends for copper/PEX pipe connections

  • Certification: BSI gas‑approved for gas supply systems

  • Flow path: Full‑bore ball design to minimise pressure drop

  • Pressure rating: Rated PN40 15mm, PN32 22mm & 28mm, PN16 35mm to 54mm

  • Temperature range: Fluid Temperature -20°C to 110°C, Gas Temperature -20°C to 60°C

  • Seat and seal materials: PTFE seats, NBR or Viton O‑rings suitable for gas service


Features:

  • Compression ends reduce installation time and eliminate soldering

  • BSI gas approval ensures compliance with UK gas supply regulations

  • Full‑bore design offers efficient flow and less turbulence


Applications: Domestic and commercial gas line shut‑offs, meter risers, service isolation valves.
  • MPN:
    V233215
  • Type:
    Valve
  • Brand:
    Pipetech
  • Condition:
    New
  • Product Code:
    V233215
