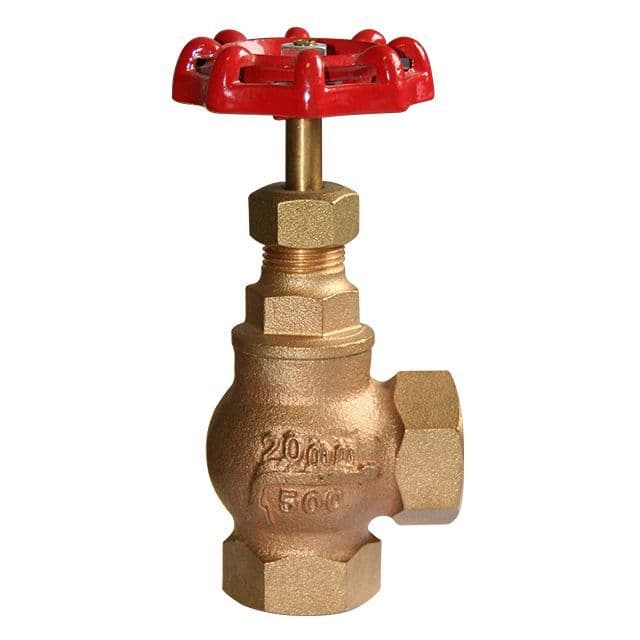

Overview of Bronze Globe Valve – PN25 – Angle Pattern

Description
This bronze globe valve in an angle pattern simplifies piping layouts by eliminating the need for a separate elbow to achieve a 90° turn. It offers the same reliable throttling and shut-off capacities as standard globe valves but in a space-saving orientation. It’s ideal for radiator feeds, HVAC circuits, and applications where efficient layout or compact footprint is required.

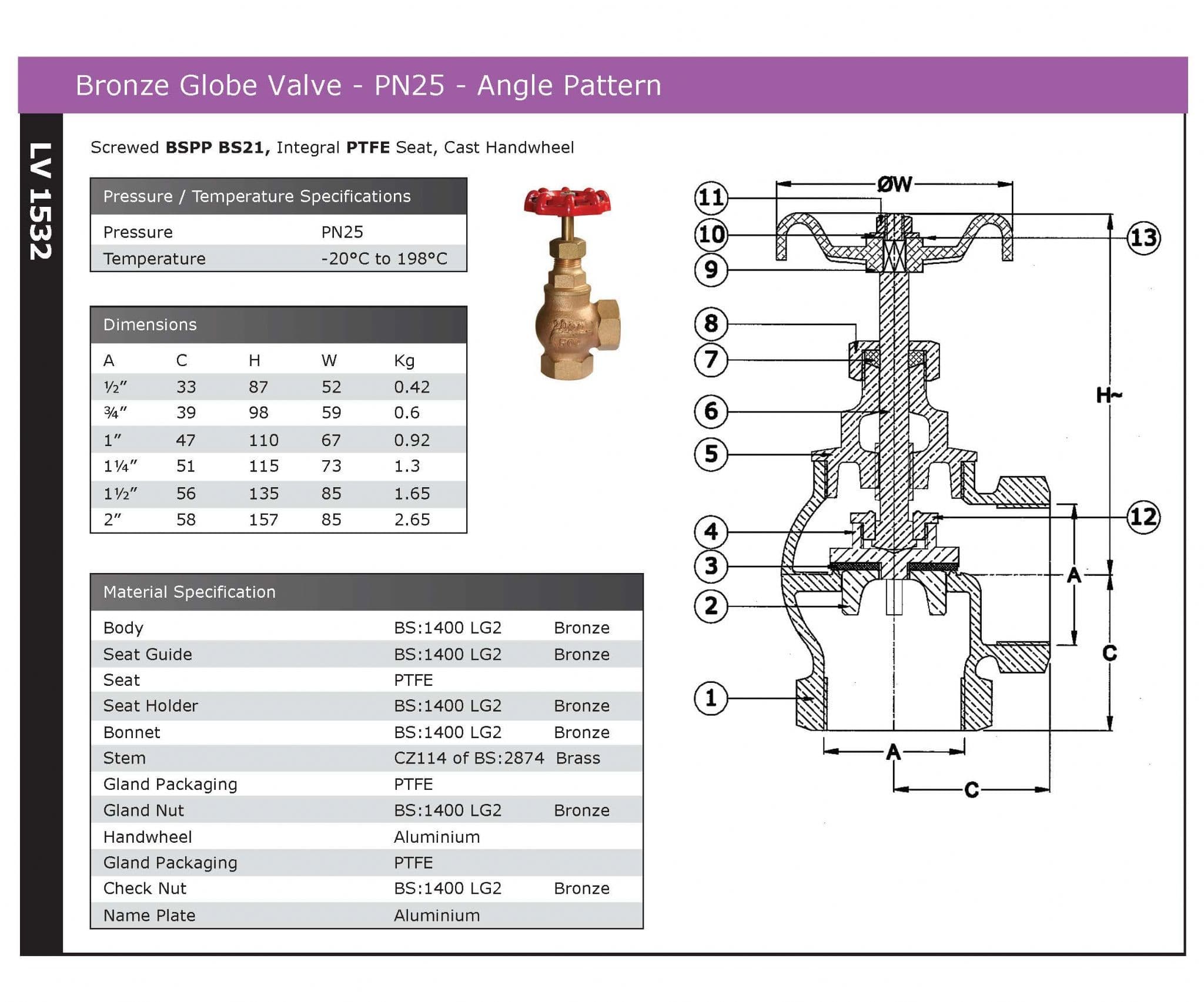

Technical Data

• Body Material: Bronze

• Pattern: Angle globe

• End Connections: Screwed BSPP

• Pressure Rating: PN25

• Temperature Range: –20 °C to +198 °C

• Seat Material: PTFE

• Operation: Handwheel

Key Features

• Angle pattern reduces external piping and fittings

• Bronze construction suitable for water and steam

• Globe design for accurate flow control

Installation & Application Notes
Install with correct orientation for flow direction. Excellent choice for radiator feeds, small HVAC systems, and tight mechanical rooms.
