Diaphragm Valves
Ductile iron Weir-type diaphragm valves are robust industrial components widely utilised across various sectors, including water treatment, chemical processing, and mining. These valves leverage the mechanical advantages of ductile iron and the unique design of Weir-type diaphragm valves to offer reliable control over fluid flow, especially in applications involving corrosive or abrasive slurries. This overview explores ductile iron Weir type diaphragm valves' construction, operation, advantages, and applications.
Construction and Operation
Ductile iron, or spheroidal graphite iron, is an iron-carbon alloy with magnesium. The addition of magnesium before the casting process causes the graphite in the cast iron to form into tiny spheres rather than the usual flakes. This spherical graphite structure imparts enhanced mechanical properties such as tensile strength, flexibility, and toughness, which are superior to traditional cast iron ones.

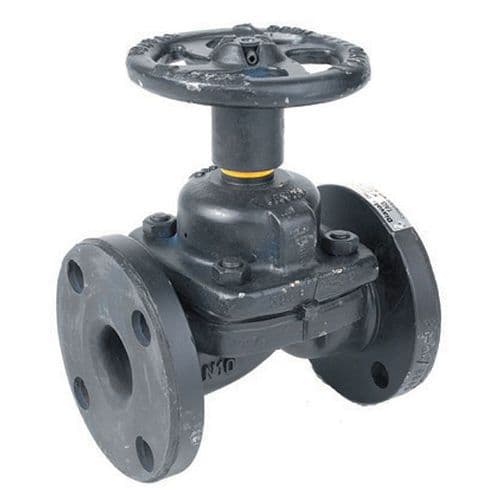

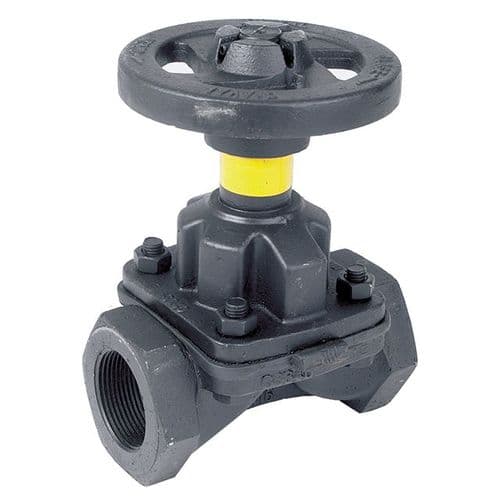

Weir-type diaphragm valves feature a unique design in which a flexible diaphragm rises and lowers onto a saddle or weir, thereby controlling material flow through the valve. The valve's body is typically made from ductile iron, providing significant strength and durability. The diaphragm, usually made from elastomers like EPDM, PTFE, or Nitrile, acts as the closure element and directly contacts the process fluid, ensuring that the moving parts are isolated. This design minimises the potential for leakage and reduces wear on the moving parts.
The operation of Weir-type diaphragm valves is straightforward. The movement of the diaphragm is controlled either manually via a handwheel or automatically through pneumatic, hydraulic, or electric actuators. As the diaphragm is raised, the valve opens, allowing fluid flow. Lowering the diaphragm closes the valve, providing a tight seal against high pressures.
Advantages of Ductile Iron Weir Type Diaphragm Valves
1. Corrosion and Abrasion Resistance: Ductile iron’s inherent strength and engineering properties are ideal for use in abrasive or corrosive environments. When treated with protective linings or coatings, these valves exhibit enhanced resistance to the harsh chemicals often encountered in industrial processes.
2. Durability and Reliability: Thanks to the ductile iron's robust nature and the diaphragm's protective effect, these valves are known for their longevity and reliability in demanding applications. The diaphragm’s flexibility and the valve's simple design reduce the potential for failures related to wear and tear on internal components.
3. Minimal Leakage: The tight seal formed by the diaphragm when the valve is closed ensures minimal leakage, which is crucial in applications involving hazardous or expensive materials.
4. Versatility: Ductile iron Weir-type diaphragm valves are versatile in application. They can handle a wide range of fluids, from gases to slurries, and operate in a wide temperature and pressure range.
5. Easy Maintenance: The design of these valves simplifies maintenance tasks. The diaphragm can be replaced without removing the valve from the pipeline, and there are few moving parts, reducing the time and cost associated with repairs.
Applications
Ductile iron Weir-type diaphragm valves are used in various industries. In the water treatment industry, they dose and control the flow of chemicals such as chlorine and sulfuric acid. The chemical industry uses these valves to control and shut off applications involving corrosive substances. They are also prevalent in the mining industry, where they handle abrasive slurries used in mineral processing.
In the food and beverage industry, the hygienic versions of these valves, often made with specialised diaphragms, control the flow of ingredients and cleaning solutions. The pharmaceutical sector similarly uses these valves for sterile processes, where contamination must be strictly controlled.
Conclusion
Ductile iron Weir-type diaphragm valves are critical components in many industrial applications, chosen for their robustness, reliability, and versatility. Their ability to handle various environmental conditions and media types makes them invaluable in industries that require precise flow control and durability in challenging situations. With minimal maintenance requirements and a design that caters to a wide range of operating conditions, these valves are preferred for many sectors seeking efficient and reliable fluid control solutions.
