Pipe Saddles

Fernco Pipe Saddles for Secure Underground Drainage Connections

Fernco pipe saddles provide a practical and efficient solution for creating new branch connections into existing underground drainage systems. Designed for below-ground use, these saddles allow installers to connect additional pipework without removing or replacing long sections of host pipe. This makes them ideal for drainage modifications, extensions and system upgrades in both residential and commercial environments.

Unlike traditional junction fittings that require cutting out a full pipe section, pipe saddles are fixed directly onto the outer wall of the main pipe. Once installed correctly and sealed, they form a strong and reliable connection point. This approach reduces excavation time, lowers labour costs and minimises disruption on site. For projects where access is limited or the existing drainage run must remain largely intact, pipe saddles offer a highly practical alternative.

Fernco pipe saddles are manufactured from durable, high-performance materials engineered to withstand underground conditions. They are designed to resist moisture, soil pressure and temperature fluctuations while maintaining structural integrity over time. Their robust construction ensures they remain secure even in demanding installations, including areas with heavy ground loading.

Available in a variety of outlet sizes and branch angles, Fernco saddles accommodate different pipe diameters and flow requirements. Options typically include 110mm, 160mm and 200mm branch connections, with both 45-degree and 90-degree configurations available depending on the required direction of flow. This flexibility makes them suitable for foul water and surface water drainage systems alike.

45° and 90° Branch Options for Controlled Flow

One of the key considerations when selecting a pipe saddle is the branch angle. Fernco saddles are commonly available in both 45-degree and 90-degree designs, each serving a different purpose within the drainage system.

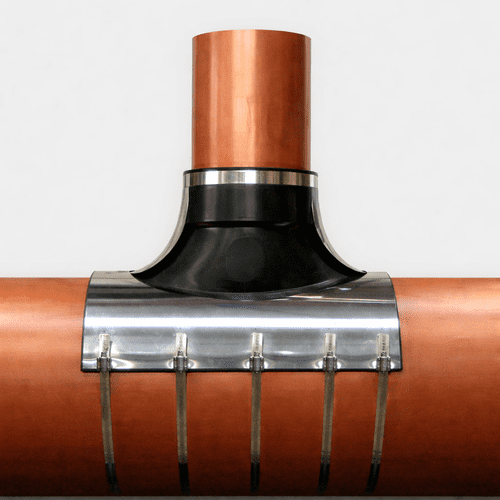

A 90-degree saddle provides a direct, perpendicular connection into the host pipe. This configuration is often used where space constraints require a straightforward branch entry. It delivers a compact and efficient solution, particularly when connecting smaller-diameter pipes such as 110mm outlets into larger mains.

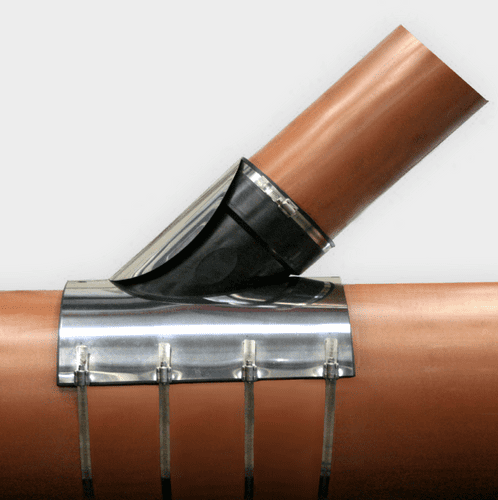

A 45-degree saddle, on the other hand, allows wastewater to enter the main pipe at a more gradual angle. This design promotes smoother hydraulic performance, helping to reduce turbulence and improve overall flow efficiency. For systems where maintaining optimal drainage performance is a priority, the 45-degree option is often preferred.

Both configurations are engineered for compatibility with standard underground drainage pipe sizes. Host pipe diameters commonly range from 160mm through to 400mm, depending on the specific saddle model. This broad compatibility makes Fernco pipe saddles adaptable to a wide range of installation scenarios.

Durable, Cost-Effective Solutions for Drainage Modifications

In many projects, extending or altering an existing underground drainage system can present logistical challenges. Excavating and removing sections of pipe is time-consuming and may not always be practical, particularly in built-up areas or where landscaping must be preserved. Fernco pipe saddles address this challenge by offering a less invasive method of forming new branch connections.

Because the saddle attaches externally to the main pipe, only a controlled opening is required to create the new junction. This significantly reduces material waste and limits disruption to the surrounding area. For contractors and installers, this can translate into faster project completion times and improved cost efficiency.

Fernco pipe saddles are designed with long-term reliability in mind. Their construction ensures resistance to corrosion and degradation, which is especially important in underground environments exposed to constant moisture and soil movement. When installed according to best practice guidelines and sealed correctly, they provide a watertight and durable connection that supports ongoing system performance.

In addition to structural strength, these saddles are engineered for ease of installation. The design enables secure positioning around the host pipe, ensuring accurate alignment before final fixing. This helps reduce installation errors and supports consistent results across multiple applications.

Suitable for Residential, Commercial and Infrastructure Projects

Fernco pipe saddles are suitable for a broad range of drainage applications. In residential settings, they are commonly used when adding new bathrooms, utility rooms or extensions that require connection to an existing underground drainage run. Rather than excavating and replacing long pipe sections, installers can create a branch connection quickly and efficiently.

In commercial and light industrial projects, larger-diameter saddles such as 160mm and 200mm outlets provide the capacity needed for higher wastewater volumes. These options are well suited to multi-unit developments, retail premises and infrastructure upgrades where system performance and durability are critical.

The availability of multiple size combinations ensures compatibility with standard underground drainage systems. Whether connecting a 110mm branch into a 160mm host pipe or forming a 200mm connection into a larger main, Fernco saddles offer flexibility without compromising strength.

Beyond new installations, pipe saddles are also valuable in repair scenarios. If a drainage system requires reconfiguration due to structural changes or layout adjustments, saddles provide a straightforward way to adapt the existing infrastructure. This adaptability makes them a practical addition to any drainage installer’s toolkit.

Overall, Fernco pipe saddles combine efficiency, durability and versatility. By reducing the need for extensive excavation and full junction replacements, they offer a cost-effective solution for forming secure branch connections in underground drainage systems. Available in a range of sizes and angles, they support reliable wastewater management across residential, commercial and infrastructure projects while maintaining long-term structural integrity beneath ground level.
