Plug Cocks & Plug Valves
Plug valves and plug cocks, integral components in fluid control systems, are designed for on-off and diverting service applications. Their basic structure consists of a cylindrical or tapered plug that rotates within the valve's body to control the flow through the valve. Bronze, a copper-based alloy typically combined with tin, lead, and other metals, is a popular material choice for these valves due to its excellent corrosion resistance and durability in various fluid environments. This overview will explore the attributes, applications, and considerations associated with bronze plug cocks and plug valves, detailing their role in modern industrial applications.
Bronze as a Material for Valves
Bronze is one of the oldest materials used in valve manufacturing. It is appreciated for its resilience and robust performance in corrosive environments. Bronze's composition can vary, but it generally includes copper and tin, with possible additions of phosphorus, manganese, aluminium, or silicon to enhance specific properties like strength, corrosion resistance, or machinability.
Advantages of Bronze in Valves:
- Corrosion Resistance: Bronze valves offer superior resistance to corrosion and dezincification, making them suitable for applications involving water, steam, and certain mild chemicals.
- Durability: Bronze's structural integrity makes it ideal for medium-pressure applications, maintaining good performance over a wide range of temperatures.
- Cost-Effectiveness: While generally more expensive than other common materials like cast iron, bronze provides a good balance between cost and performance, especially in smaller valves.

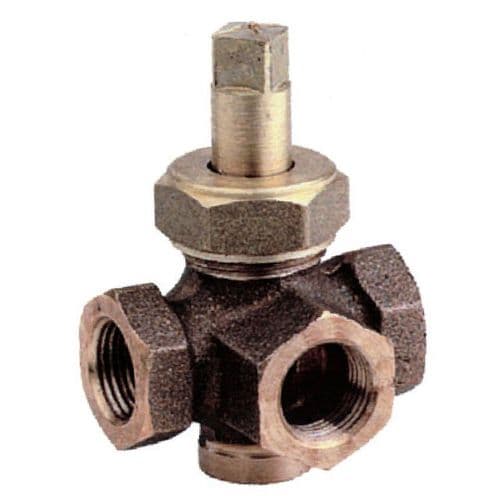

Bronze Plug Cocks
Bronze plug cocks, a subset of plug valves, are typically designed for more straightforward, lower-pressure applications. The term "cock" generally refers to smaller and simpler designs used in domestic or light industrial applications.
Design and Functionality:
- Design: Plug cocks usually feature a simple, quarter-turn operation mechanism with a solid or hollow plug that fits snugly into the seat. The simplicity of their design makes them reliable and easy to maintain.
- Sealing: Effective sealing is achieved through the tight fit between the plug and the body, sometimes enhanced with lubricants or sealants.
Applications:
- Gas and Air Systems: Bronze plug cocks are often used in gas and air systems due to their ability to provide a tight shut-off and ease of operation.
- Plumbing and Heating: These valves regulate water flow in various applications and are used extensively in residential and commercial plumbing systems.
- Marine Applications: The corrosion resistance of bronze makes it suitable for marine applications, controlling various shipboard systems.
Bronze Plug Valves
Bronze plug valves are used in more varied and demanding applications compared to plug cocks. They are designed to handle higher pressures and more complex flow control scenarios.
Design and Functionality:
- Design: Similar to plug cocks, plug valves feature a rotating plug but are often equipped with more sophisticated sealing mechanisms and can include multi-port configurations.
- Multi-Port Configurations: These allow for directional flow control, making them versatile components in process systems.
Applications:
- Chemical Processing: Bronze plug valves are suitable for specific chemical applications where non-corrosive fluids are processed.
- Water and Wastewater Treatment: They are used for handling water and other liquids in treatment facilities, benefiting from bronze’s resistance to corrosion.
- Fire Protection Systems: Bronze plug valves are also used in sprinkler systems and other fire protection applications due to their reliability and durability.
Maintenance and Longevity
Maintaining bronze plug cocks and plug valves involves regular inspection and lubrication to ensure that the plug operates smoothly within the valve body. Despite their robust nature, these valves can be susceptible to issues such as:
- Galling: Friction between the plug and the body can cause wear over time, mainly if the valve is not adequately lubricated.
- Corrosion: Although bronze is corrosion-resistant, it is not immune, especially under specific chemical exposures or extreme environmental conditions.
To maximise the lifespan and performance of bronze plug valves and cocks, it’s essential to follow manufacturer guidelines for maintenance and operation. Additionally, understanding the specific environmental and fluid characteristics where these valves are employed will aid in selecting the appropriate type and design of the valve.
Conclusion
Bronze plug cocks and plug valves represent a vital category of valve technologies used across a variety of industries. Their selection over other materials like stainless steel or PVC depends on factors such as corrosion resistance, temperature and pressure conditions, cost, and specific application needs. The durability and reliability of bronze make it an excellent choice for many traditional and specialised applications, offering a balanced solution between performance and cost.
