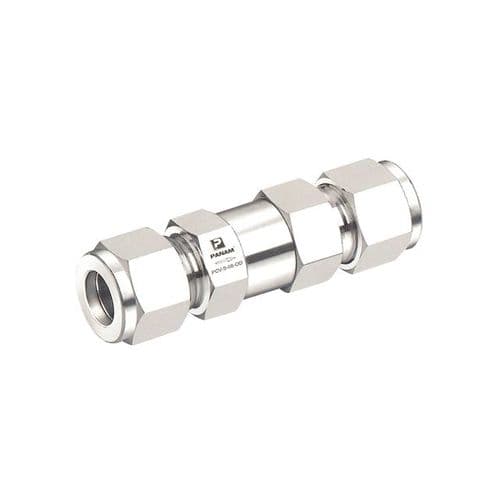

Stainless Steel Check Valve – Compression Ends (Imperial)

A compact and corrosion‑resistant check valve option for smaller‑bore piping systems. This stainless steel model features compression (ferrule) ends in imperial sizing, designed for quick integration into instrumentation, branch lines or OEM assemblies.

Technical Data:

• Body & Disc Material: Stainless steel (typically 316 / CF8M) for excellent performance with aggressive fluids or hygienic systems.

• Seat & Disk: Stainless Steel Spring & Disc, Buna N Seat

• Connection Style: Compression‑end/ferrule fittings sized in imperial units (¼″, ⅜″, ½″, etc) offering thread‑free installation.

• Pressure/Temperature: Pressure PN16 (~16 bar) in smaller sizes; temperature typically -34 °C to +135 °C

• Mechanism: Internal spring or gravity‑assisted disc closure to prevent back‑flow quickly when forward pressure drops.

• Installation Orientation: Compatible with horizontal or vertical install (as specified), with flow direction arrow on body.

Highlights:

• Small footprint solution for systems where space is limited.

• Stainless steel construction ensures corrosion resistance and long service in harsh fluids.

• Compression ends allow seamless integration into tubing or pipework without welding or flanges.

Typical Applications:
Instrumentation tubing, chemical dosing lines, small branch service in process plants, compact OEM equipment where compact non‑return protection is needed.
