Stainless Steel Spring Check Valve Wafer Pattern

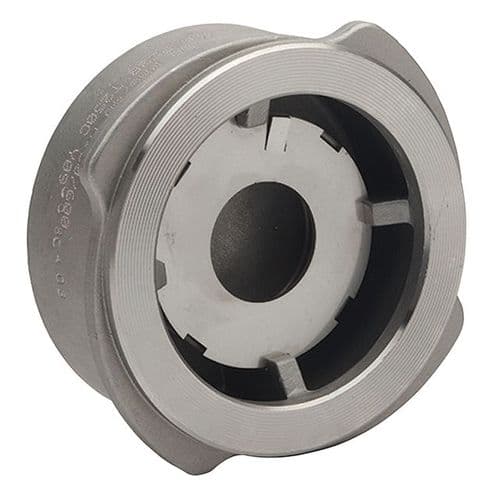

Stainless Steel Spring Check Valve – Wafer Pattern

This stainless steel wafer-pattern spring check valve offers reliable, one-way flow control in a compact and corrosion-resistant form. Its stainless steel construction makes it ideal for demanding environments, while the wafer design allows for easy installation between flanges.

Technical Data:

• Material: Full stainless steel body, disc, and spring ( 316 grade )

• Design: Wafer pattern for compact, flange-to-flange installation

• Mounting: To suit flanges PN6/10/16/25/40 ANSI 150 & ANSI 300 ½" to 3", PN10/16/25/40 ANSI 150 & ANSI 300 4"

• Pressure Rating: PN52 ( 52 bar )

• Temperature Range: Approx. –10 °C to +100 °C (higher possible depending on application)

• Sizes Available: Typically DN15 to DN100

Key Features:

• Spring-assisted closure to prevent backflow and reduce water hammer

• Minimal installation space required

• Full bore flow path to minimize pressure loss

Applications:
Used in HVAC, water treatment, marine, and chemical systems where dependable non-return functionality is essential.
