Steam Traps, Air Eliminators & Vacuum Breakers
Specific devices ensure efficiency, safety, and longevity in industrial and residential systems. Steam traps, air eliminators, and vacuum breakers play unique roles in different plumbing and heating systems. Understanding these devices and their functions can significantly impact the maintenance and performance of various systems.
Steam Traps
Steam traps are automatic valves that filter out condensate (i.e., condensed steam) and non-condensable gases, such as air, without letting steam escape. They are essential in steam systems to ensure that steam can be used efficiently for heating or processing without energy loss.
Functionality:
Steam traps operate by automatically opening, closing, or modulating to discharge condensate and gases. Their fundamental principle is based on differences in the temperatures, specific gravities, and pressures of steam and condensate.
Types of Steam Traps:

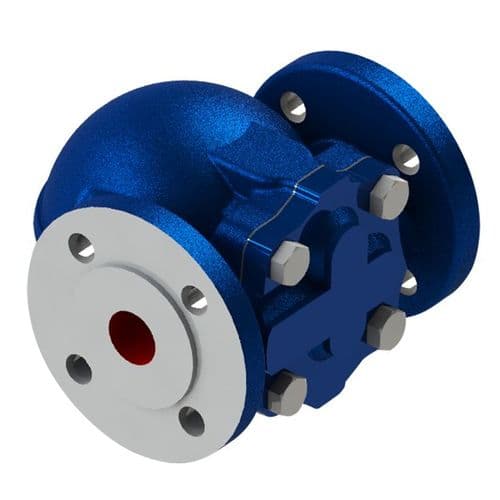

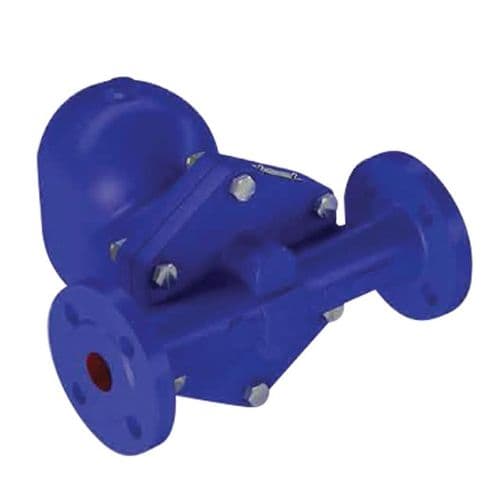

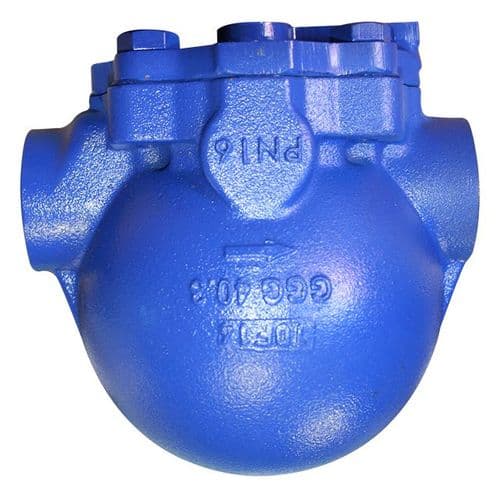

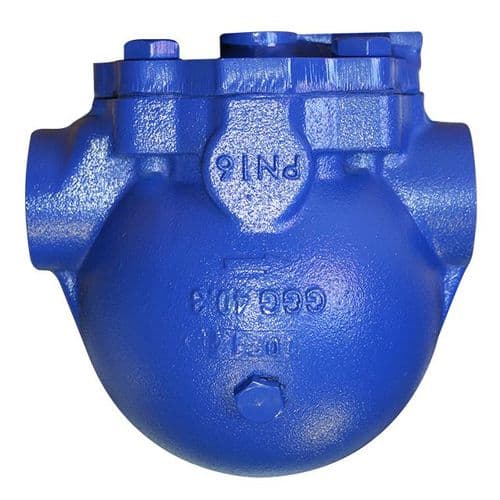

- Mechanical Traps (Float and Bucket Types): These utilise the difference in density between steam and condensate.

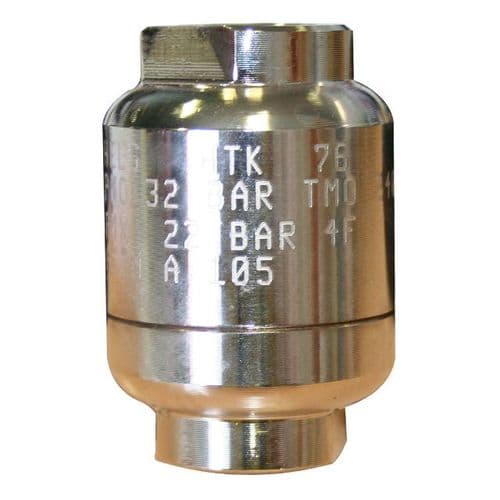

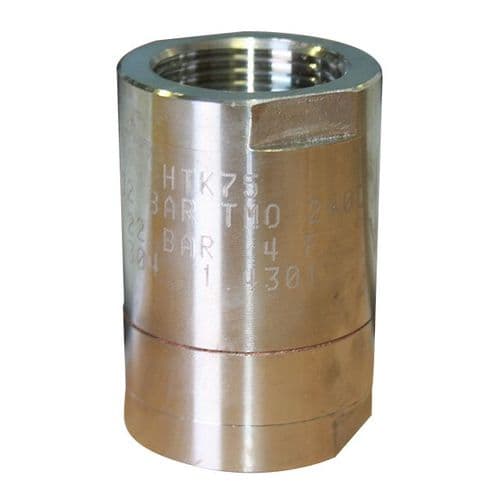

- Thermostatic Traps (Bimetallic and Bellows Types): These operate on the difference in temperature between steam and cooler non-condensable gases.

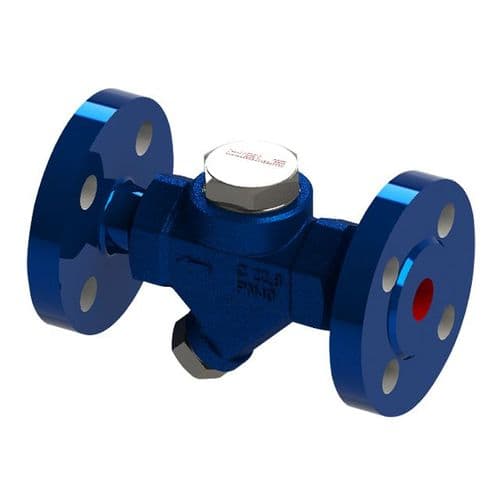

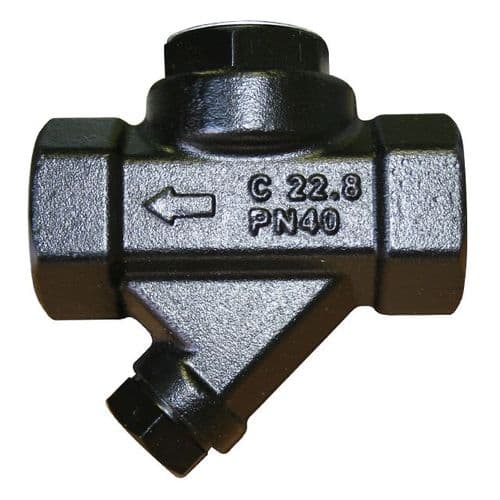

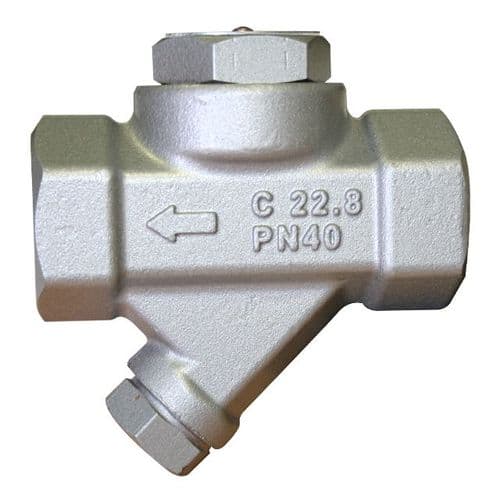

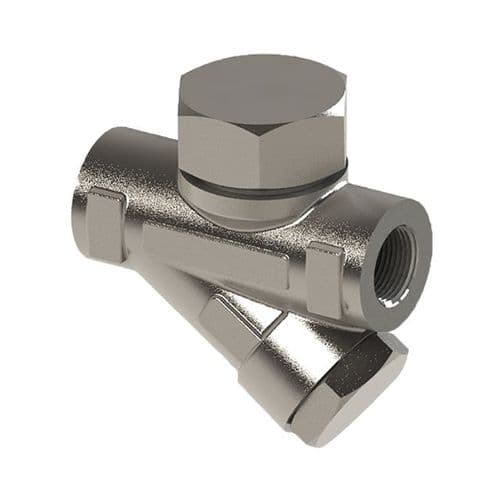

- Thermodynamic Traps: These use the dynamics of steam and condensate to operate a disc against a valve seat.
Applications:
- Heating Systems: In buildings, steam traps are used in radiator systems to ensure that only steam circulates through the radiators.
- Industrial Processes: In manufacturing, steam traps are crucial for maintaining energy efficiency and process stability in steam-using equipment.

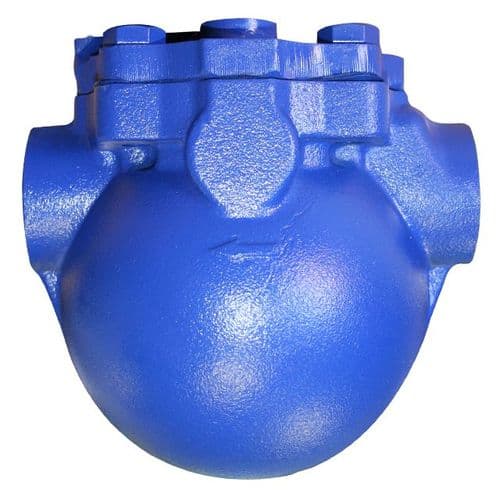

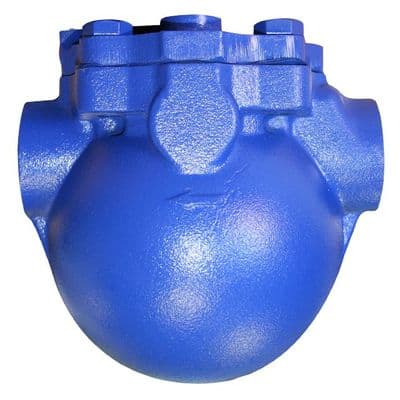

Air Eliminators
Air eliminators are designed to remove trapped air and other gases from liquid piping systems. This is crucial because trapped air can cause corrosion, increase cavitation risks, decrease system efficiency, and result in operational noise and damage.
Functionality:
Air eliminators allow air and other gases to rise naturally from the fluid and be expelled through a valve. These devices typically operate automatically to maintain efficiency and protect the system.
Types of Air Eliminators:
- Automatic Air Vents: These float-type devices release air as it collects at the top of the vent body.
- Air Scoops: These create a low-velocity area where air can accumulate and be expelled.
Applications:
- Water Heating Systems: Removing air from lines to prevent hammering and improve thermal efficiency.
- Hydronic Heating Systems: Air eliminators prevent air from blocking the free flow of the hot water or coolant.

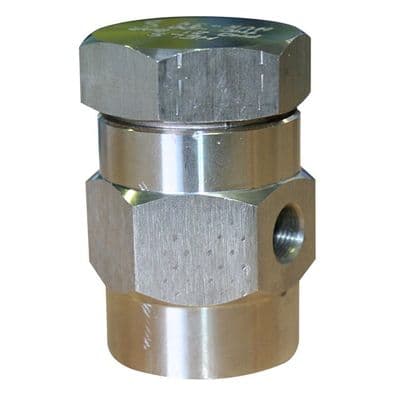

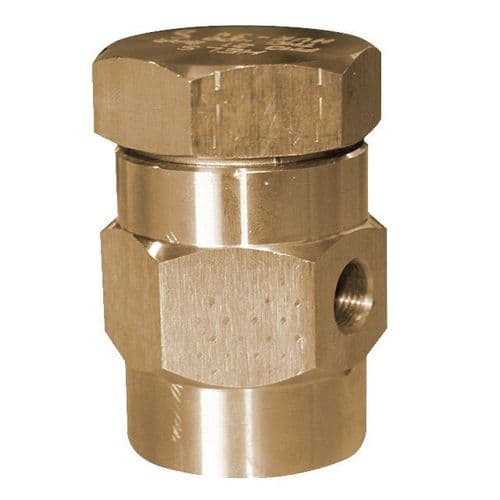

Vacuum Breakers
Vacuum breakers are safety devices designed to admit air into a system to prevent a vacuum condition that could cause the system to implode. Maintaining atmospheric pressure inside tanks and systems prevents damage and ensures system integrity.
Functionality:
Vacuum breakers open automatically when the pressure within a system drops below atmospheric pressure. They close again once the pressure equalizes, preventing contaminants from backflowing into the system.
Types of Vacuum Breakers:
- Atmospheric Vacuum Breakers: These allow air into the system but do not allow water to escape.
- Pressure Vacuum Breakers: These are used in water systems to prevent back siphonage and are typically installed at higher elevation points.
Applications:
- Plumbing Systems: Used to prevent the backflow of contaminated water into potable water systems.
- Irrigation Systems: Protect against soil contaminants entering the water system through suction.
Comparison and Considerations
Each of these devices serves a unique purpose but commonly aims to protect the system from inefficiencies or damages caused by the natural properties of fluids and gases:
- Energy Efficiency: Steam traps play a significant role in the energy efficiency of steam-based heating and processing systems by minimising steam loss.
- System Protection: Air eliminators and vacuum breakers are crucial for protecting systems from damage caused by air-related issues such as water hammer, corrosion, and implosion.
Maintenance and Longevity
Proper maintenance of these devices is crucial for their longevity and effectiveness:
- Regular Inspection: Steam traps, air eliminators, and vacuum breakers should all be inspected regularly to ensure they function correctly. This includes checking for leaks, blockages, or mechanical failures.
- Replacement and Cleaning: Depending on the system and the quality of fluids, these devices may need to be cleaned periodically or replaced to maintain optimal performance.
In conclusion, steam traps, air eliminators, and vacuum breakers contribute significantly to heating and plumbing systems' operational efficiency and safety. Their roles, while distinct, are interconnected in maintaining the balance, integrity, and efficiency of various residential and industrial systems. Understanding and maintaining these devices accordingly ensures they perform their necessary functions effectively, enhancing overall system performance and durability.
