Woltmann Water Meter Screwed BSP MID & WRAS Approved

Woltmann Water Meter – Screwed BSP – MID & WRAS Approved

This compact version of the Woltmann meter offers high flow measurement in systems that use BSP threaded connections. It’s well-suited for commercial and industrial installations with smaller bore sizes.

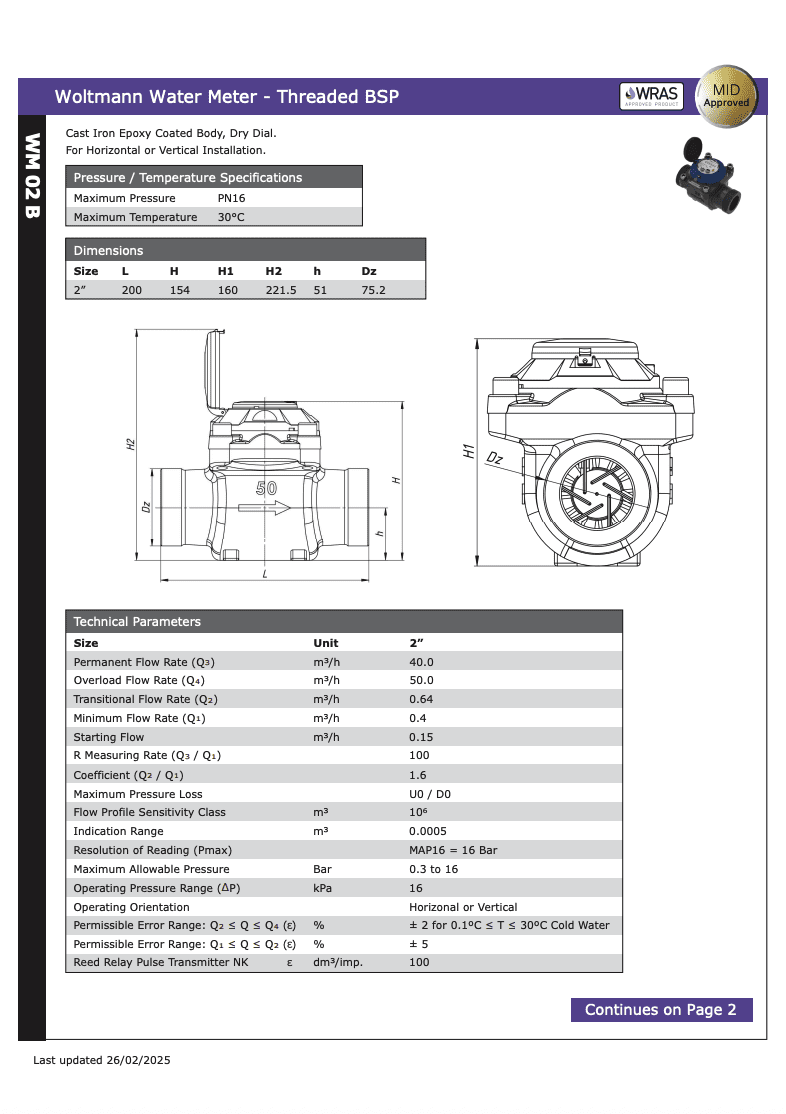

Key Technical Data:

• Connection Type: Screwed BSP

• Maximum Pressure: 16 bar

• Maximum Temperature: 30 °C

• Body Finish: Epoxy coated

• Approvals: MID & WRAS

• Register Type: Dry dial

• Orientation: Horizontal or vertical installation
