This Cast Steel Y Strainer is designed to provide reliable protection for your piping systems by effectively removing solid particles from flowing liquids and gases. Featuring a robust cast steel body and bonnet, this flanged PN40 strainer ensures long-term durability in demanding industrial environments.
- Stainless Steel Screen: Equipped with a high-quality stainless steel mesh to prevent debris from damaging downstream equipment.
- High Pressure Rating: Fully rated to PN40 standards, making it suitable for high-pressure applications.
- Wide Temperature Range: Engineered to perform consistently in extreme conditions, with a working temperature range of -20°C to 400°C.
- Variable Mesh Sizes: Precision screening with 1.0mm mesh for sizes ½" to 2", 1.25mm for 2½" and 3", and 1.6mm for 4" to 6" units.
Constructed for industrial resilience, this Y strainer is an essential component for maintaining the purity of your media and extending the lifespan of your valves and pumps.
| Body Material | Cast Steel |
|---|---|
| Bonnet Material | Cast Steel |
| Screen Material | Stainless Steel |
| Pressure Rating | PN40 |
| Temperature Range | -20°C to 400°C |
| Mesh Size (½" to 2") | 1.0mm |
| Mesh Size (2½" & 3") | 1.25mm |
| Mesh Size (4" to 6") | 1.6mm |
- Regular price
- £129.87
This Cast Steel Y Strainer is designed to provide reliable protection for your piping systems by effectively removing solid particles from flowing liquids and gases. Featuring a robust cast steel body and bonnet, this flanged PN40 strainer ensures long-term durability in demanding industrial environments.
- Stainless Steel Screen: Equipped with a high-quality stainless steel mesh to prevent debris from damaging downstream equipment.
- High Pressure Rating: Fully rated to PN40 standards, making it suitable for high-pressure applications.
- Wide Temperature Range: Engineered to perform consistently in extreme conditions, with a working temperature range of -20°C to 400°C.
- Variable Mesh Sizes: Precision screening with 1.0mm mesh for sizes ½" to 2", 1.25mm for 2½" and 3", and 1.6mm for 4" to 6" units.
Constructed for industrial resilience, this Y strainer is an essential component for maintaining the purity of your media and extending the lifespan of your valves and pumps.
| Body Material | Cast Steel |
|---|---|
| Bonnet Material | Cast Steel |
| Screen Material | Stainless Steel |
| Pressure Rating | PN40 |
| Temperature Range | -20°C to 400°C |
| Mesh Size (½" to 2") | 1.0mm |
| Mesh Size (2½" & 3") | 1.25mm |
| Mesh Size (4" to 6") | 1.6mm |
- Regular price
- £129.87
This Cast Steel Y Strainer is designed to provide reliable protection for your piping systems by effectively removing solid particles from flowing liquids and gases. Featuring a robust cast steel body and bonnet, this flanged PN40 strainer ensures long-term durability in demanding industrial environments.
- Stainless Steel Screen: Equipped with a high-quality stainless steel mesh to prevent debris from damaging downstream equipment.
- High Pressure Rating: Fully rated to PN40 standards, making it suitable for high-pressure applications.
- Wide Temperature Range: Engineered to perform consistently in extreme conditions, with a working temperature range of -20°C to 400°C.
- Variable Mesh Sizes: Precision screening with 1.0mm mesh for sizes ½" to 2", 1.25mm for 2½" and 3", and 1.6mm for 4" to 6" units.
Constructed for industrial resilience, this Y strainer is an essential component for maintaining the purity of your media and extending the lifespan of your valves and pumps.
| Body Material | Cast Steel |
|---|---|
| Bonnet Material | Cast Steel |
| Screen Material | Stainless Steel |
| Pressure Rating | PN40 |
| Temperature Range | -20°C to 400°C |
| Mesh Size (½" to 2") | 1.0mm |
| Mesh Size (2½" & 3") | 1.25mm |
| Mesh Size (4" to 6") | 1.6mm |
-
Vendor: Pipetech
Brass Y-type Strainer - PN16 WRAS Approved BSPP
Regular price From £5.24Excl. tax: £4.33 -
Vendor: Pipetech
Bronze Y Strainer PN16 Screwed BSPP Stainless Steel Screen
Regular price From £13.62Excl. tax: £11.26 -
Vendor: Pipetech
CR Brass Y Type Strainer - Compression Ends Stainless Steel Mesh
Regular price From £14.67Excl. tax: £12.12 -
Vendor: Pipetech
Brass Y-Type Strainer with Drain Valve - PN16 BSPP Threaded
Regular price From £18.86Excl. tax: £15.59
Frequently Bought Together
-
Vendor: Pipetech

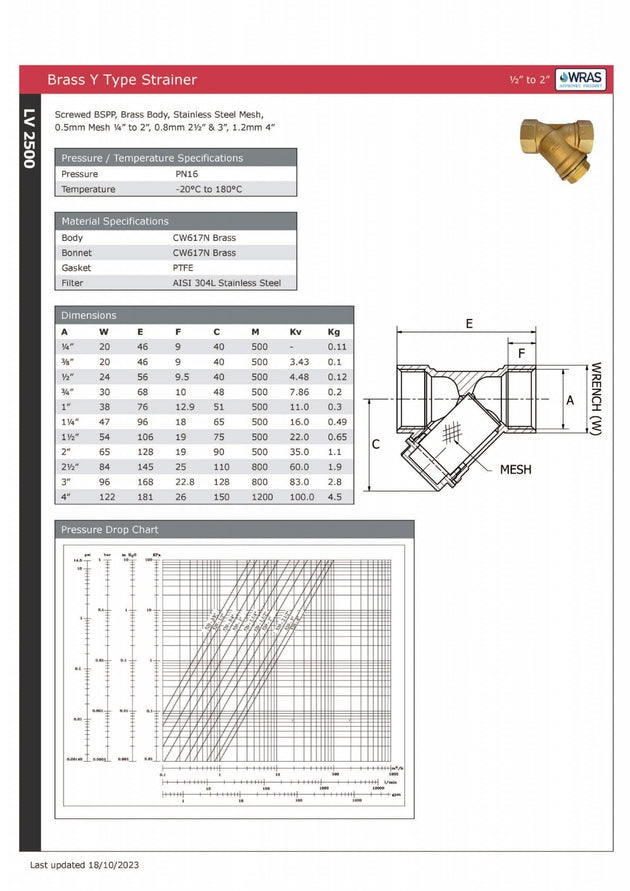

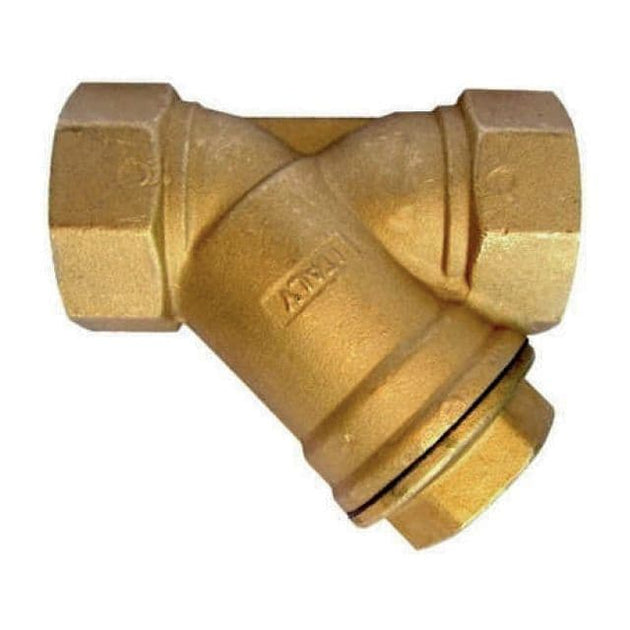

Brass Y-type Strainer - PN16 WRAS Approved BSPP
Regular price From £5.24 -
Vendor: Pipetech

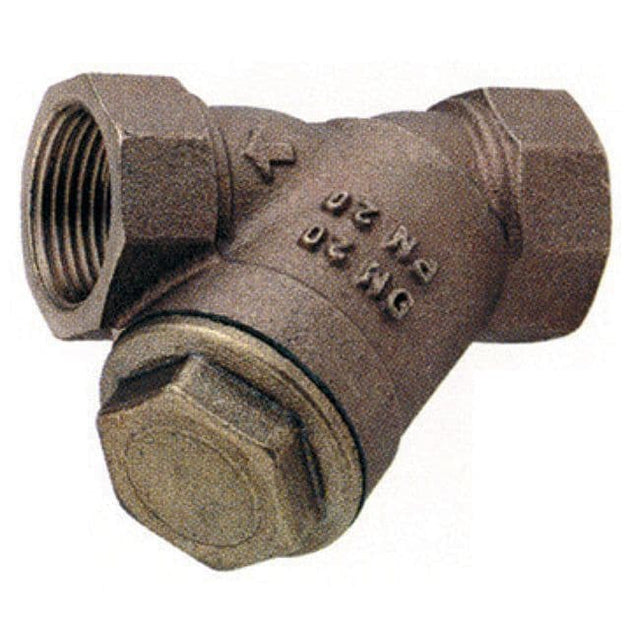

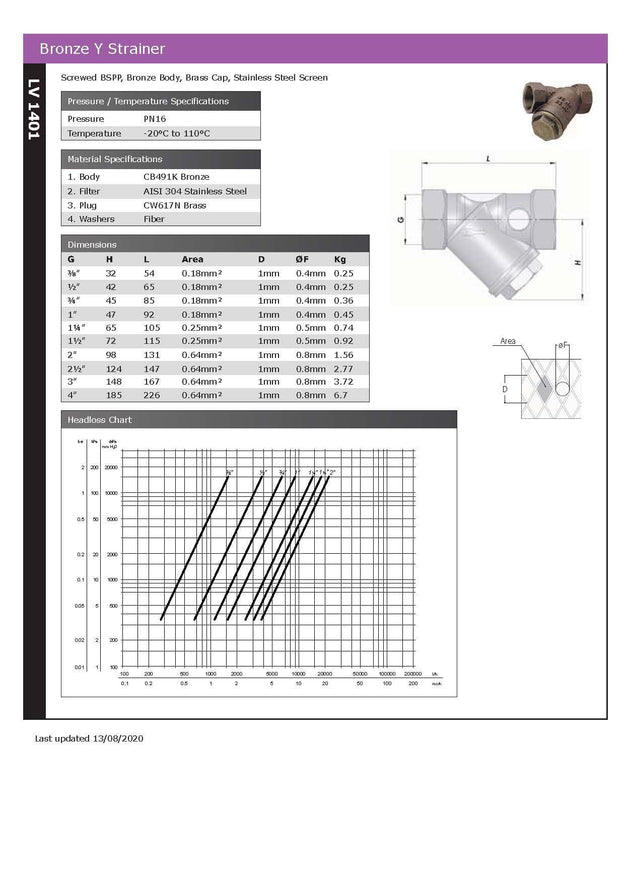

Bronze Y Strainer PN16 Screwed BSPP Stainless Steel Screen
Regular price From £13.62 -
Vendor: Pipetech

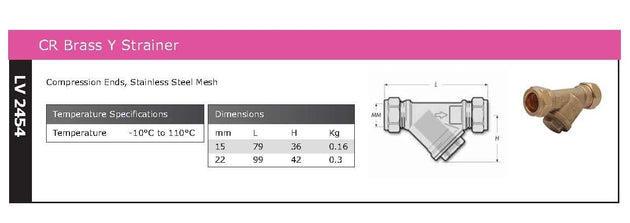

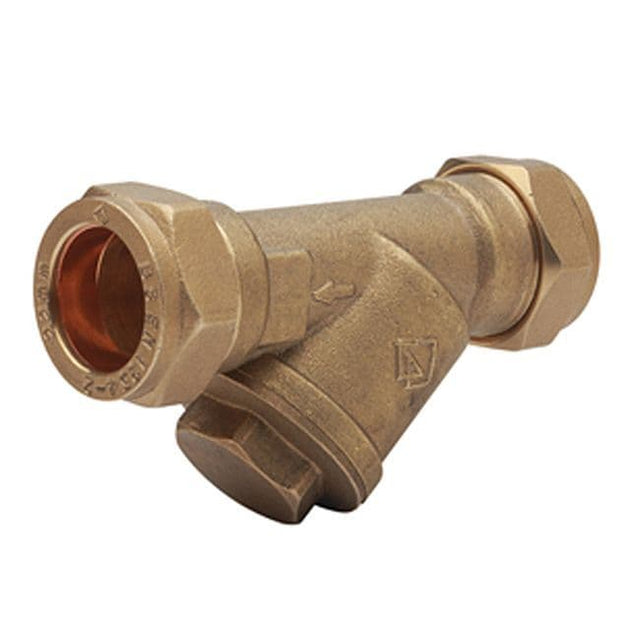

CR Brass Y Type Strainer - Compression Ends Stainless Steel Mesh
Regular price From £14.67 -
Vendor: Pipetech

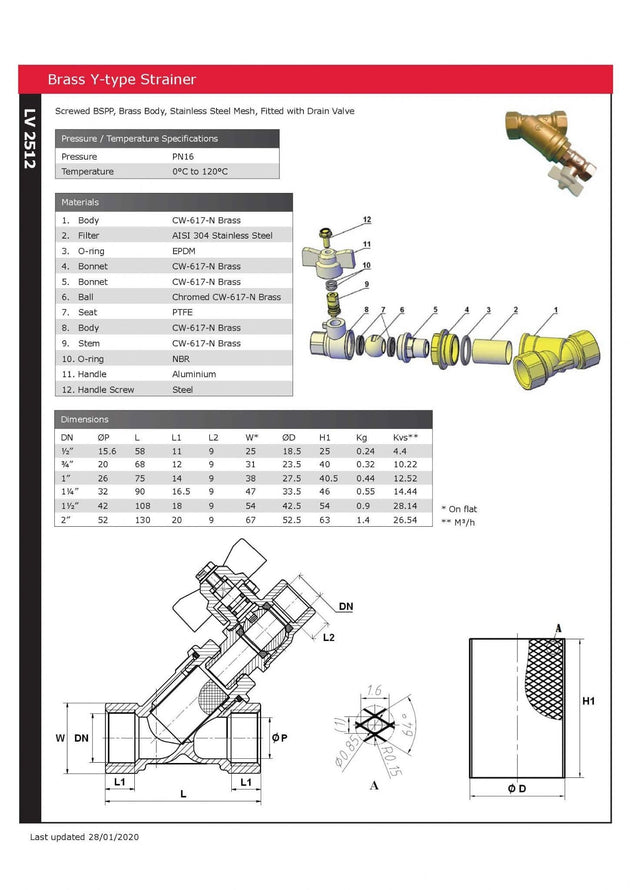

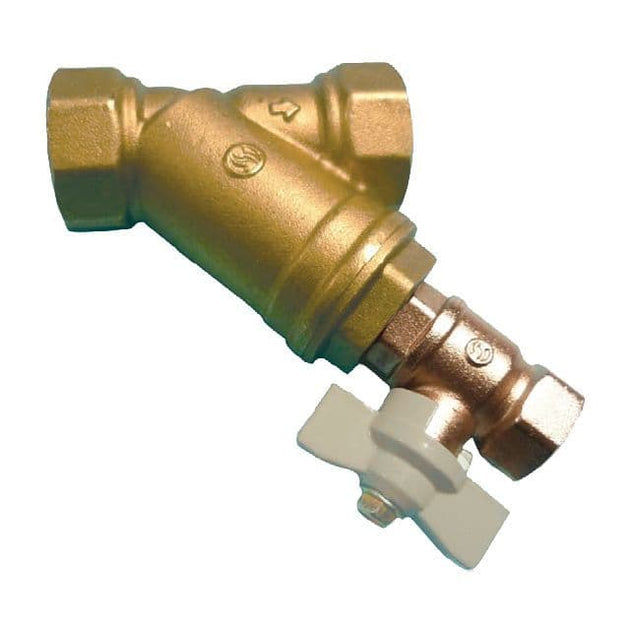

Brass Y-Type Strainer with Drain Valve - PN16 BSPP Threaded
