Gate Valves

Gate valves are a fundamental type of valve extensively used across various industries to control the flow of liquids, gases, and slurries within a pipeline. These valves are distinguished by a gate or wedge that moves perpendicularly to the flow direction to start or stop the fluid flow. Gate valves are made from various materials, including brass, bronze, iron, and steel, each offering distinct properties and advantages suited for different operating conditions and applications. This overview explores the characteristics, benefits, and typical uses of gate valves made from these materials.

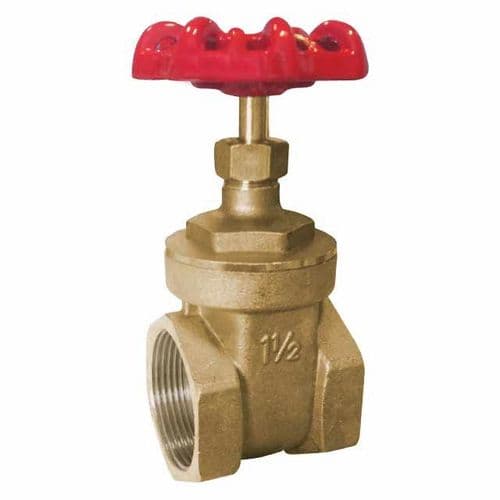

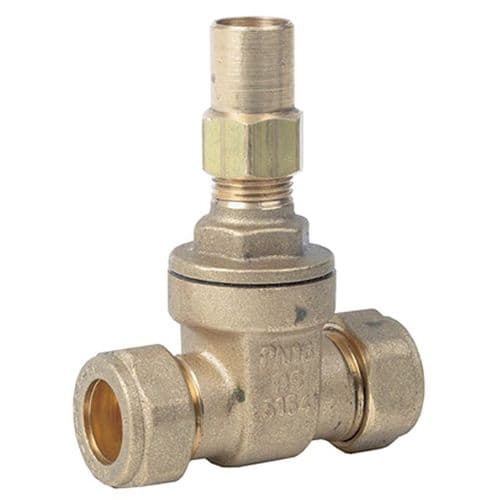

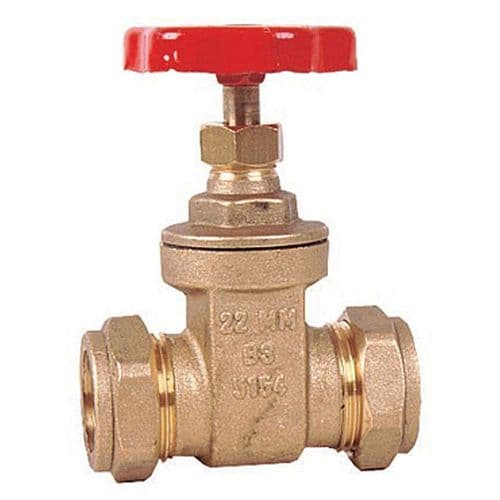

Brass Gate Valves

Brass is an alloy primarily composed of copper and zinc. It is known for its excellent corrosion resistance and good thermal conductivity. Brass is particularly favoured in water applications, such as plumbing and heating systems.

Advantages:

• Corrosion Resistance: Brass is corrosion-resistant, making it ideal for water-based applications where longevity and reliability are crucial.
• Machinability: Brass is easily machinable and allows for the precise production of components, which is essential for the acceptable tolerances required in valve mechanisms.
• Cost-Effectiveness: Brass valves are generally more affordable than other metal valves, offering a cost-effective solution for many applications.

Applications:

• Water supply systems
• Central heating systems
• Low-pressure air systems

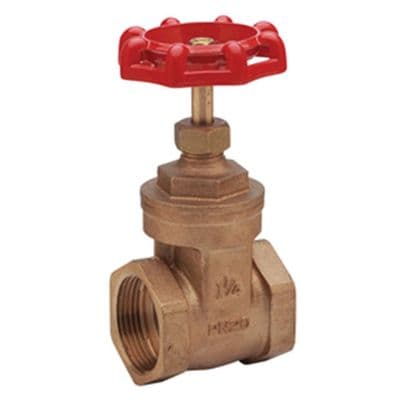

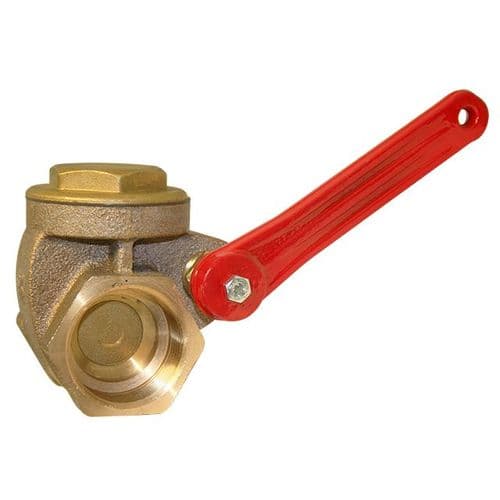

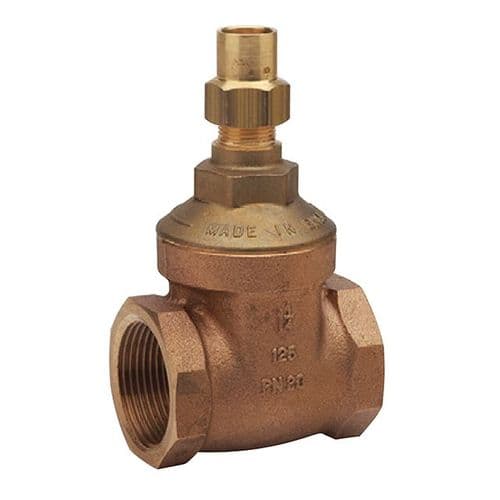

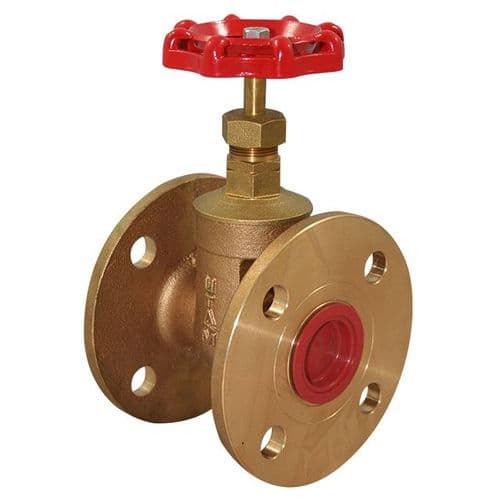

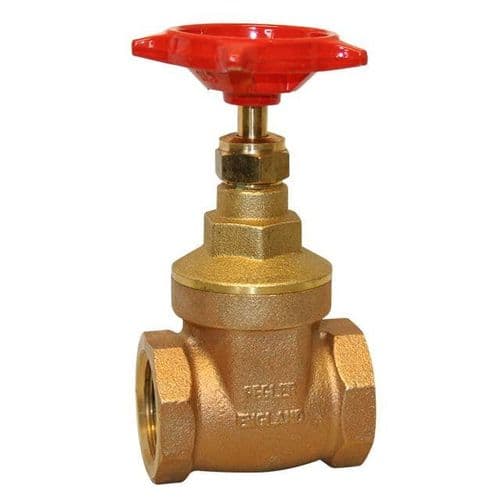

Bronze Gate Valves

Bronze is an alloy of copper and tin, sometimes including elements like aluminium, manganese, nickel, or zinc, which enhances the alloy’s strength and corrosion resistance. It is heavier and stronger than brass and is extensively used in more demanding applications, such as shipbuilding and industrial processes.

Advantages:

• Superior Corrosion Resistance: Bronze is highly resistant to corrosion, particularly to seawater, making it ideal for marine and industrial applications.
• Durability: The robust nature of bronze makes it suitable for high-pressure applications and environments with elevated temperatures.
• Conductivity: Good thermal conductivity makes it appropriate for temperature-sensitive applications.

Applications:

• Marine environments
• Industrial processes involving corrosive fluids
• High-temperature steam applications

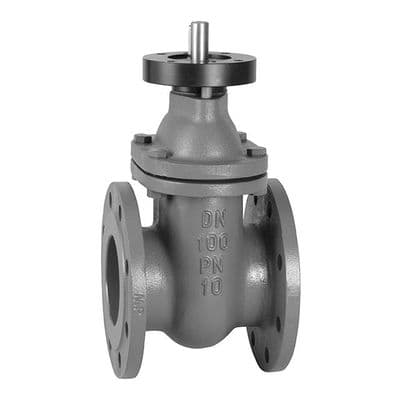

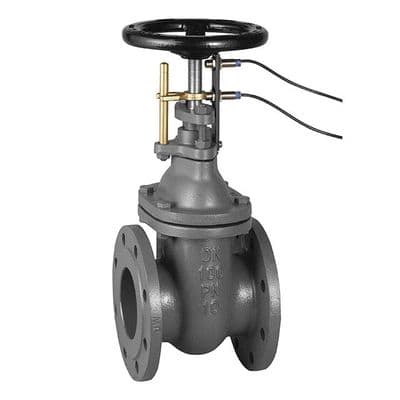

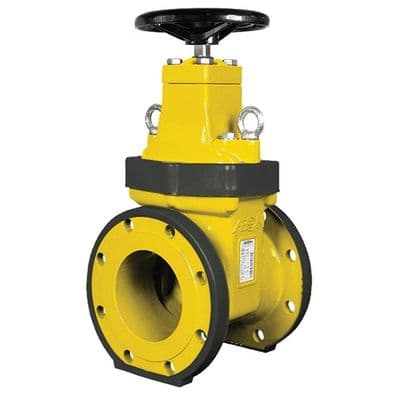

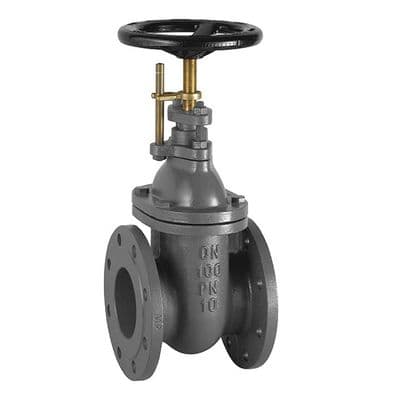

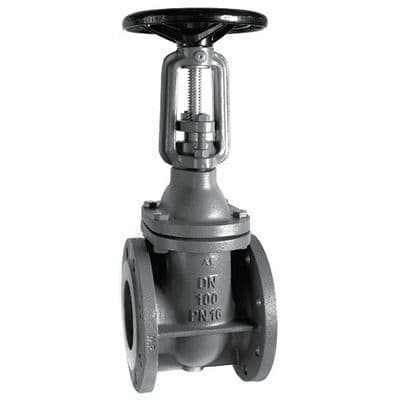

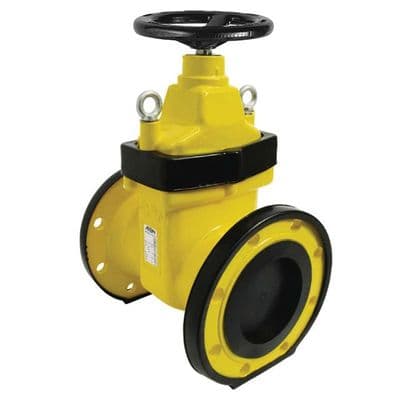

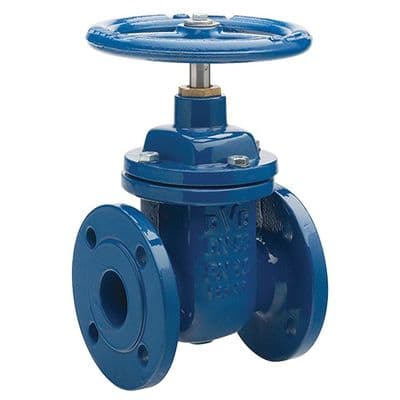

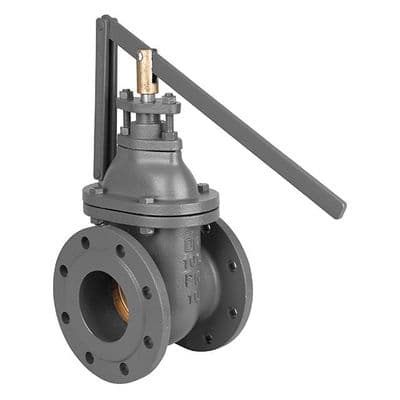

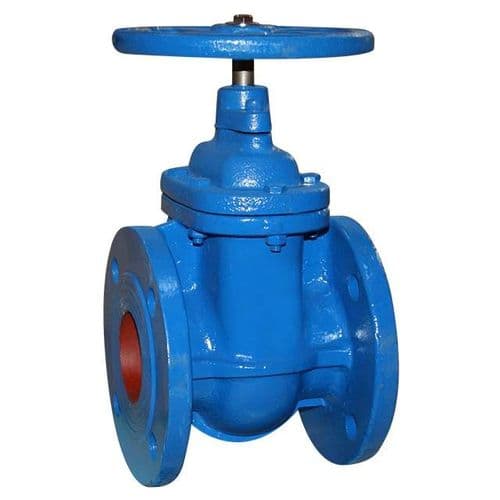

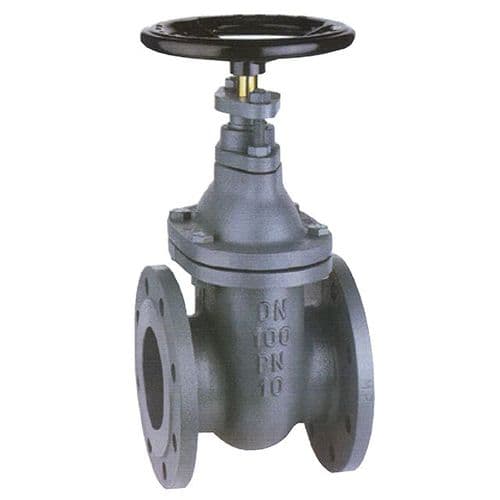

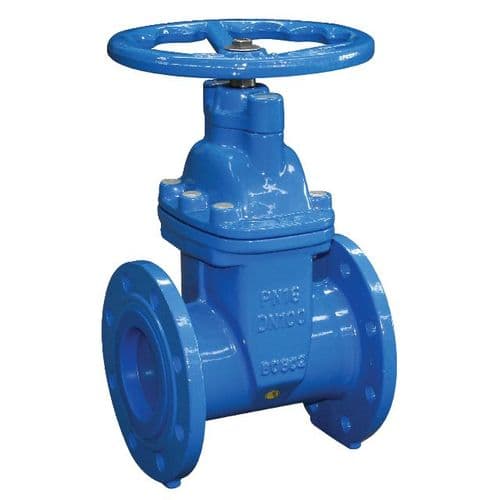

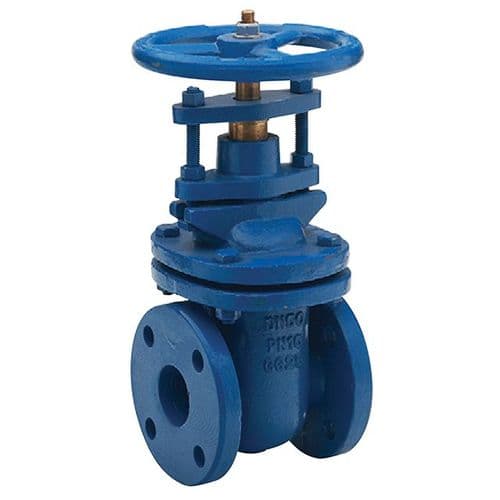

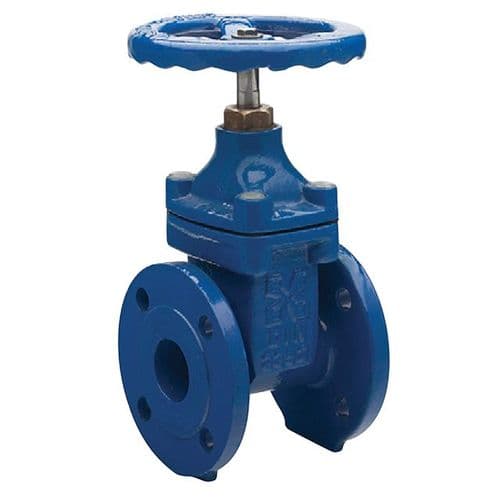

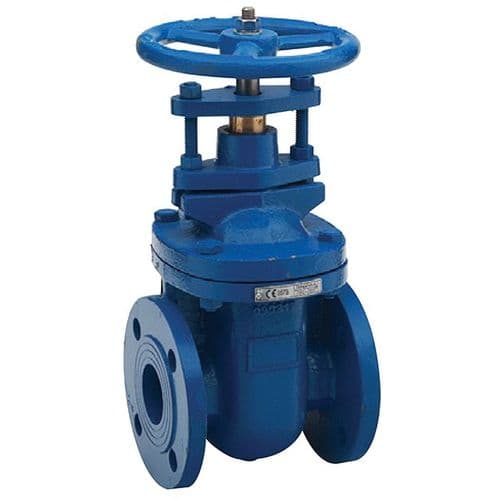

Iron Gate Valves

Iron, particularly cast iron, is commonly used in gate valves for large-scale industrial applications and municipal water systems due to its durability, cost-effectiveness, and capability to withstand high pressures.

Advantages:

• Cost-Effectiveness: Iron is one of the most economical options for manufacturing large valves in extensive pipelines.
• High Pressure and Temperature Tolerance: Iron’s strength enables it to operate under high pressures and temperatures, which is crucial for municipal and industrial applications.
• Durability: Iron valves are known for their robustness, making them suitable for demanding applications.

Applications:

• Municipal water supply and sewage systems
• Industrial applications with large-diameter pipelines
• Fire protection systems

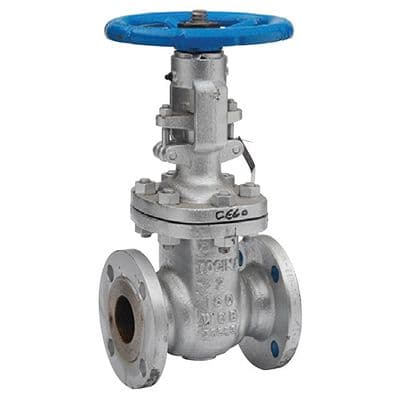

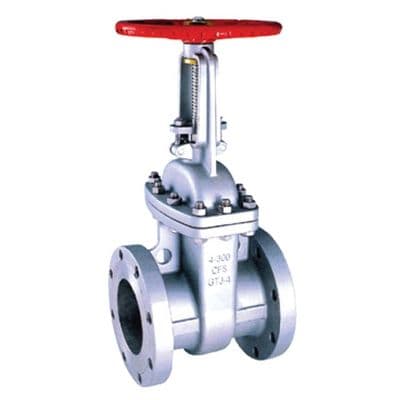

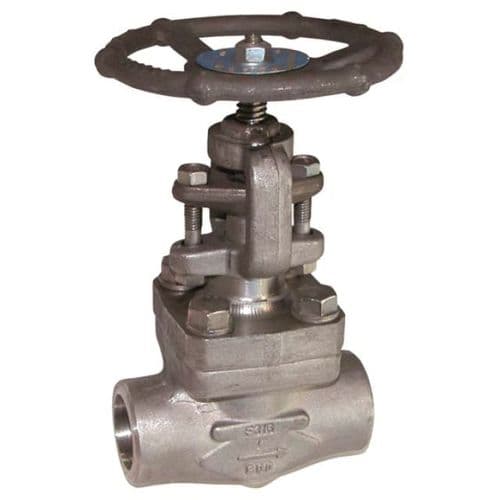

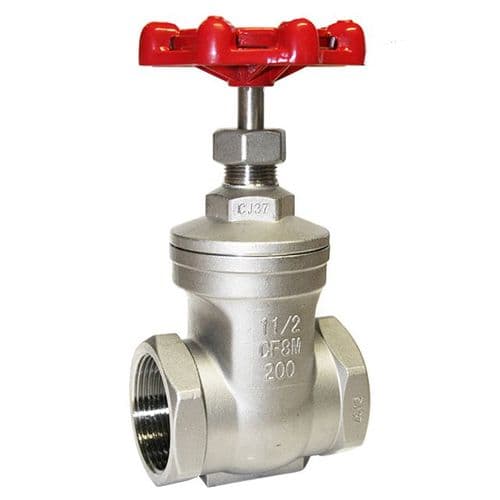

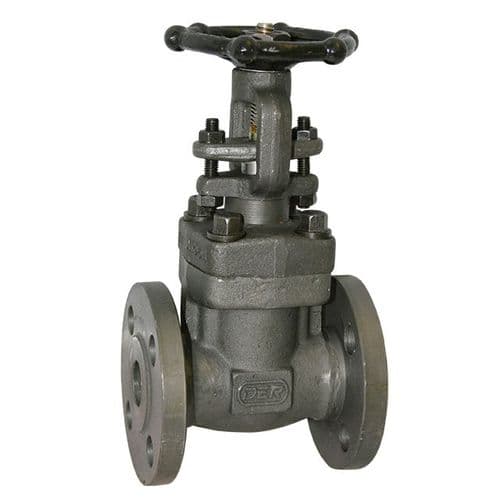

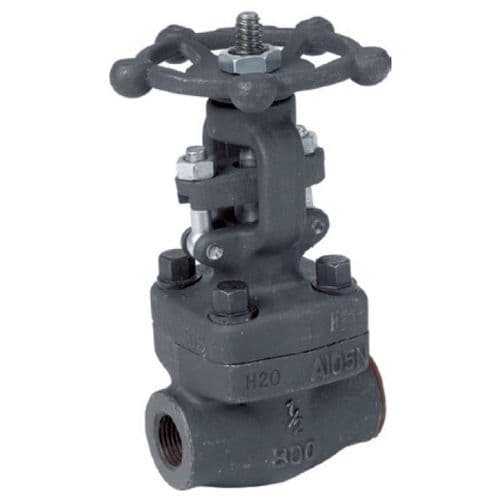

Steel Gate Valves

Steel, mainly stainless steel, is recognised for its strength, durability, and exceptional resistance to extreme temperatures and corrosive environments. Stainless steel gate valves are commonly used in demanding applications that require a high degree of cleanliness and corrosion resistance.

Advantages:

• High Strength and Durability: Steel can handle high pressures and temperatures, making it ideal for critical industrial environments.
• Corrosion Resistance: Stainless steel offers excellent resistance to various chemicals and does not rust easily, which is crucial in harsh environments.
• Hygienic Properties: Stainless steel's non-porous nature makes it suitable for sanitary applications where preventing contamination is essential.

Applications:

• Petrochemical industries
• Pharmaceutical and food processing industries
• High-temperature and high-pressure environments

Comparative Overview

Each material offers specific benefits that dictate its suitability for particular applications:

• Brass is best suited for general, low to medium-pressure applications, especially where water is the primary medium. It provides corrosion resistance and cost-effectiveness for residential and commercial uses.
• Bronze excels in harsher environments, such as marine applications or where higher pressure and temperature resistance are needed.
• Iron is ideal for large, cost-sensitive applications such as municipal water systems, where the size and robustness of the valve are prioritised over corrosion resistance.
• Steel is preferred in environments that require high strength, durability, and corrosion resistance, especially in clean or sterile processes due to its hygienic properties.

Conclusion

Selecting the suitable material for a gate valve involves considering the application's specific needs, including the type of fluid, pressure, temperature, and environmental conditions. Brass, bronze, iron, and steel each offer distinct advantages, making them suitable for various industrial, commercial, and residential applications. Understanding these materials’ properties allows engineers and technicians to optimise system performance while ensuring operational efficiency and safety.
