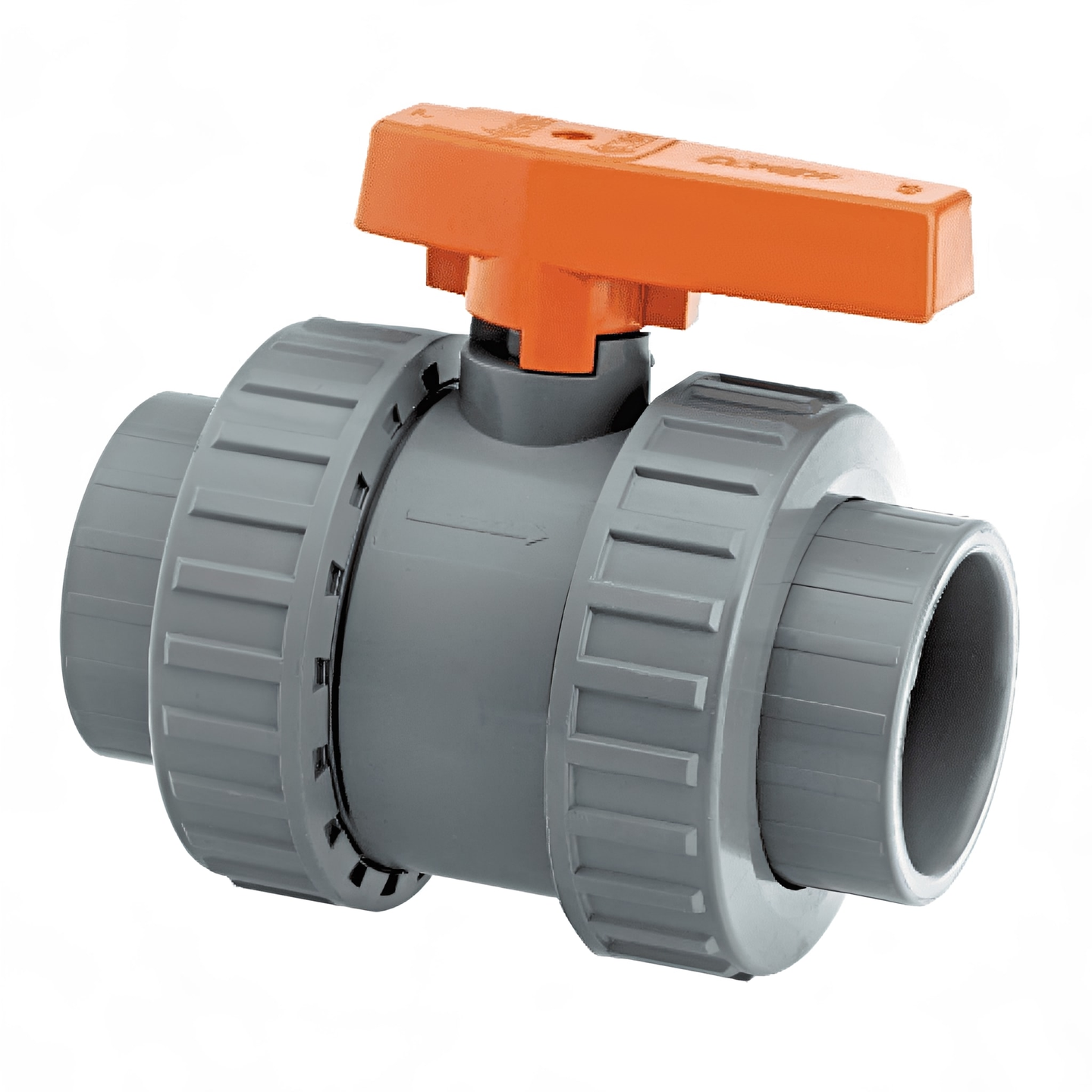

• ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends with orange handle and gray body

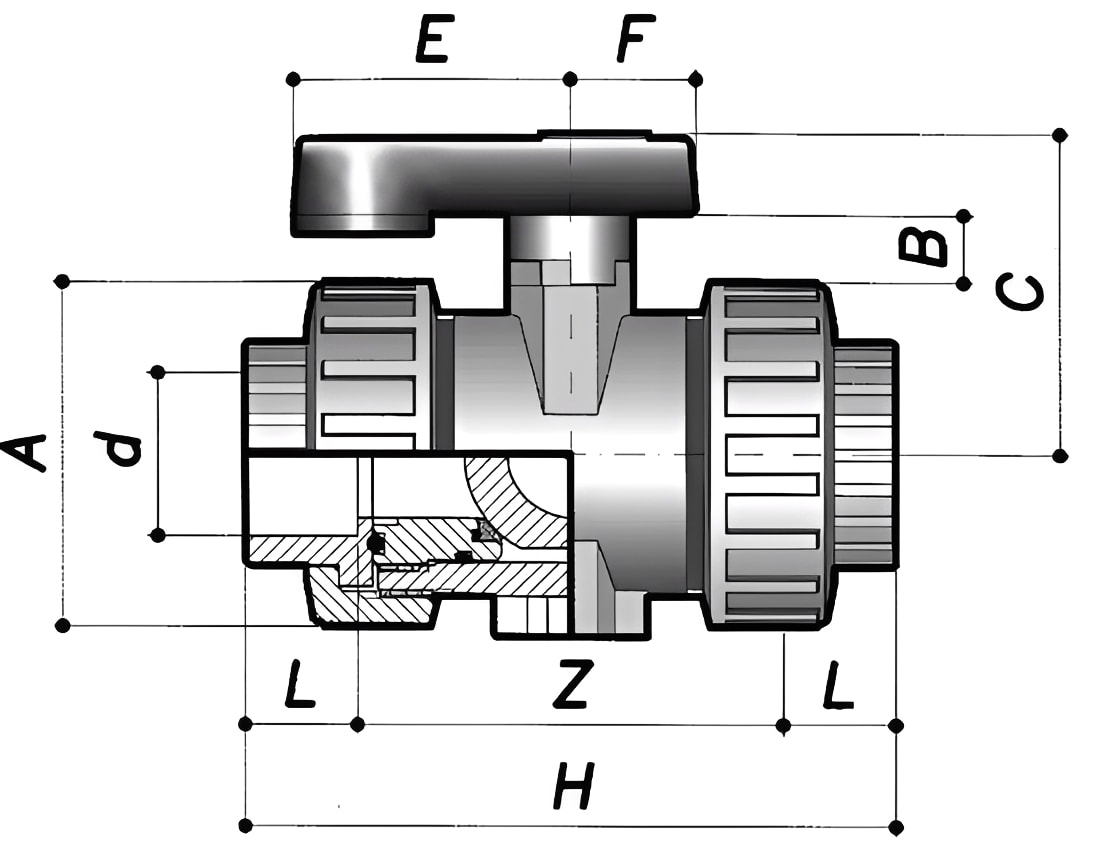

  • ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends cross-sectional illustration with dimensions.

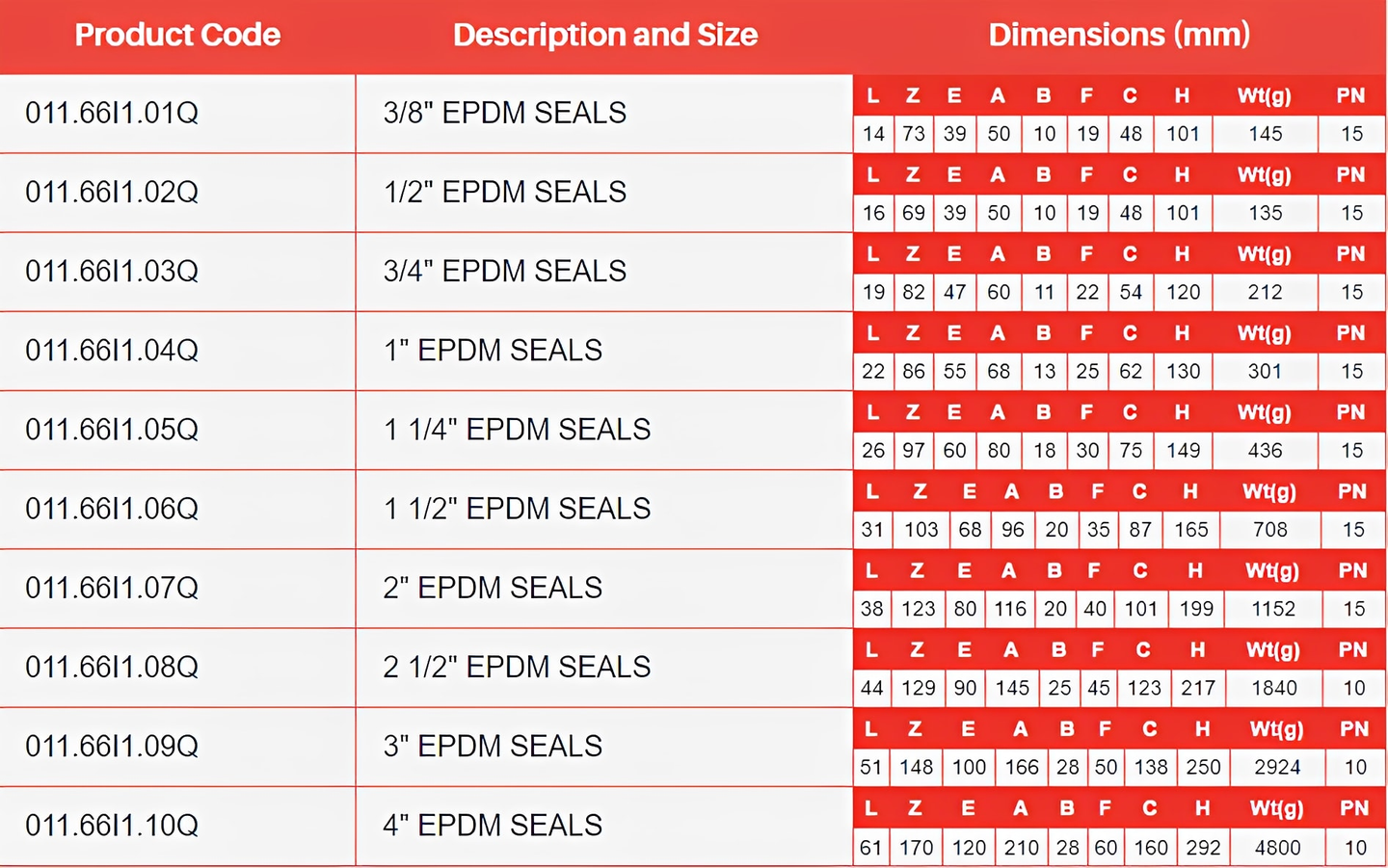

  • ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends specifications and dimensions chart
ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends with orange handle and gray body
ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends cross-sectional illustration with dimensions.
ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends specifications and dimensions chart

Comer

ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends

SKU 011.66I1.02Q-WRAS
£35.31
Excl. tax:  £29.43
£35.31
Excl. tax:  £29.43
Size:
ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends with orange handle and gray body ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends cross-sectional illustration with dimensions. ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends specifications and dimensions chart
ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends with orange handle and gray body ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends cross-sectional illustration with dimensions. ABS Industrial Ball Valve - Double Union EPDM Seals Plain Ends specifications and dimensions chart

The ABS Industrial Ball Valve provides reliable flow control for demanding industrial systems, featuring a double union design for easy installation and maintenance. This high-performance valve is engineered with EPDM seals and a PTFE seat to ensure a secure, leak-free seal during manual operation.

  • Temperature Resistance: Operates effectively within a temperature range of -40 to +70 degrees Celsius.
  • Durability: High chemical and impact resistance makes it suitable for harsh industrial environments.
  • Optimised Flow: Features a smooth internal bore to reduce friction and prevent sediment build-up.
  • Safe for Potable Water: Fully WRAS approved and suitable for drinking water applications.
  • Food Grade Standards: Complies with the British Industrial Biological Research Association Code of Practice for Food Usage 45/5.

Designed with plain ends for secure solvent cement welding, this imperial-sized ball valve is an essential component for professional piping installations.

Material ABS
Seal Material EPDM
Seat Material PTFE
Connection Type Double Union Plain Ends
System of Measurement Inch / Imperial
Temperature Range -40 to +70 Degrees
Approvals WRAS, BIBRA 45/5
