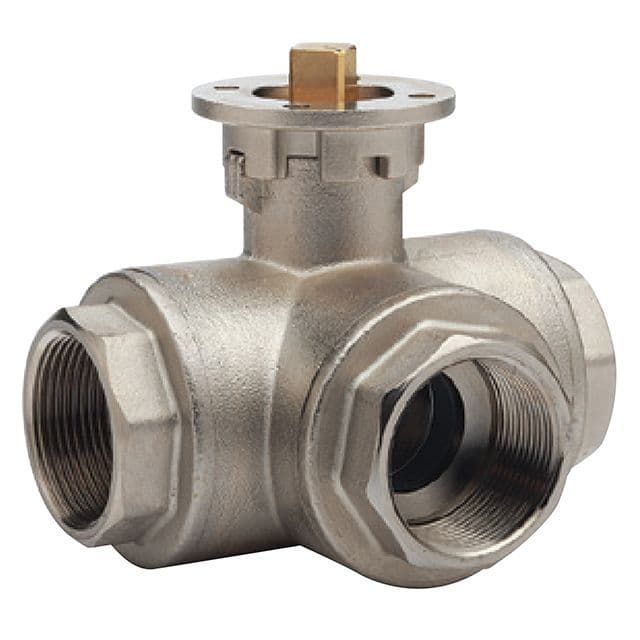

Brass Ball Valve 3-Way T-Port with ISO Top
The 3-Way Brass Ball Valve with T-Port and ISO Top combines flexible flow routing with actuator-ready automation. Designed for systems requiring future automation, this valve is fitted with a standard ISO 5211 mounting pad and a T-port internal bore for full diverting or mixing control.

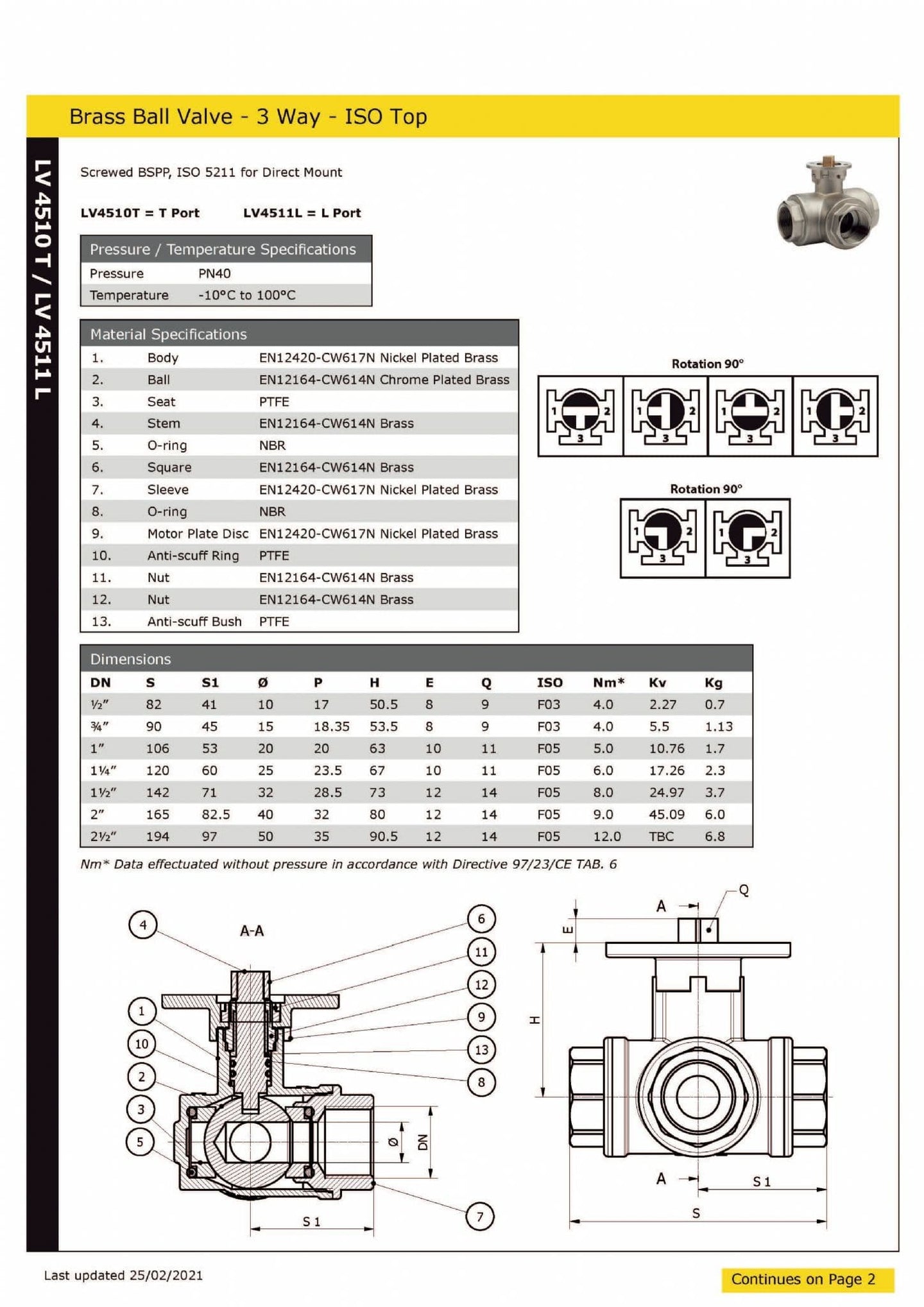

Technical Data:
- Connection Type: BSPP female threads
- Mounting Pad: ISO 5211 (F05 or similar)
- Body Material: Nickel-plated brass
- Flow Type: Full-bore, T-port
- Temperature Range: 10°C to +100°C
- Pressure Rating: Up to PN40 (size-dependent)
Features:
- T-port design allows various flow combinations
- ISO top makes it actuator-ready
- Smooth manual control with lever
- Long-lasting, corrosion-resistant body
Applications: Automated mixing, multi-zone control panels, remote valve systems
Brass Ball Valve 3-Way T-Port with ISO Top
The 3-Way Brass Ball Valve with T-Port and ISO Top combines flexible flow routing with actuator-ready automation. Designed for systems requiring future automation, this valve is fitted with a standard ISO 5211 mounting pad and a T-port internal bore for full diverting or mixing control.
Technical Data:
- Connection Type: BSPP female threads
- Mounting Pad: ISO 5211 (F05 or similar)
- Body Material: Nickel-plated brass
- Flow Type: Full-bore, T-port
- Temperature Range: 10°C to +100°C
- Pressure Rating: Up to PN40 (size-dependent)
Features:
- T-port design allows various flow combinations
- ISO top makes it actuator-ready
- Smooth manual control with lever
- Long-lasting, corrosion-resistant body
Applications: Automated mixing, multi-zone control panels, remote valve systems
- Regular price
- £48.18
