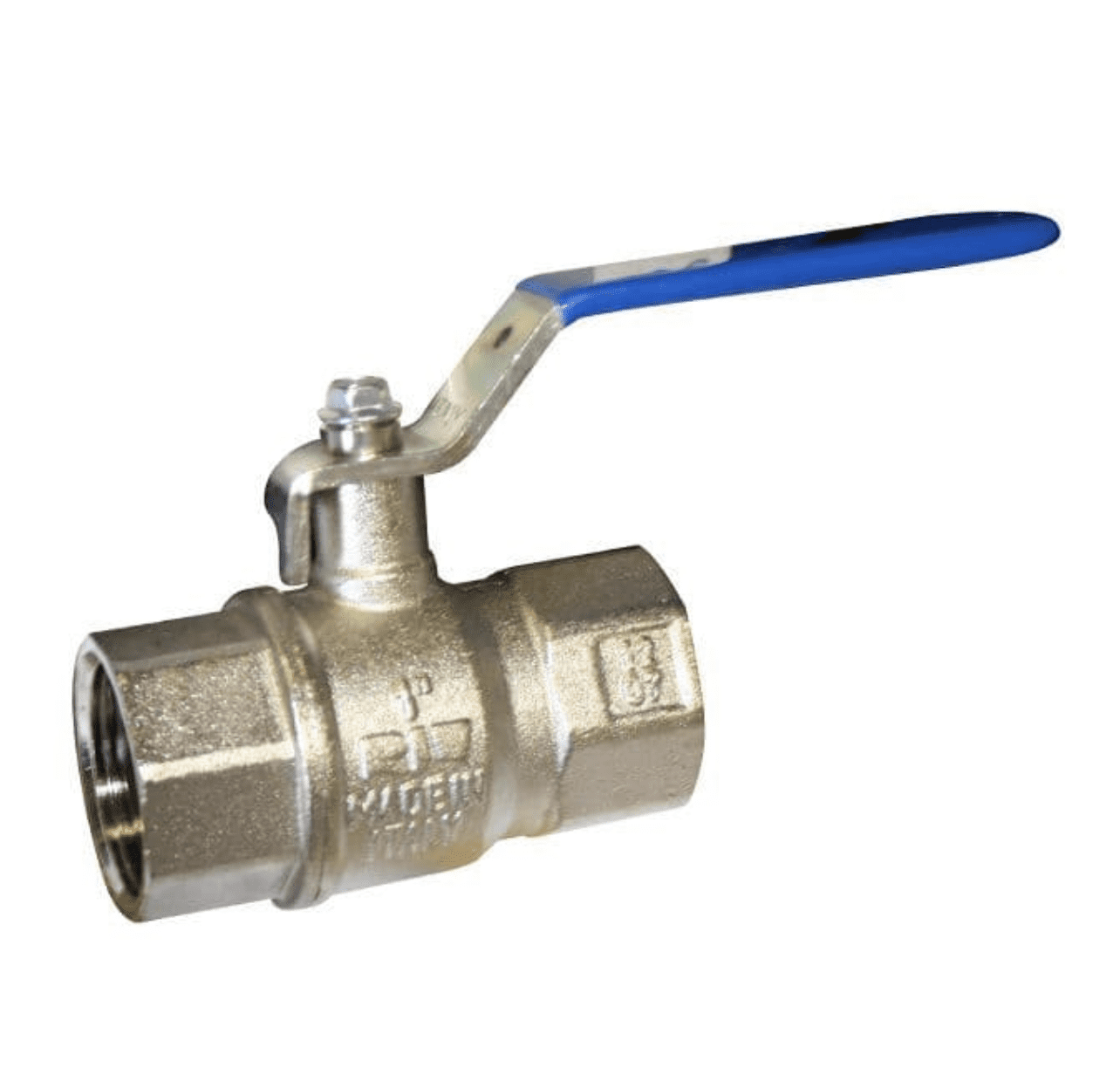

Brass Ball Valve Screwed BSPP Blue Lever

Engineered for applications where colour coding is used to distinguish pipelines, this brass ball valve features female BSPP threads and a blue lever handle. The blue handle helps identify cold water lines or other designated systems, while the fullbore design ensures minimal pressure drop.


Technical Data:

• Body material: Brass
• End connections: Screwed BSPP female threads
• Handle: Blue lever for system identification
• Flow design: Fullbore ball valve
• Pressure rating: Rated PN32 1/4" to 1", PN25 1 1/4" to 2" & PN30 2 1/2" to 4"
• Temperature range: 10°C to +110°C
• Seat & seal materials: PTFE seats, NBR/Viton Orings


Features:

• Blue lever aids visual identification of system type (cold water, recycled, etc.)
• Fullbore design ensures efficient flow and low resistance
• Standard screwed installation makes it suitable for retrofit or installation in compact circuits


Applications: Coldwater isolation valves, colourcoded plant systems, maintenancefriendly plumbing lines.
