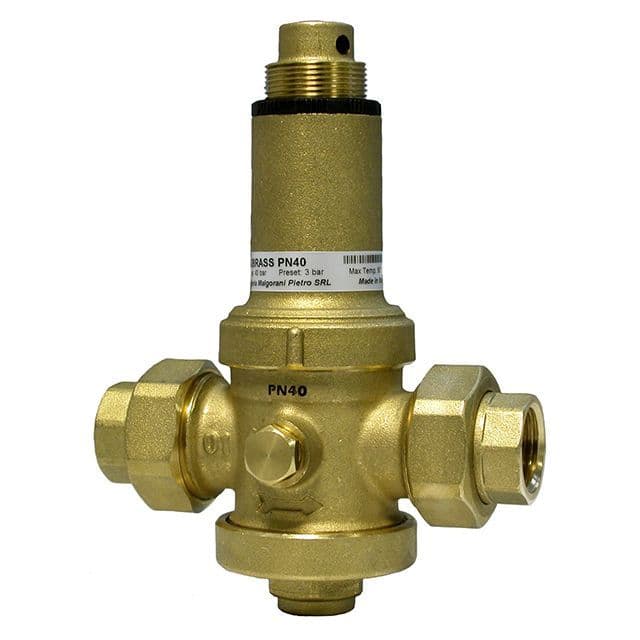

BrassPressureReducingValve PN40

If youre dealing with even higher inlet pressures and need a sturdy brass valve that can handle the load, this PN40-rated pressure reducing valve ticks the box. The design delivers consistent downstream pressure in tougher service conditions.

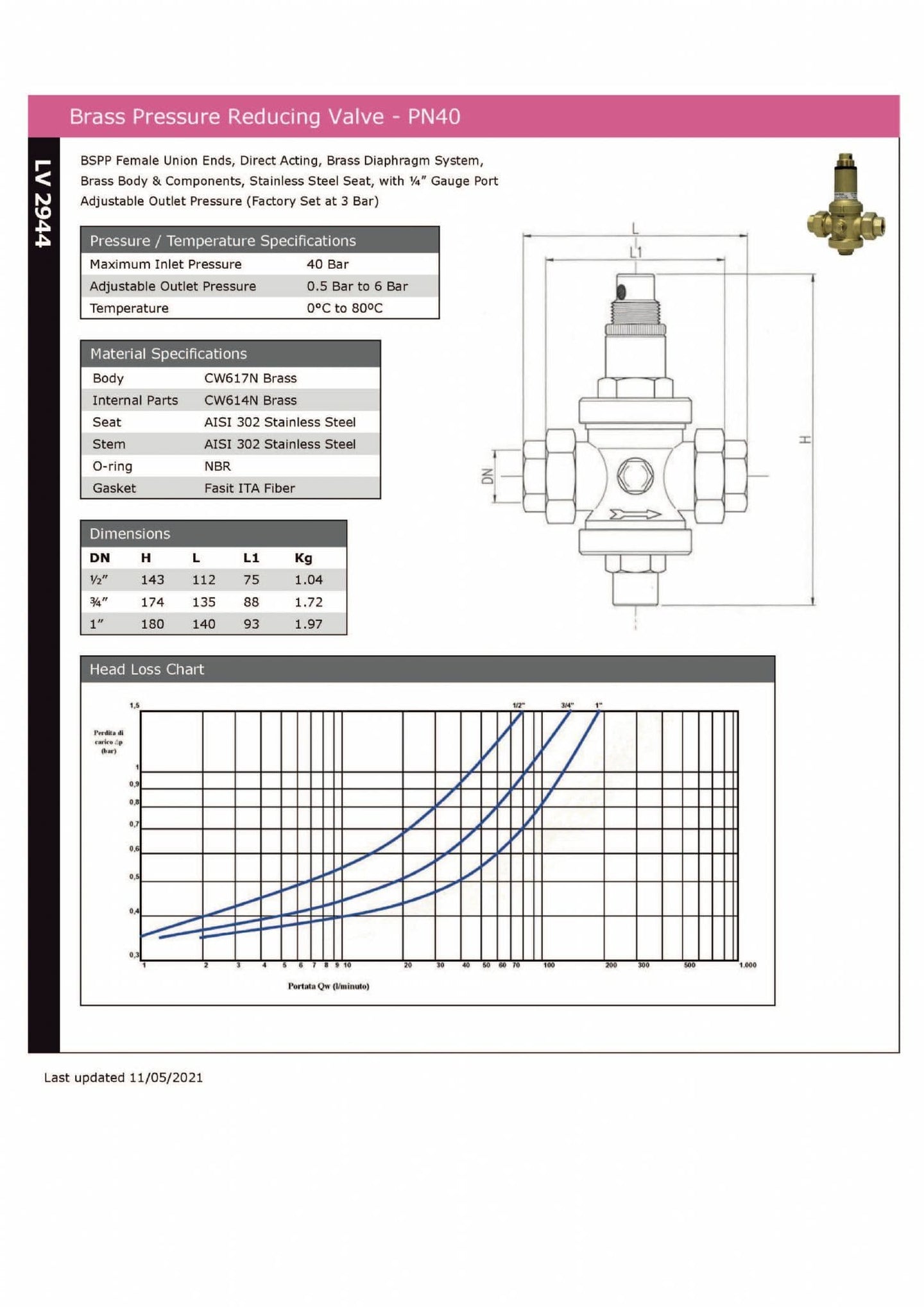

Technical Specifications:

Body material: Brass (CW617N / CW624N type alloy)
End connection: Screwed female BSPP union ends
Pressure rating: PN40 (~40 bar max upstream)
Adjustable downstream pressure: typical range 0.5-6 bar
Temperature range: up to ~80 °C
Seat: Stainless Steel
Seal material: EPDM

This valve is suitable where upstream pressure is high (for example building mains, imported water feed) and downstream circuits (heating/cooling or potable supply) need stable, safe pressure. The high PN40 rating gives extra margin for safety and longevity.

Pipetech

Brass Pressure Reducing Valve PN40

SKU V294404

Regular price: £59.70

Excl. tax: £49.34

BrassPressureReducingValve PN40

If youre dealing with even higher inlet pressures and need a sturdy brass valve that can handle the load, this PN40-rated pressure reducing valve ticks the box. The design delivers consistent downstream pressure in tougher service conditions.

Technical Specifications:

Body material: Brass (CW617N / CW624N type alloy)
End connection: Screwed female BSPP union ends
Pressure rating: PN40 (~40 bar max upstream)
Adjustable downstream pressure: typical range 0.5-6 bar
Temperature range: up to ~80 °C
Seat: Stainless Steel
Seal material: EPDM

This valve is suitable where upstream pressure is high (for example building mains, imported water feed) and downstream circuits (heating/cooling or potable supply) need stable, safe pressure. The high PN40 rating gives extra margin for safety and longevity.

Regular price: £59.70

Excl. tax: £49.34

Size: 1/2" 3/4" 1"

Product variants

Quantity

Product Description

BrassPressureReducingValve PN40

If youre dealing with even higher inlet pressures and need a sturdy brass valve that can handle the load, this PN40-rated pressure reducing valve ticks the box. The design delivers consistent downstream pressure in tougher service conditions.

Technical Specifications:

Body material: Brass (CW617N / CW624N type alloy)
End connection: Screwed female BSPP union ends
Pressure rating: PN40 (~40 bar max upstream)
Adjustable downstream pressure: typical range 0.5-6 bar
Temperature range: up to ~80 °C
Seat: Stainless Steel
Seal material: EPDM

This valve is suitable where upstream pressure is high (for example building mains, imported water feed) and downstream circuits (heating/cooling or potable supply) need stable, safe pressure. The high PN40 rating gives extra margin for safety and longevity.
