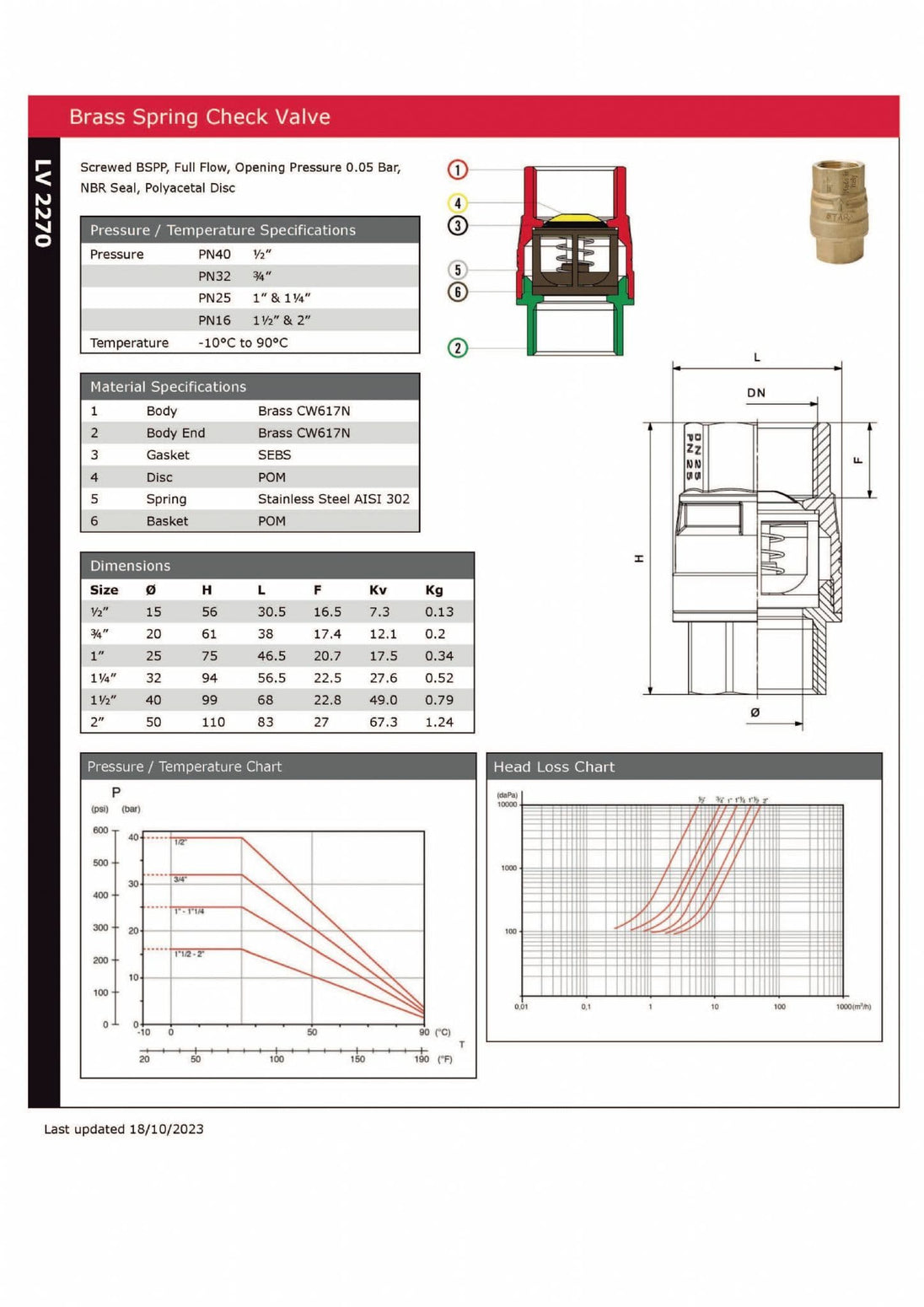

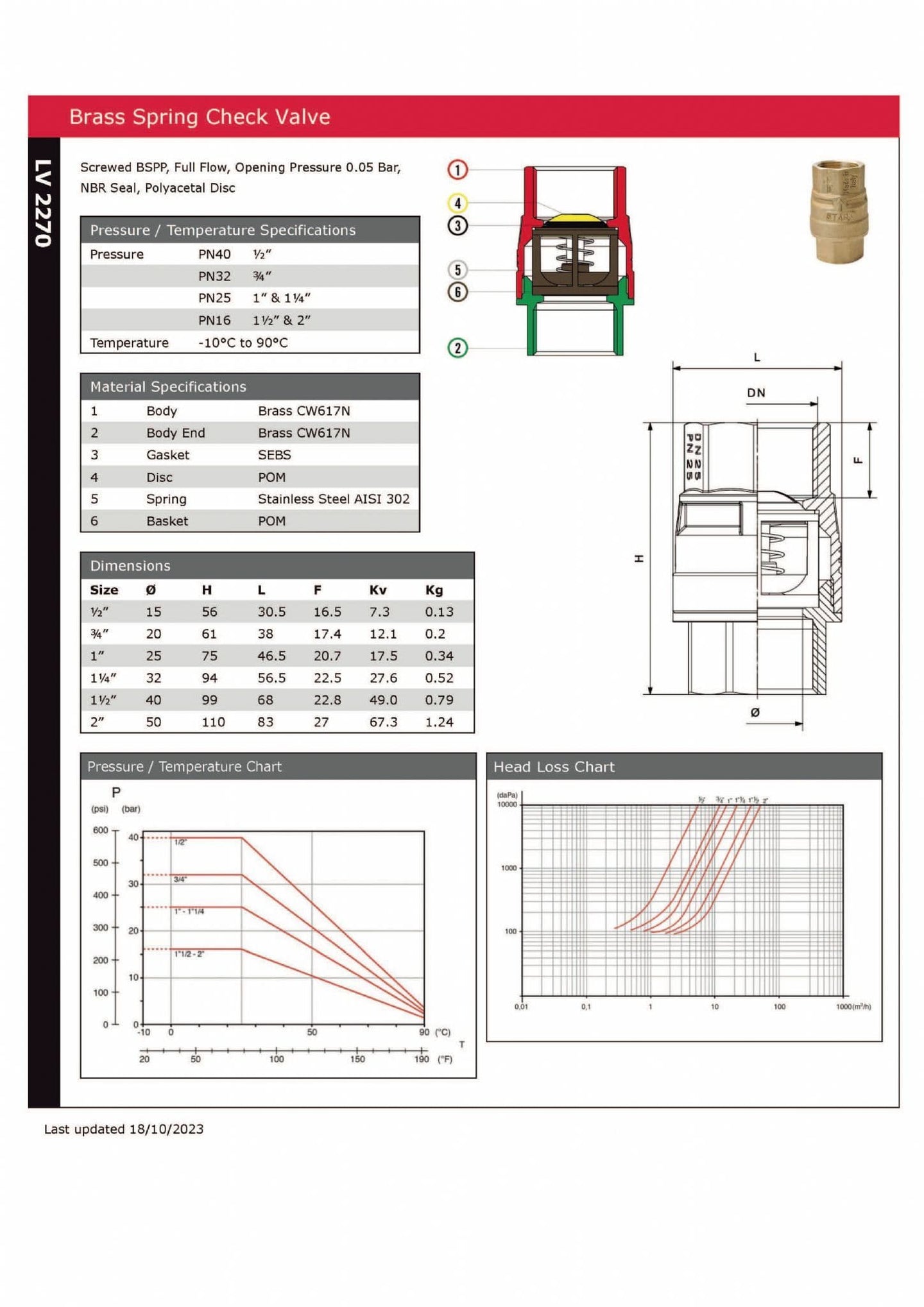

Brass Spring Check Valve General Purpose

This is a versatile brass spring check valve suitable for a wide range of fluid control applications. Its spring-loaded mechanism ensures quick closure to prevent reverse flow while maintaining minimal head loss.

Technical Data

• Body Material: Brass
• Disk: Polyacetal
• Spring Material: Stainless steel
• Seat Material: NBR
• Connection Type: Threaded BSPP
• Pressure Rating: PN40 ½", PN32 ¾", PN25 1" & 1¼", PN16 1½" & 2"
• Temperature Range: -10°C to +90°C
• Cracking Pressure: Very low, typically around0.02bar

Key Features

• Universal design for water, air, and light oil systems
• Reliable non-return protection
• Compact and easy to install

Applications

• Water distribution and pump lines
• General industrial and domestic systems
• Irrigation and booster setups
