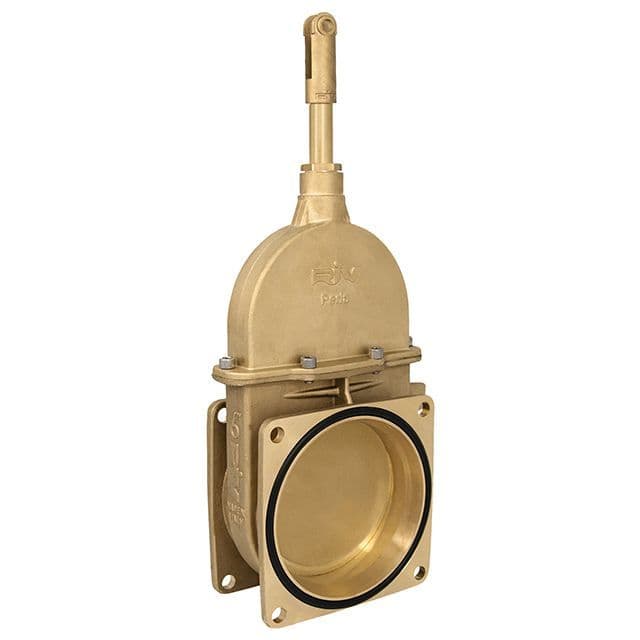

Overview of Brass Vacuum Tanker Gate Valve Agri Square Flanged
Description
This brass vacuum tanker gate valve with agri square flange is designed for reliable isolation in agricultural vacuum tanker systems. The full-bore gate design ensures unrestricted flow of slurry, liquids, and waste media, while the brass construction provides durability and corrosion resistance in demanding field conditions.

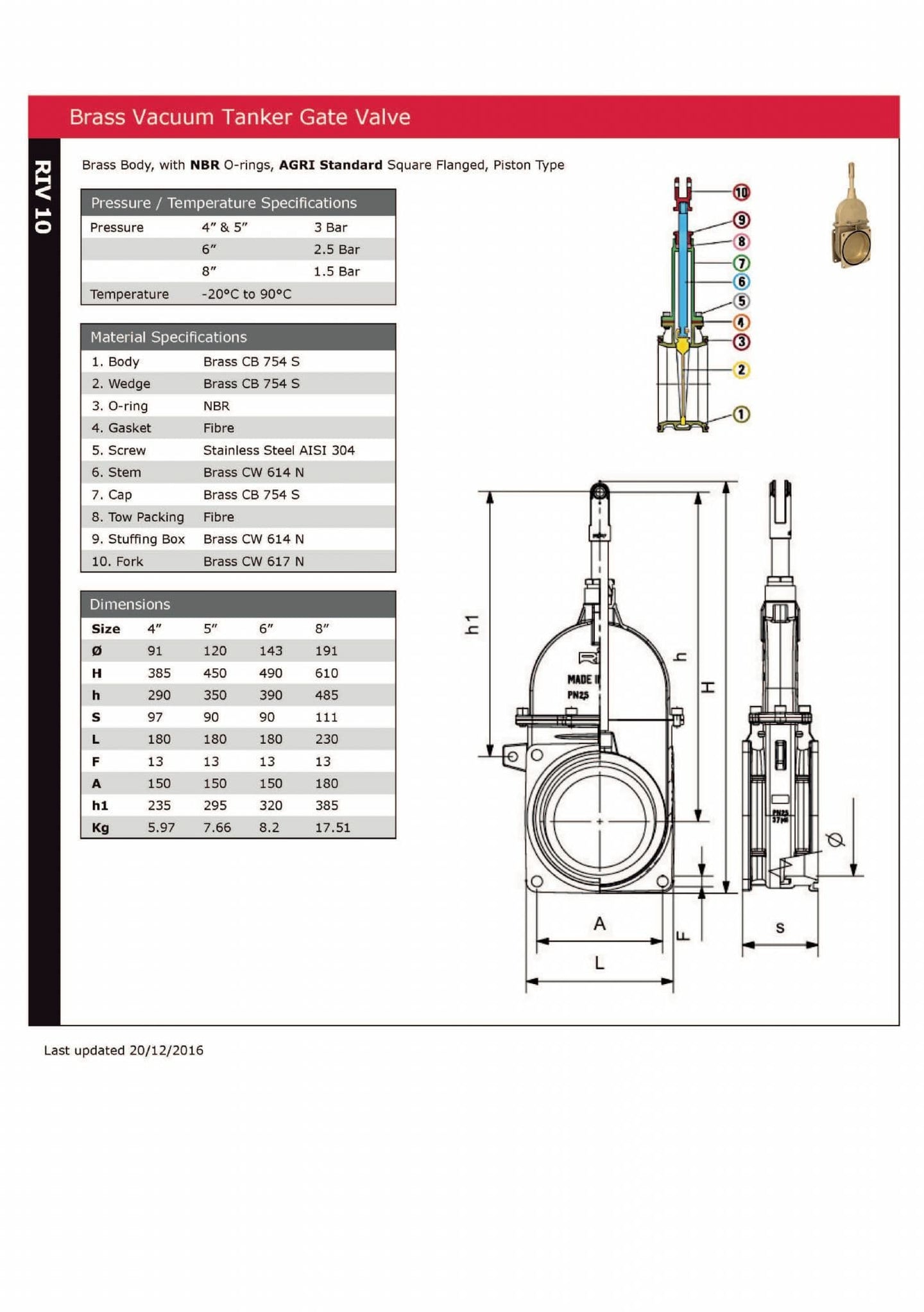

Technical Data
- Body Material: Brass
- Valve Type: Gate valve
- End Connection: Agri square flange
- Operation: Manual lever
- Pressure Rating: Rated 3 Bar 4" & 5", 2.5 Bar 6", 1.5 Bar 8"
- Temperature Range: -20 to +90 Degrees
- Media: Slurry, liquid waste, agricultural fluids
Key Features
- Full-bore design for maximum flow
- Robust brass body
- Suitable for tanker discharge and isolation
- Regular price
- £188.53
