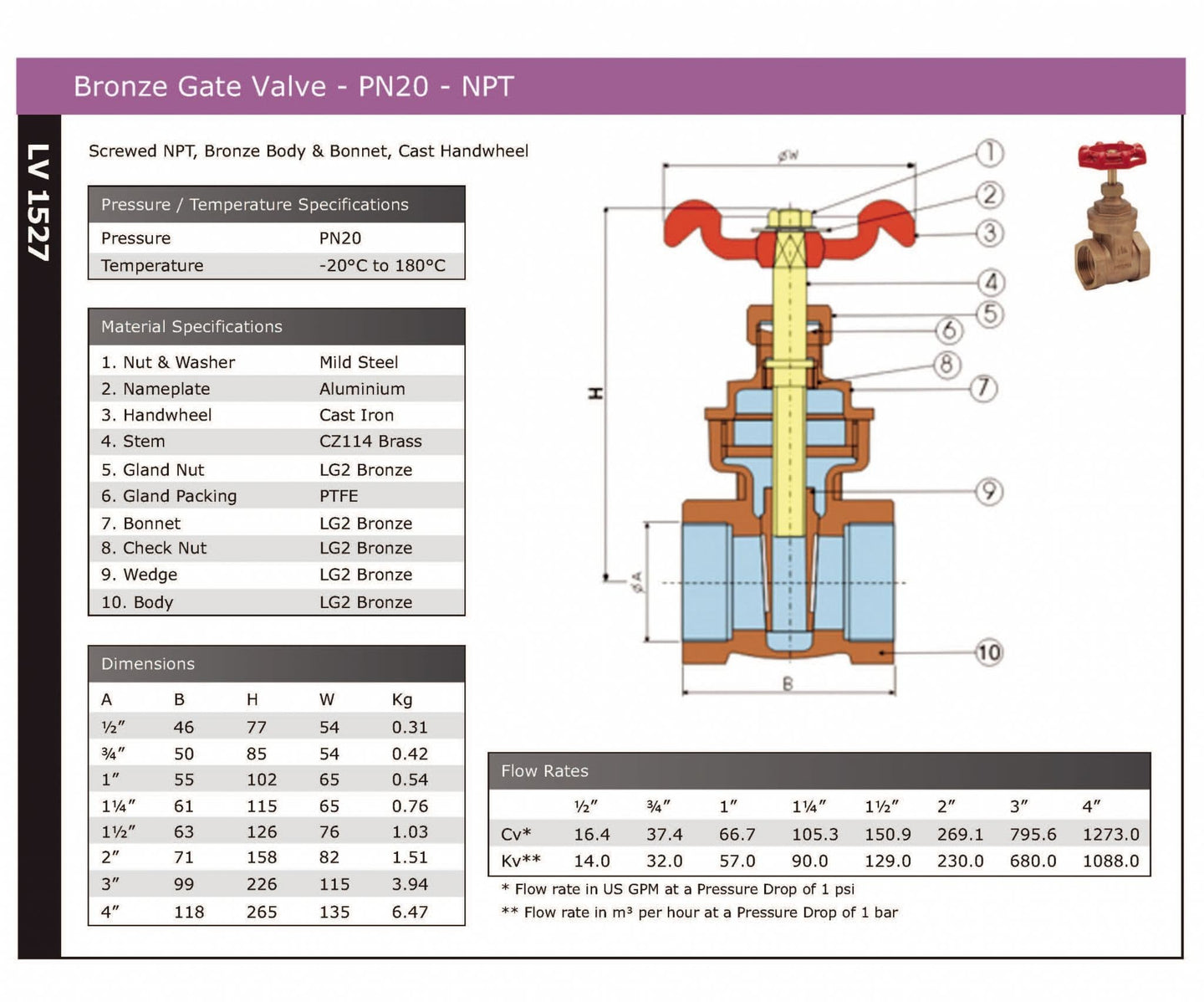

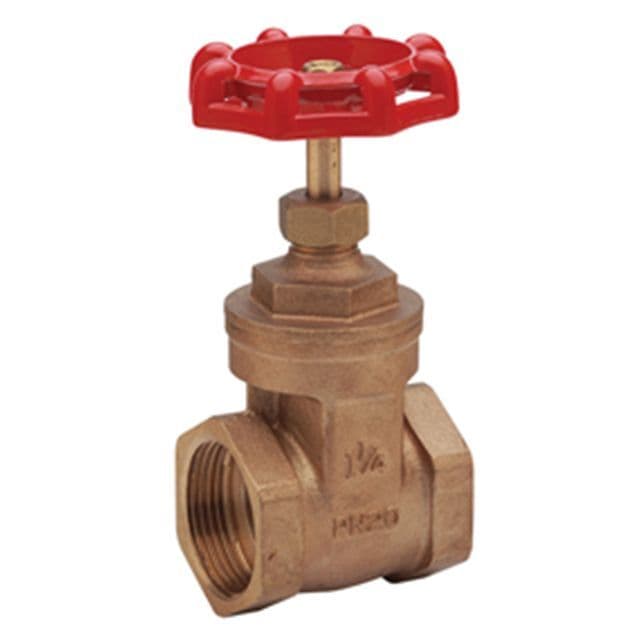

Bronze Gate Valve PN20 NPT

If youre working in a system with National Pipe Thread (NPT) connections and need a higher pressure rating in bronze, this valve is built for it. The valve comes with NPT screwed ends, is rated to PN20 (20 bar) and has a broad temperature capability from -20 °C up to +180 °C.

Technical highlights:

Body & bonnet: Bronze (BS:1400 LG2)
End-connection: NPT screwed thread
Pressure rating: PN20 (20 bar)
Temperature range: -20 °C to +180 °C
Handwheel operation, manual gate type

This version suits installations where higher pressures and perhaps more aggressive temperature fluctuations occur, yet you still want bronze construction.

UTAM

Bronze Gate Valve PN20 NPT

SKU V152704

Regular price: £14.67

Excl. tax: £12.12

Bronze Gate Valve PN20 NPT

If youre working in a system with National Pipe Thread (NPT) connections and need a higher pressure rating in bronze, this valve is built for it. The valve comes with NPT screwed ends, is rated to PN20 (20 bar) and has a broad temperature capability from -20 °C up to +180 °C.

Technical highlights:

Body & bonnet: Bronze (BS:1400 LG2)
End-connection: NPT screwed thread
Pressure rating: PN20 (20 bar)
Temperature range: -20 °C to +180 °C
Handwheel operation, manual gate type

This version suits installations where higher pressures and perhaps more aggressive temperature fluctuations occur, yet you still want bronze construction.

Regular price: £14.67

Excl. tax: £12.12

Size: 1/2" 3/4" 1" 11/4" 11/2" 2" 3" 4"

Product variants

Quantity

Product Description

Bronze Gate Valve PN20 NPT

If youre working in a system with National Pipe Thread (NPT) connections and need a higher pressure rating in bronze, this valve is built for it. The valve comes with NPT screwed ends, is rated to PN20 (20 bar) and has a broad temperature capability from -20 °C up to +180 °C.

Technical highlights:

Body & bonnet: Bronze (BS:1400 LG2)
End-connection: NPT screwed thread
Pressure rating: PN20 (20 bar)
Temperature range: -20 °C to +180 °C
Handwheel operation, manual gate type

This version suits installations where higher pressures and perhaps more aggressive temperature fluctuations occur, yet you still want bronze construction.
