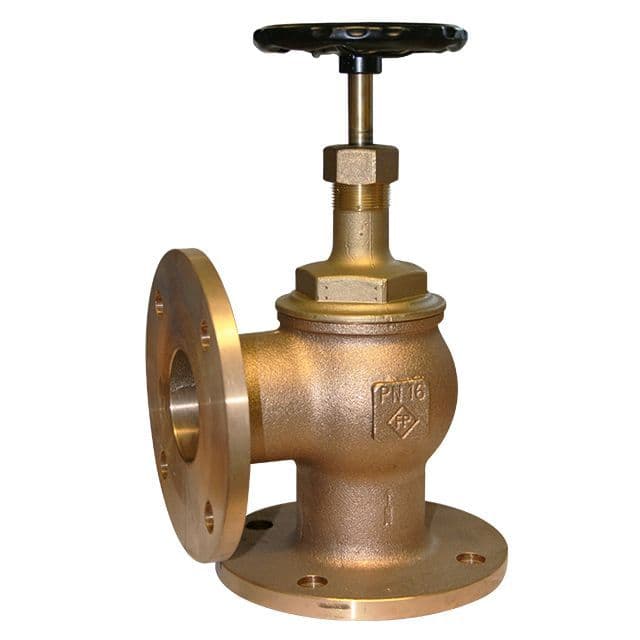

Overview of Bronze Globe Valve Flanged PN16 SDNR

Description
This bronze globe valve with flanged PN16 ends incorporates a Screw Down Non-Return (SDNR) design, combining precise flow control with non-return functionality. Engineered for fluid systems where backflow prevention is essential, it offers dependable performance in water, steam, and general process lines. The flanged PN16 connection ensures a secure, leak-resistant installation, while the bronze body provides excellent resistance to corrosion and wear.

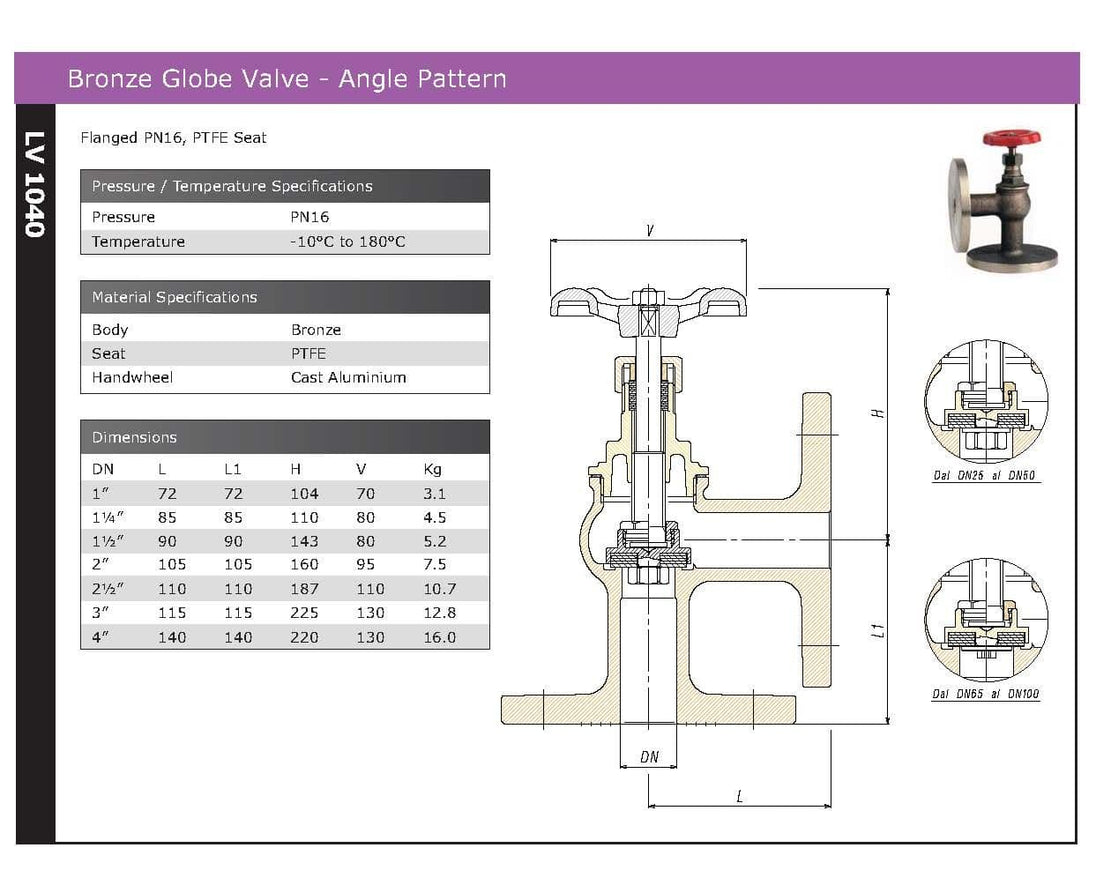

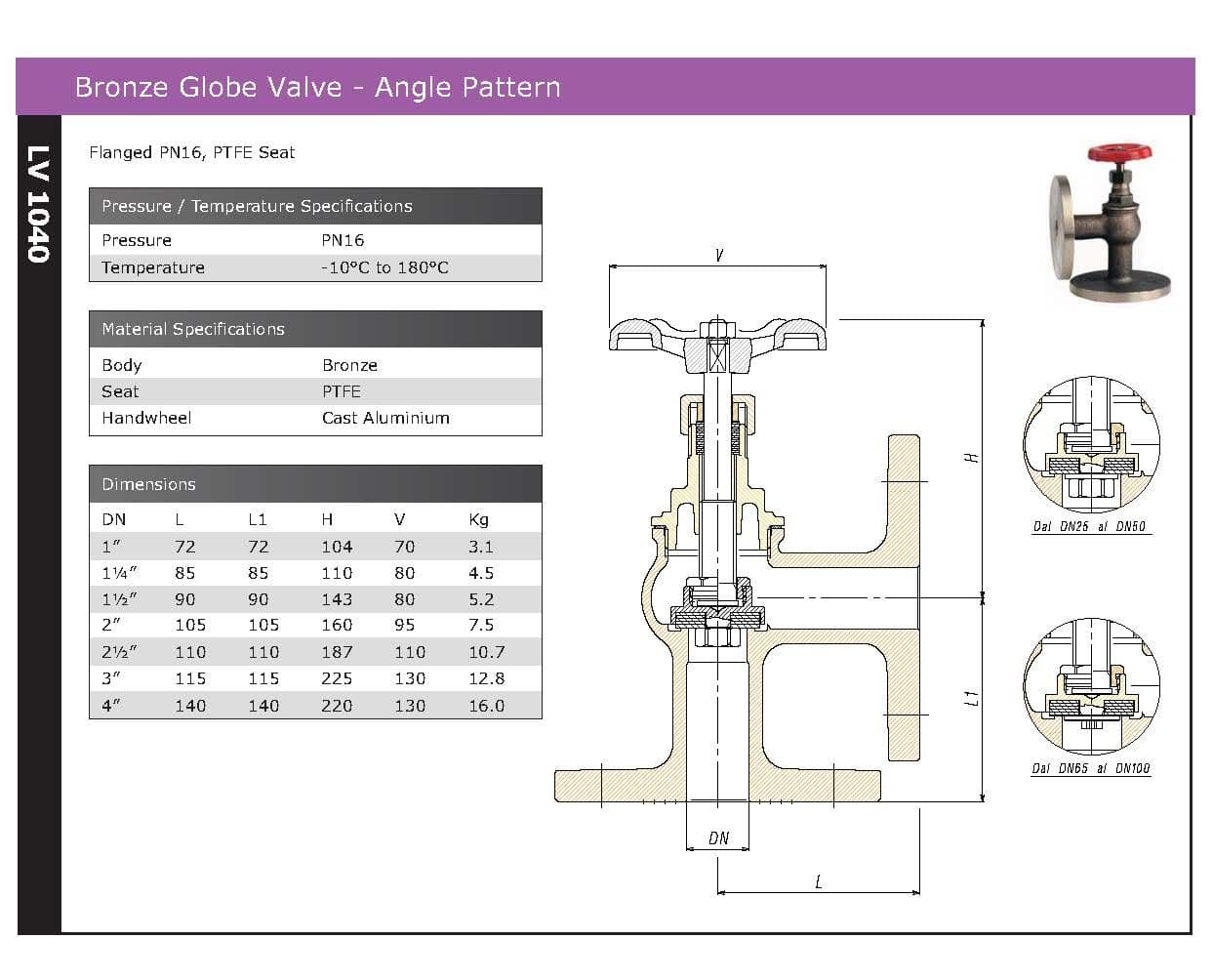

Technical Data

• Body Material: Bronze alloy
• End Connections: Flanged, PN16
• Valve Type: Globe with SDNR non-return feature
• Pressure Rating: PN16 (~16 bar)
• Temperature Range: 10 °C to +180 °C
• Seat Material: PTFE
• Operation: Handwheel

Key Features

• Combines throttling and non-return functionality in one valve
• Bronzed body resists corrosion in water and steam environments
• Flanged PN16 ends for robust bolted pipe connections

Installation & Application Notes
Install with correct orientation to achieve non-return action. Use PN16 suitable gaskets and even flange bolt torque. Ideal for steam condensate return lines, heating systems, or where backflow prevention and fine flow control are needed.
