Overview of Bronze Globe Valve Flanged Table F
Description

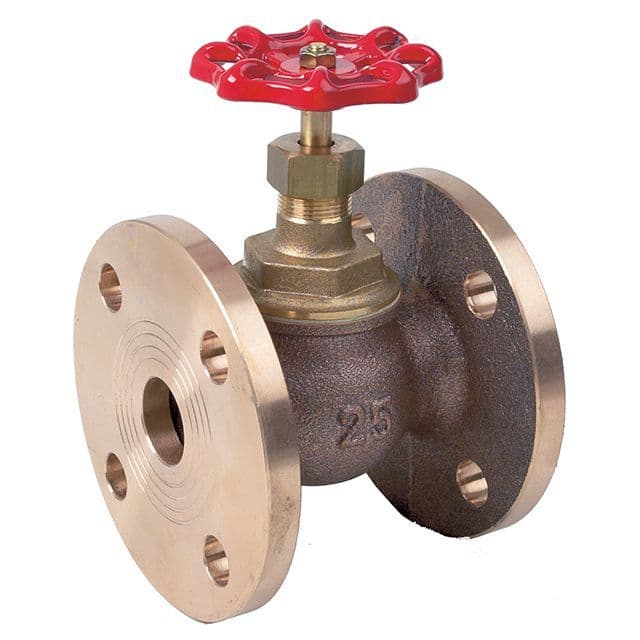

This flanged bronze globe valve is specified to Table F flange dimensions, offering standardised installation across PN10 and related systems. The robust bronze body and globe design provide accurate flow control and positive shut-off in industrial and commercial fluids.
Technical Data
- Body Material: Bronze
- End Connections: Flanged BS10 Table F,
- Valve Type: Globe
- Pressure Rating: PN16
- Temperature Range: 10 °C to +180 °C
- Seat Material: Bronze & PTFE
- Operation: Handwheel
Key Features
- Table F flange standard for compatibility with common industrial piping
- Bronze body for corrosion resistance
- Globe pattern offers accurate throttling
Installation & Application Notes
Pair with matching Table F flange classes and gaskets. Ideal for fluid distribution, general process control, and medium-pressure installations where flange fit-up is preferred.
Overview of Bronze Globe Valve Flanged Table F
Description
This flanged bronze globe valve is specified to Table F flange dimensions, offering standardised installation across PN10 and related systems. The robust bronze body and globe design provide accurate flow control and positive shut-off in industrial and commercial fluids.
Technical Data
- Body Material: Bronze
- End Connections: Flanged BS10 Table F,
- Valve Type: Globe
- Pressure Rating: PN16
- Temperature Range: 10 °C to +180 °C
- Seat Material: Bronze & PTFE
- Operation: Handwheel
Key Features
- Table F flange standard for compatibility with common industrial piping
- Bronze body for corrosion resistance
- Globe pattern offers accurate throttling
Installation & Application Notes
Pair with matching Table F flange classes and gaskets. Ideal for fluid distribution, general process control, and medium-pressure installations where flange fit-up is preferred.
- Regular price
- £189.58
