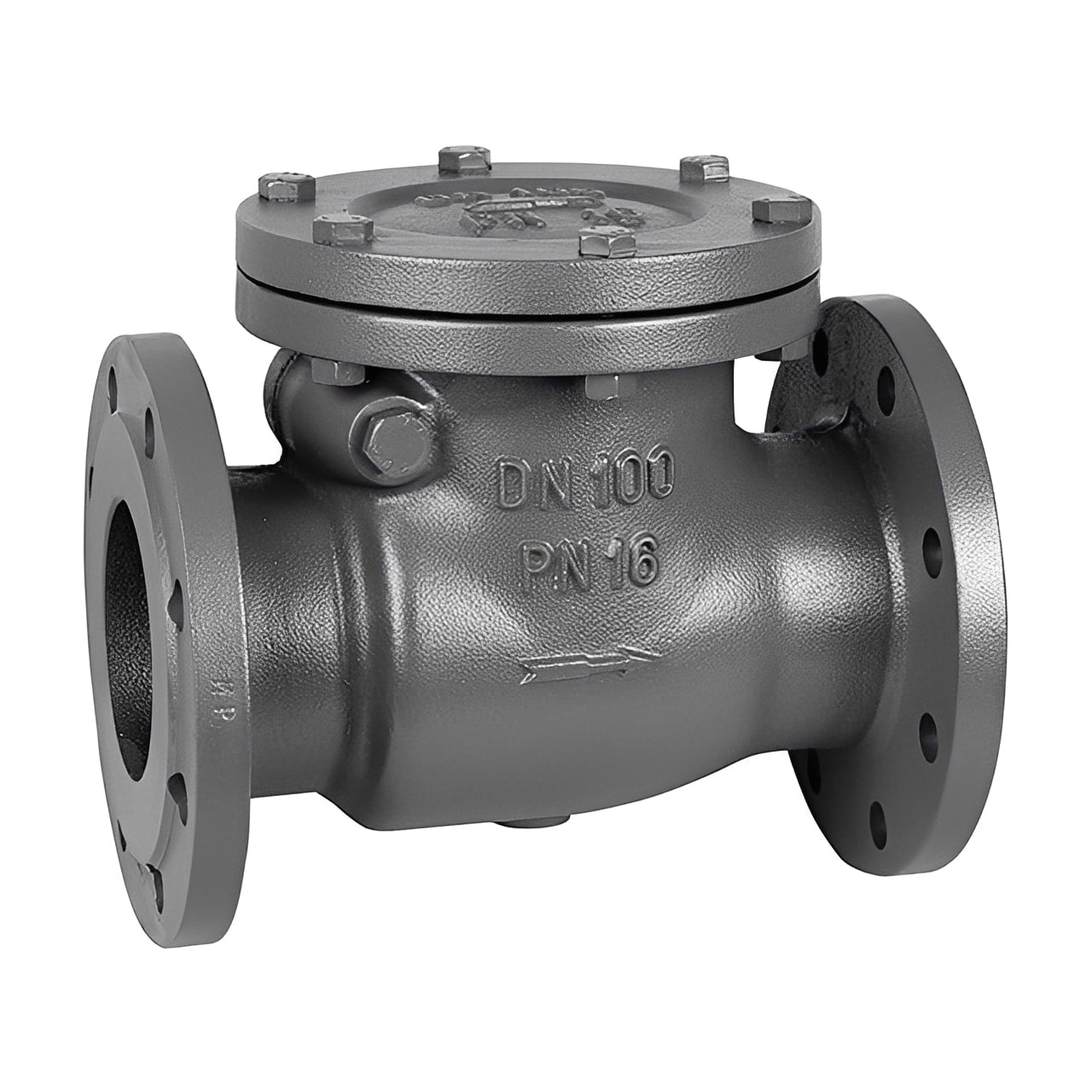

This Cast Iron Flanged PN16 Check Valve is specifically engineered for systems requiring reliable non-return functionality within PN16 rated pipework. Designed with economy and durability in mind, this large-bore valve ensures efficient flow control while preventing backflow in a variety of utility and industrial environments.
- Robust Construction: Features a cast iron body (EN GJL type) that is ideally suited for water, HVAC, and general utility installations.
- Internal Components: Equipped with a cast brass seat for longevity, featuring a cast brass disc for sizes 1½ to 4 and a cast iron disc for sizes 5 to 12.
- Operational Range: Rated for PN16 pressure (~16 bar nominal) with a working temperature range of approximately -10°C to +150°C.
- Installation and Maintenance: Designed for horizontal orientation with a clear flow arrow marking; the flanged design allows for easy removal or replacement without disturbing the connected pipework.
- Versatile Application: Perfect for building services, chilled or hot water systems, and industrial cooling circuits.
Providing a cost-effective solution for large-pipe installations, this cast iron flanged check valve offers standard compatibility for widespread use in commercial and industrial plumbing systems.
| Connector style | PN16 flange, size varied (e.g., 2 through 12) |
|---|---|
| Body | Cast iron (EN GJL type) |
| Seat construction | Cast Brass Seat |
| Disc construction | Cast Brass Disc 1½ to 4, Cast Iron Disc 5 to 12 |
| Pressure rating | PN16 (~16 bar nominal) |
| Temperature range | -10°C to +150°C |
| Flow direction | Horizontal orientation |
This Cast Iron Flanged PN16 Check Valve is specifically engineered for systems requiring reliable non-return functionality within PN16 rated pipework. Designed with economy and durability in mind, this large-bore valve ensures efficient flow control while preventing backflow in a variety of utility and industrial environments.
- Robust Construction: Features a cast iron body (EN GJL type) that is ideally suited for water, HVAC, and general utility installations.
- Internal Components: Equipped with a cast brass seat for longevity, featuring a cast brass disc for sizes 1½ to 4 and a cast iron disc for sizes 5 to 12.
- Operational Range: Rated for PN16 pressure (~16 bar nominal) with a working temperature range of approximately -10°C to +150°C.
- Installation and Maintenance: Designed for horizontal orientation with a clear flow arrow marking; the flanged design allows for easy removal or replacement without disturbing the connected pipework.
- Versatile Application: Perfect for building services, chilled or hot water systems, and industrial cooling circuits.
Providing a cost-effective solution for large-pipe installations, this cast iron flanged check valve offers standard compatibility for widespread use in commercial and industrial plumbing systems.
| Connector style | PN16 flange, size varied (e.g., 2 through 12) |
|---|---|
| Body | Cast iron (EN GJL type) |
| Seat construction | Cast Brass Seat |
| Disc construction | Cast Brass Disc 1½ to 4, Cast Iron Disc 5 to 12 |
| Pressure rating | PN16 (~16 bar nominal) |
| Temperature range | -10°C to +150°C |
| Flow direction | Horizontal orientation |
- Regular price
- £189.58
