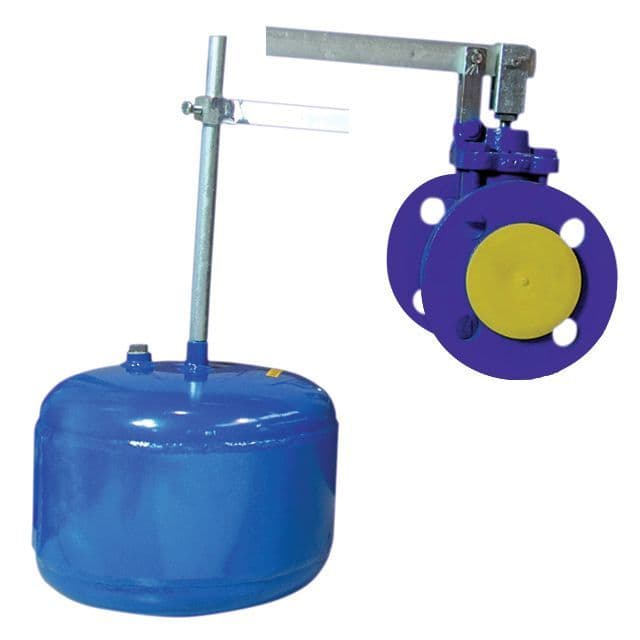

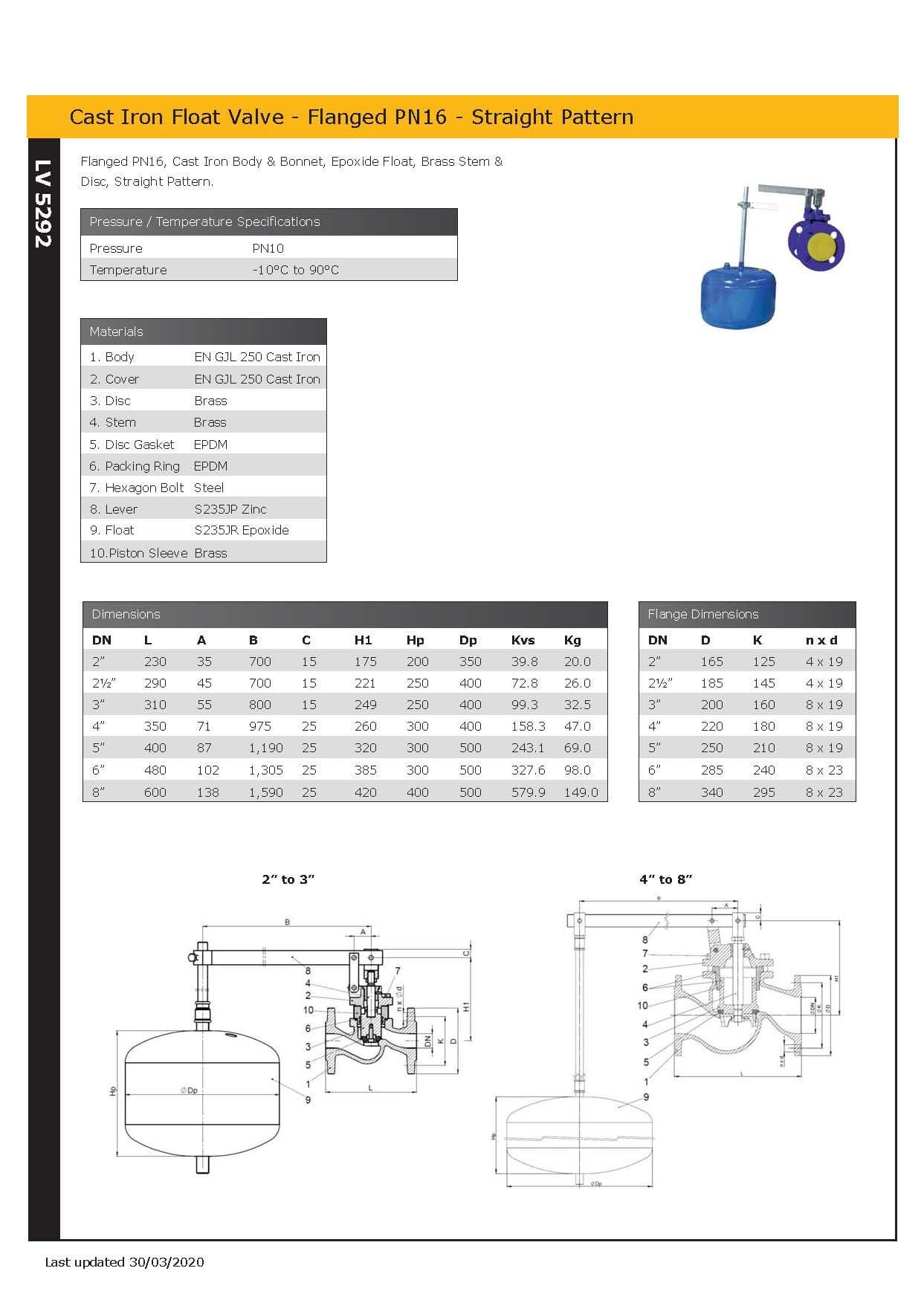

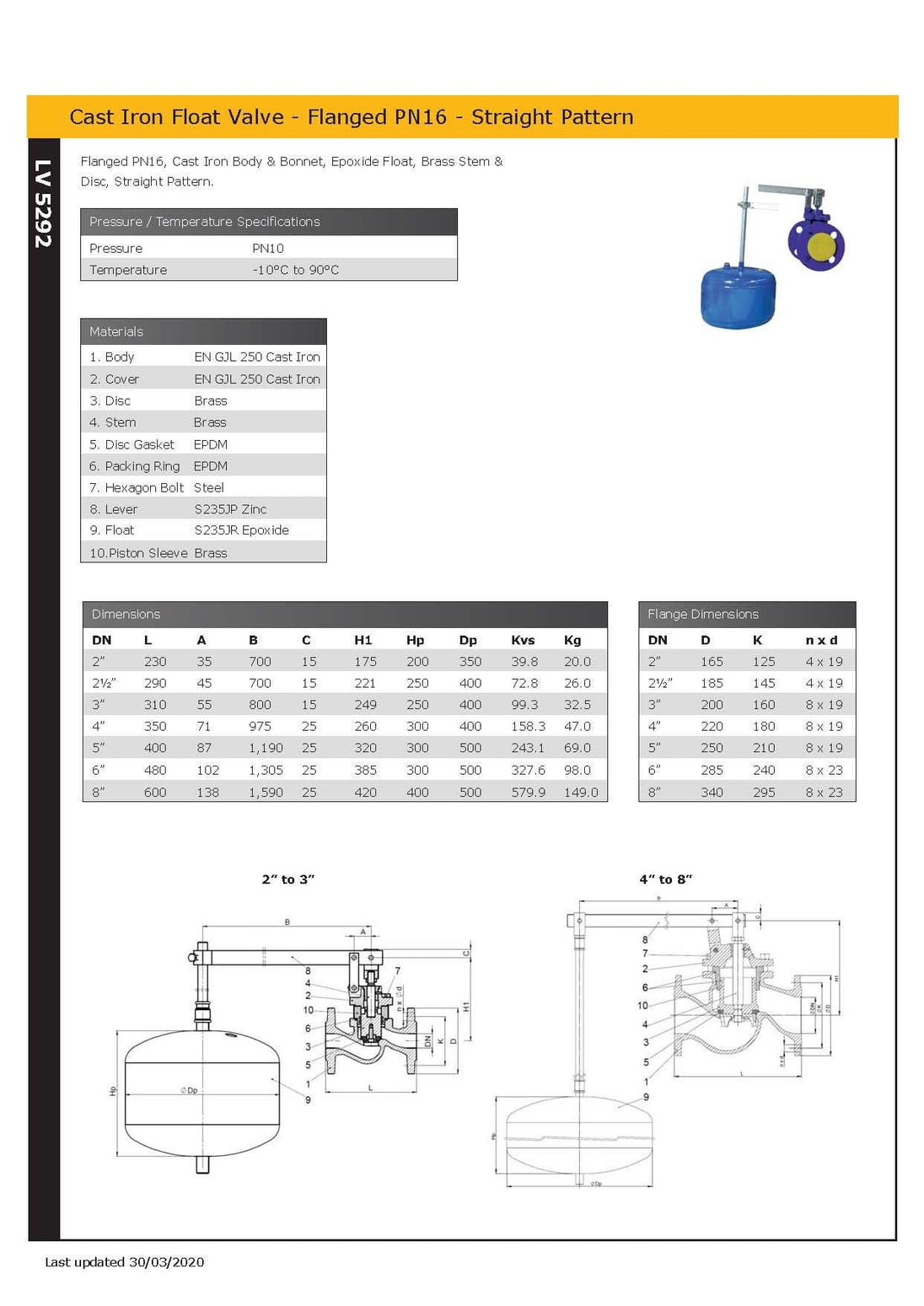

Overview of Cast Iron Float Valve Flanged PN16 Straight Pattern
Description
This straight-pattern cast iron float valve is engineered for reliable liquid level control in larger storage and distribution systems. The straight-through design minimises flow restriction while providing dependable shut-off as the float rises with liquid level.
Technical Data
- Body Material: Cast iron
- Valve Type: Float valve
- Pattern: Straight pattern
- End Connections: Flanged PN16
- Temperature Range: -10ºC to 90ºC
- Pressure Rating: PN10
- Media: Water and compatible liquids
Key Features
- Straight flow path for efficient filling
- Heavy-duty construction for long service life
- Suitable for large tanks and reservoirs
Installation & Application Notes
Ensure the valve is installed level and aligned to allow smooth float operation. Ideal for municipal and industrial water storage systems.
- Regular price
- £1,151.06
