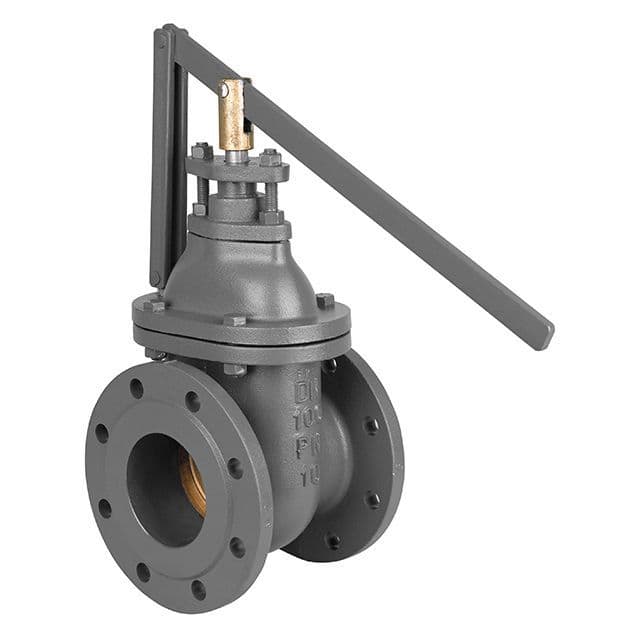

Cast Iron Gate Valve Flanged PN16 Quick Closing

This specialised version of the flanged cast-iron gate valve features a quick-closing mechanism, ideal for systems where fast shut-off is required to mitigate transient flow, water hammer or other dynamic conditions. While detailed specification was not captured in full, the base design is consistent: cast iron body (EN GJL 250), flanged PN16 ends, cast bronze seat, inside screw or equivalent. Typical rating PN10, temperature capability -10 °C to +150 °C (based on comparable designs).

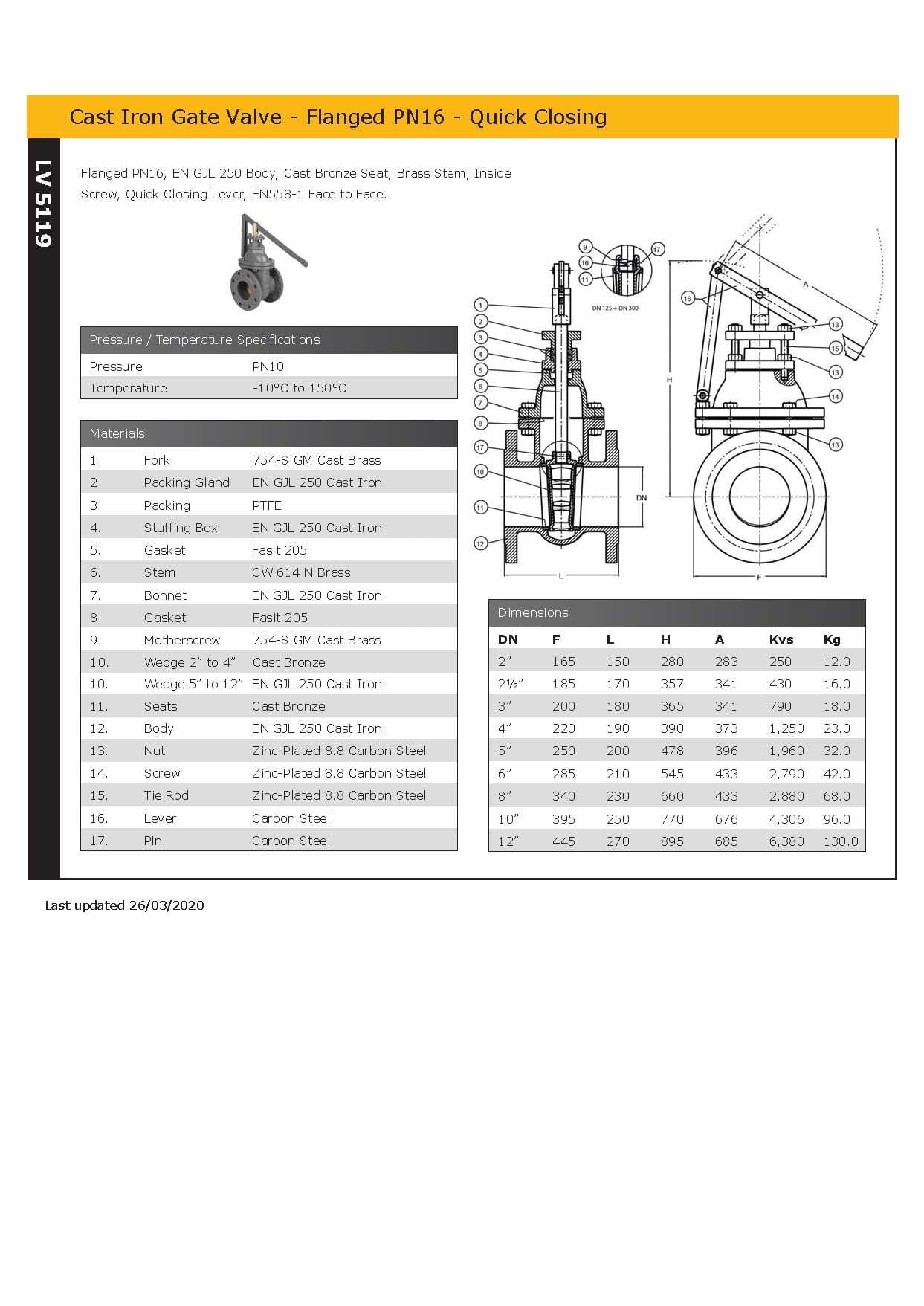

Key Technical Data (expected)

• Body: Cast iron (EN GJL 250)
• Seat: Cast bronze
• Connection: Flanged PN16
• Special feature: Quick-closing action (reduced time to shut off)
• Pressure rating: PN10
• Temperature range: -10 °C to +150 °C
• Sizes: 2 to 12

This valve is geared toward applications where a rapid shutoff capability is needed, for example emergency isolation, pump discharge lines, or where dynamic loads demand high responsiveness.
