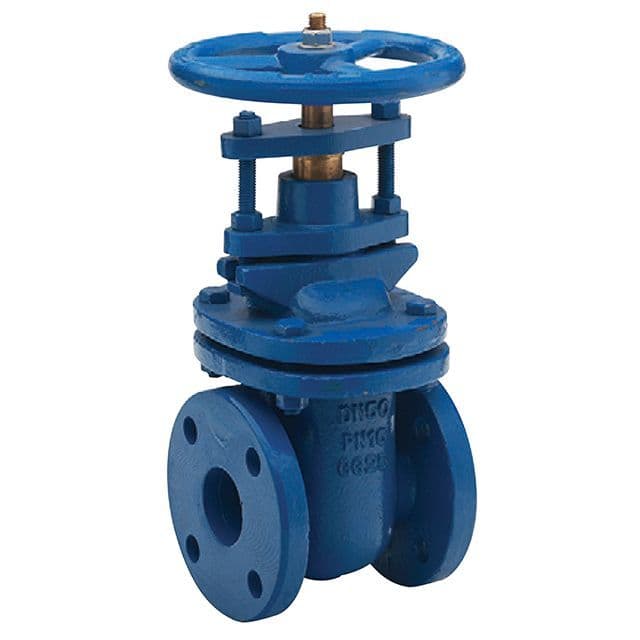

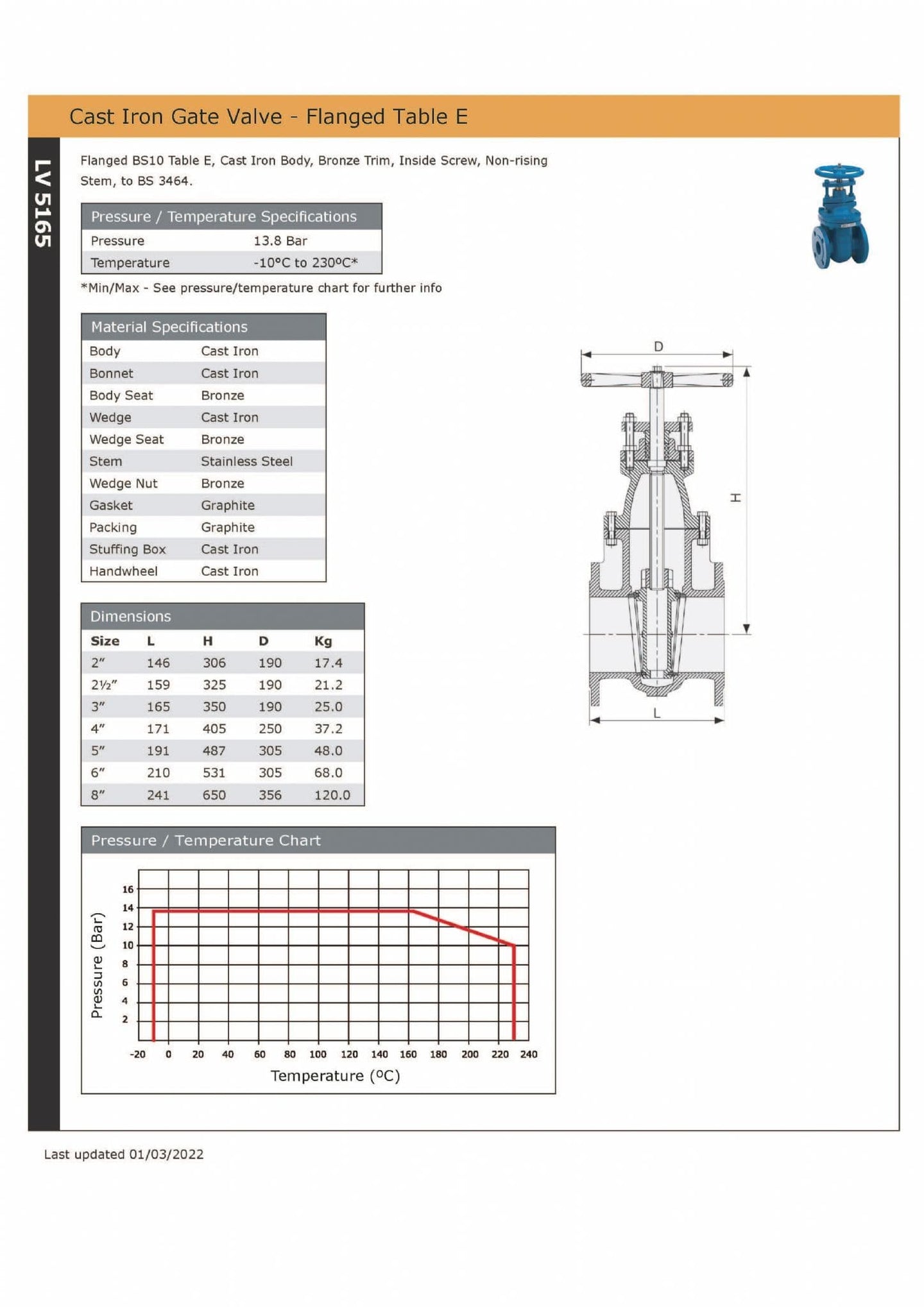

Cast Iron Gate Valve Flanged Table E
This heavy-duty gate valve is engineered for reliable isolation in water, heating, and general service systems. Manufactured from high-grade cast iron with bronze seating, it is designed for flanged installations drilled to BS10 Table E, ensuring compatibility with standard industrial pipework.
Technical Details
- Body Material: Cast iron (GJL 250 or equivalent)
- Seat Material: Bronze seating rings
- Stem Type: Inside screw, non-rising stem
- Flange Standard: BS10 Table E
- Pressure Rating: Approximately 12.8 bar (PN12.8 equivalent)
- Temperature Range: -10 °C to +230 °C
- Sizes Available: DN50 (2) to DN200 (8) typical
- Coating: Protective enamel or epoxy finish
Applications
Suitable for general water distribution, heating circuits, and industrial pipelines where Table E flange compatibility is required. The non-rising stem provides compact installation with dependable performance in both horizontal and vertical pipework.
Cast Iron Gate Valve Flanged Table E
This heavy-duty gate valve is engineered for reliable isolation in water, heating, and general service systems. Manufactured from high-grade cast iron with bronze seating, it is designed for flanged installations drilled to BS10 Table E, ensuring compatibility with standard industrial pipework.
Technical Details
- Body Material: Cast iron (GJL 250 or equivalent)
- Seat Material: Bronze seating rings
- Stem Type: Inside screw, non-rising stem
- Flange Standard: BS10 Table E
- Pressure Rating: Approximately 12.8 bar (PN12.8 equivalent)
- Temperature Range: -10 °C to +230 °C
- Sizes Available: DN50 (2) to DN200 (8) typical
- Coating: Protective enamel or epoxy finish
Applications
Suitable for general water distribution, heating circuits, and industrial pipelines where Table E flange compatibility is required. The non-rising stem provides compact installation with dependable performance in both horizontal and vertical pipework.
- Regular price
- £194.82
Cast Iron Gate Valve Flanged Table E
This heavy-duty gate valve is engineered for reliable isolation in water, heating, and general service systems. Manufactured from high-grade cast iron with bronze seating, it is designed for flanged installations drilled to BS10 Table E, ensuring compatibility with standard industrial pipework.
Technical Details
- Body Material: Cast iron (GJL 250 or equivalent)
- Seat Material: Bronze seating rings
- Stem Type: Inside screw, non-rising stem
- Flange Standard: BS10 Table E
- Pressure Rating: Approximately 12.8 bar (PN12.8 equivalent)
- Temperature Range: -10 °C to +230 °C
- Sizes Available: DN50 (2) to DN200 (8) typical
- Coating: Protective enamel or epoxy finish
Applications
Suitable for general water distribution, heating circuits, and industrial pipelines where Table E flange compatibility is required. The non-rising stem provides compact installation with dependable performance in both horizontal and vertical pipework.
-
Vendor: Pipetech

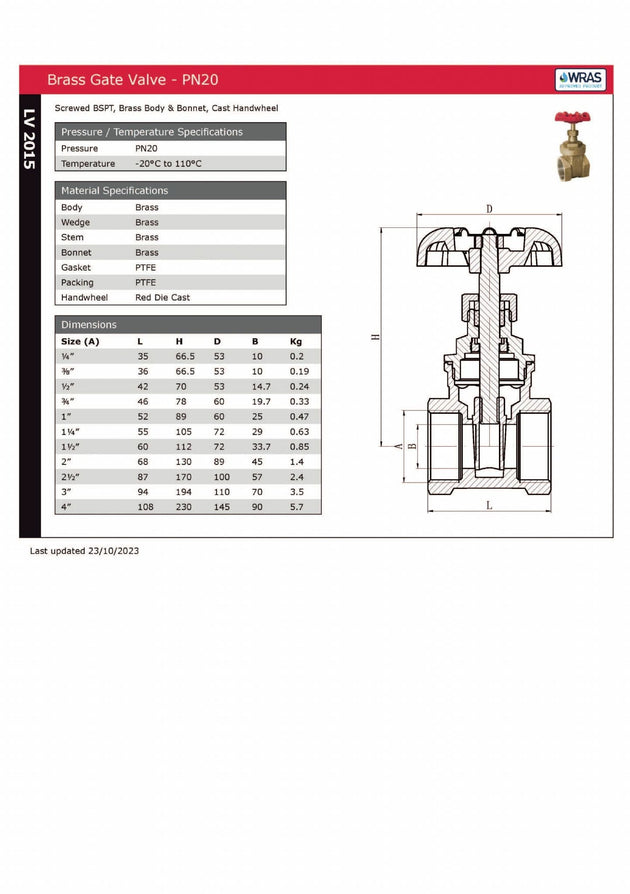

Brass Gate Valve PN20 WRAS Approved
Regular price From £3.77Excl. tax: £3.12 -
Vendor: Pipetech

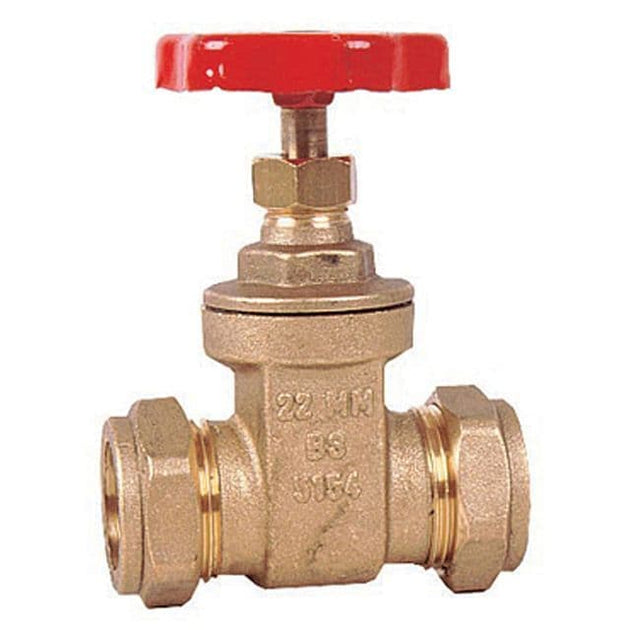

CR Brass Gate Valve
Regular price From £6.29Excl. tax: £5.2 -
Vendor: Pipetech

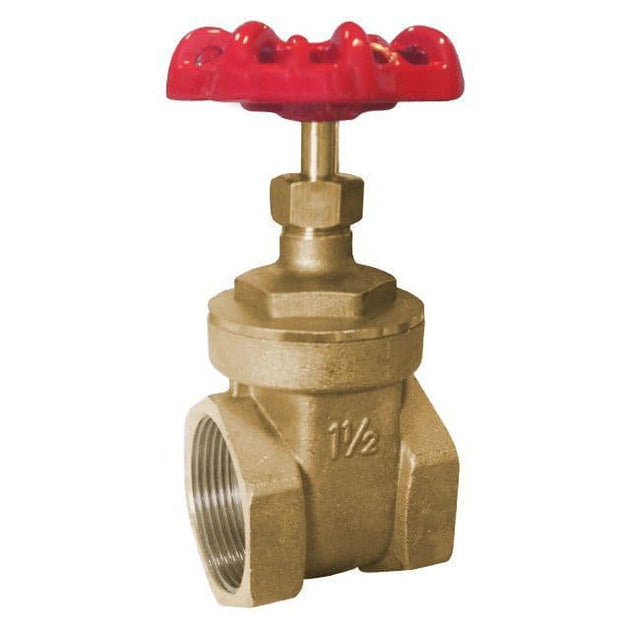

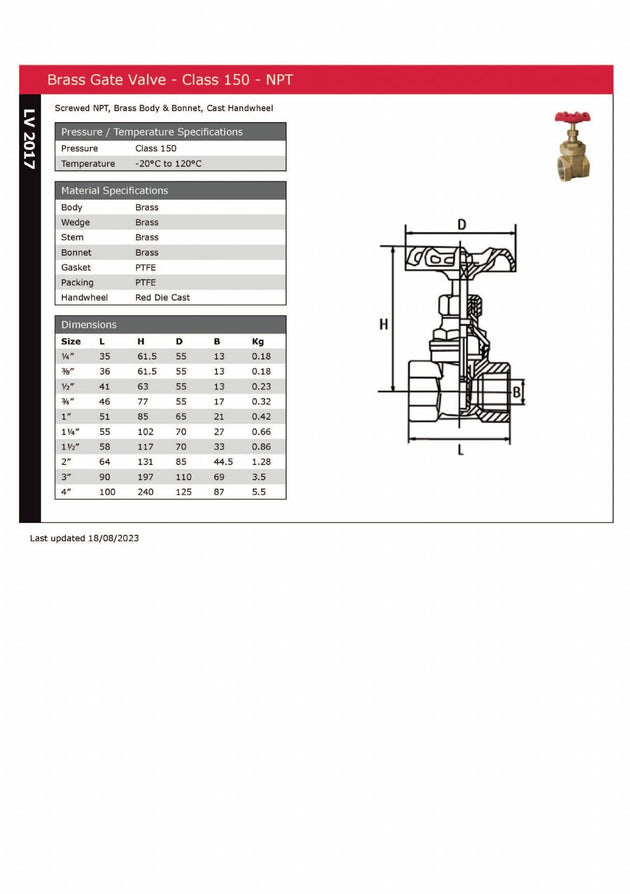

Brass Gate Valve Class 150 NPT
Regular price From £7.33Excl. tax: £6.06 -
Vendor: Pipetech

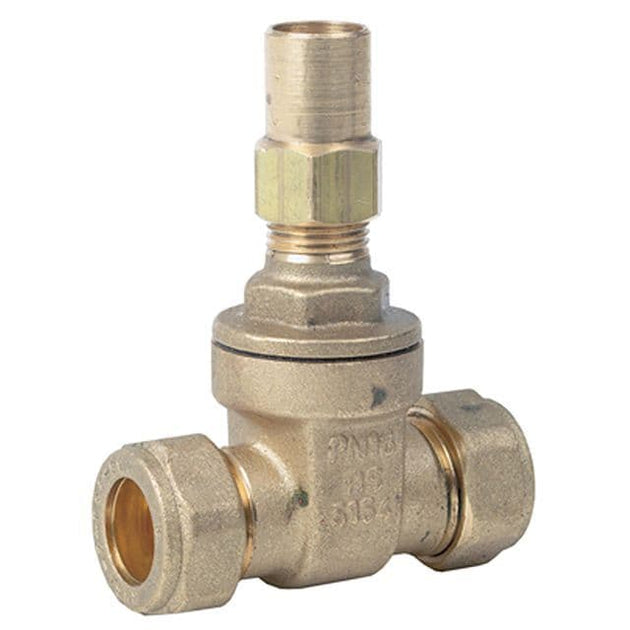

Brass Lockshield Gate Valve
