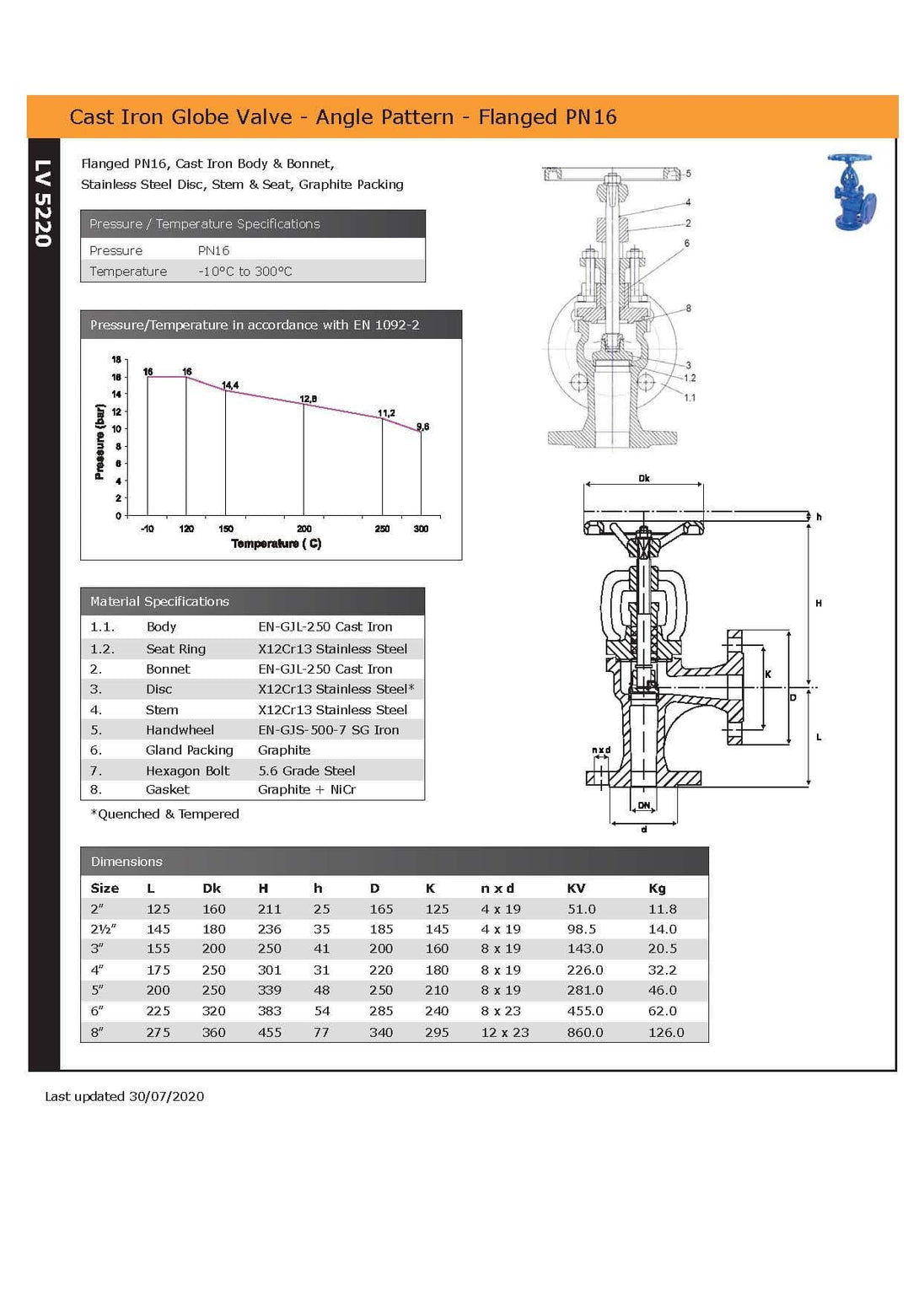

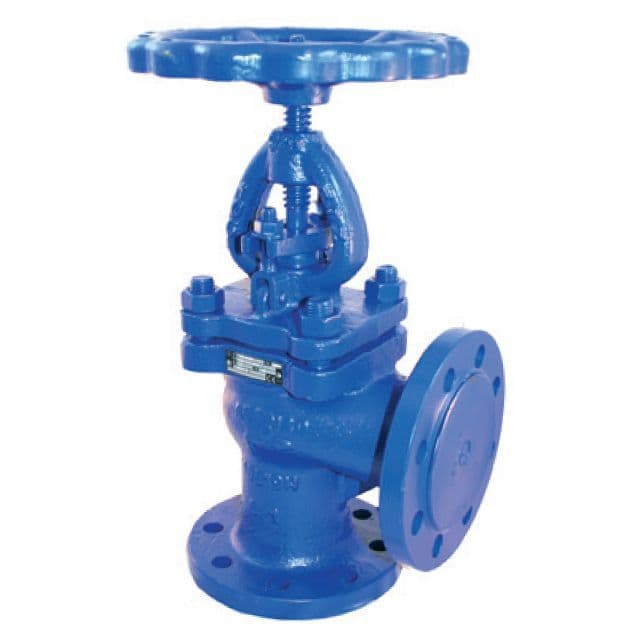

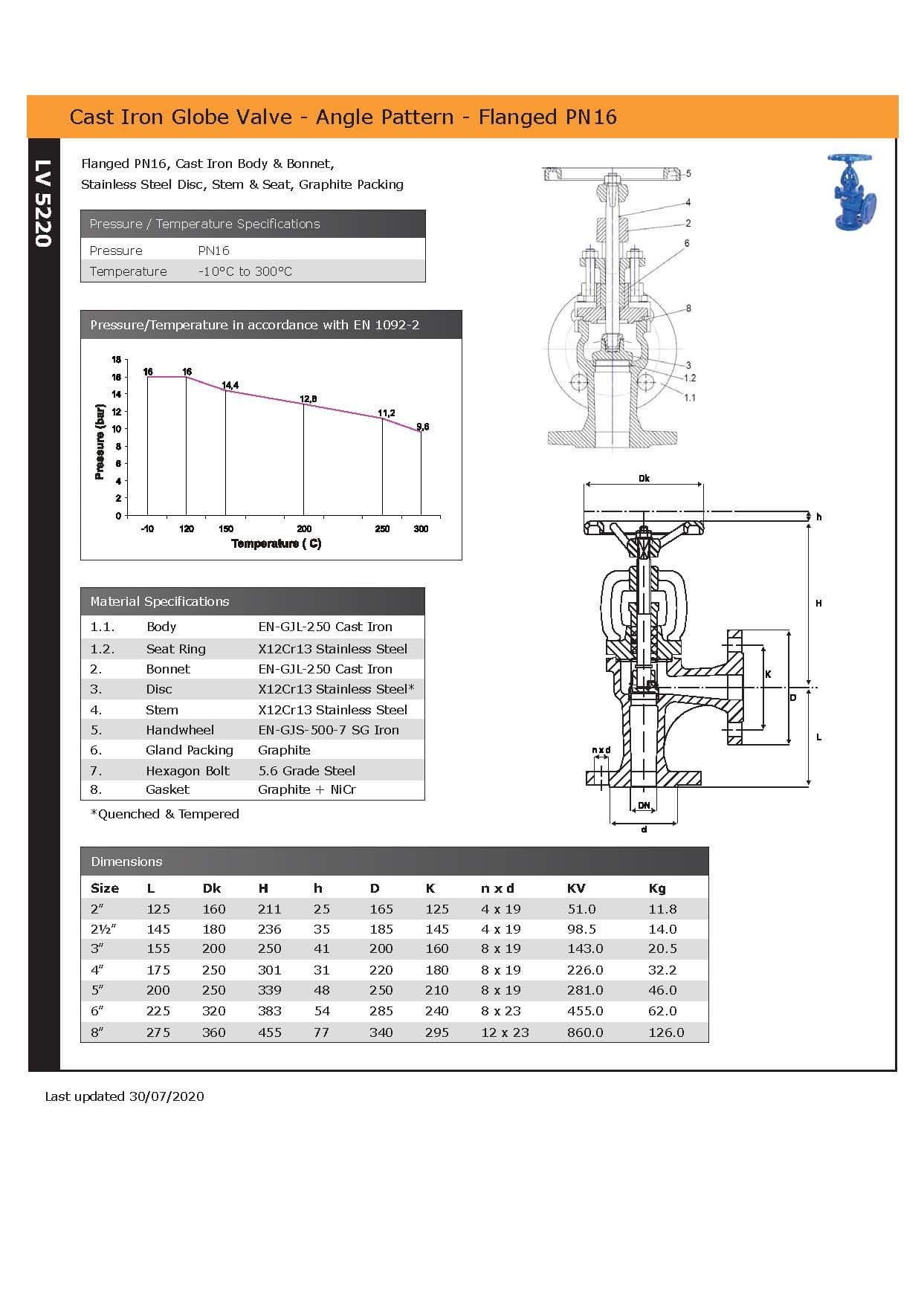

Overview of Cast Iron Globe Valve Angle Pattern Flanged PN16
Description
This angle-pattern cast iron globe valve combines flow control with a 90-degree change in direction, reducing the need for additional elbows. It is designed for PN16 systems where controlled flow and space efficiency are required.
Technical Data
- Body Material: Cast iron
- Pattern: Angle globe
- Stainless Steel Stem, Disk & Seat
- End Connections: Flanged PN16
- Pressure Rating: PN16
- Temperature Range: 10 °C to +300 °C
Key Features
- Integrated angle design reduces fittings
- Suitable for water and HVAC systems
- Robust cast iron construction
Installation & Application Notes
Commonly used in pump discharge lines, heating systems, and general utility services.
- Regular price
- £383.34
Overview of Cast Iron Globe Valve Angle Pattern Flanged PN16
Description
This angle-pattern cast iron globe valve combines flow control with a 90-degree change in direction, reducing the need for additional elbows. It is designed for PN16 systems where controlled flow and space efficiency are required.
Technical Data
- Body Material: Cast iron
- Pattern: Angle globe
- Stainless Steel Stem, Disk & Seat
- End Connections: Flanged PN16
- Pressure Rating: PN16
- Temperature Range: 10 °C to +300 °C
Key Features
- Integrated angle design reduces fittings
- Suitable for water and HVAC systems
- Robust cast iron construction
Installation & Application Notes
Commonly used in pump discharge lines, heating systems, and general utility services.
- Regular price
- £383.34
Overview of Cast Iron Globe Valve Angle Pattern Flanged PN16
Description
This angle-pattern cast iron globe valve combines flow control with a 90-degree change in direction, reducing the need for additional elbows. It is designed for PN16 systems where controlled flow and space efficiency are required.
Technical Data
- Body Material: Cast iron
- Pattern: Angle globe
- Stainless Steel Stem, Disk & Seat
- End Connections: Flanged PN16
- Pressure Rating: PN16
- Temperature Range: 10 °C to +300 °C
Key Features
- Integrated angle design reduces fittings
- Suitable for water and HVAC systems
- Robust cast iron construction
Installation & Application Notes
Commonly used in pump discharge lines, heating systems, and general utility services.
-
