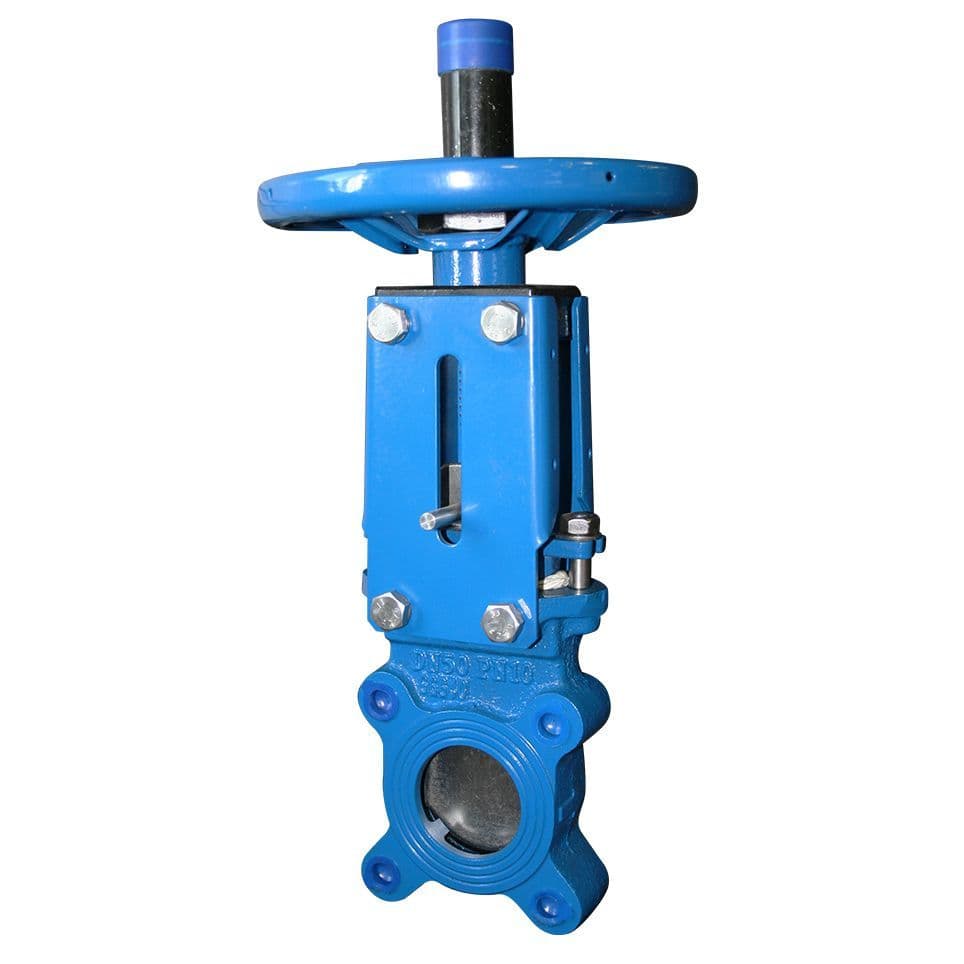

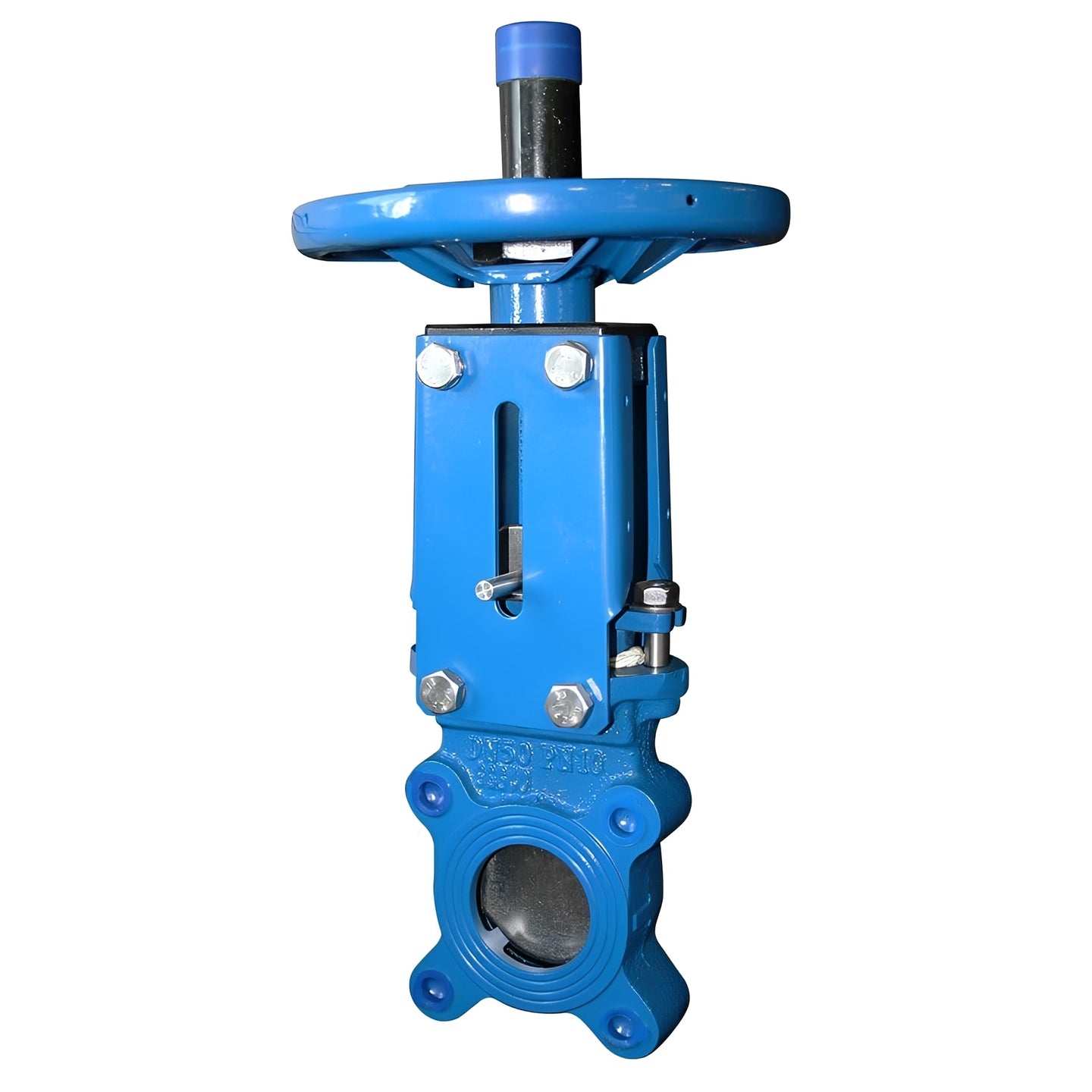

Overview of Cast Iron Knife Gate Valve Unidirectional Handwheel Operated Lugged PN10

Description
This lugged cast iron knife gate valve with handwheel operation offers dependable manual isolation for solid-bearing and viscous media in unidirectional pipelines. The lugged ends provide secure installation between flanges while allowing pipeline segments to be removed without disturbing the valve body. The cast iron body delivers strength and durability for general industrial service.

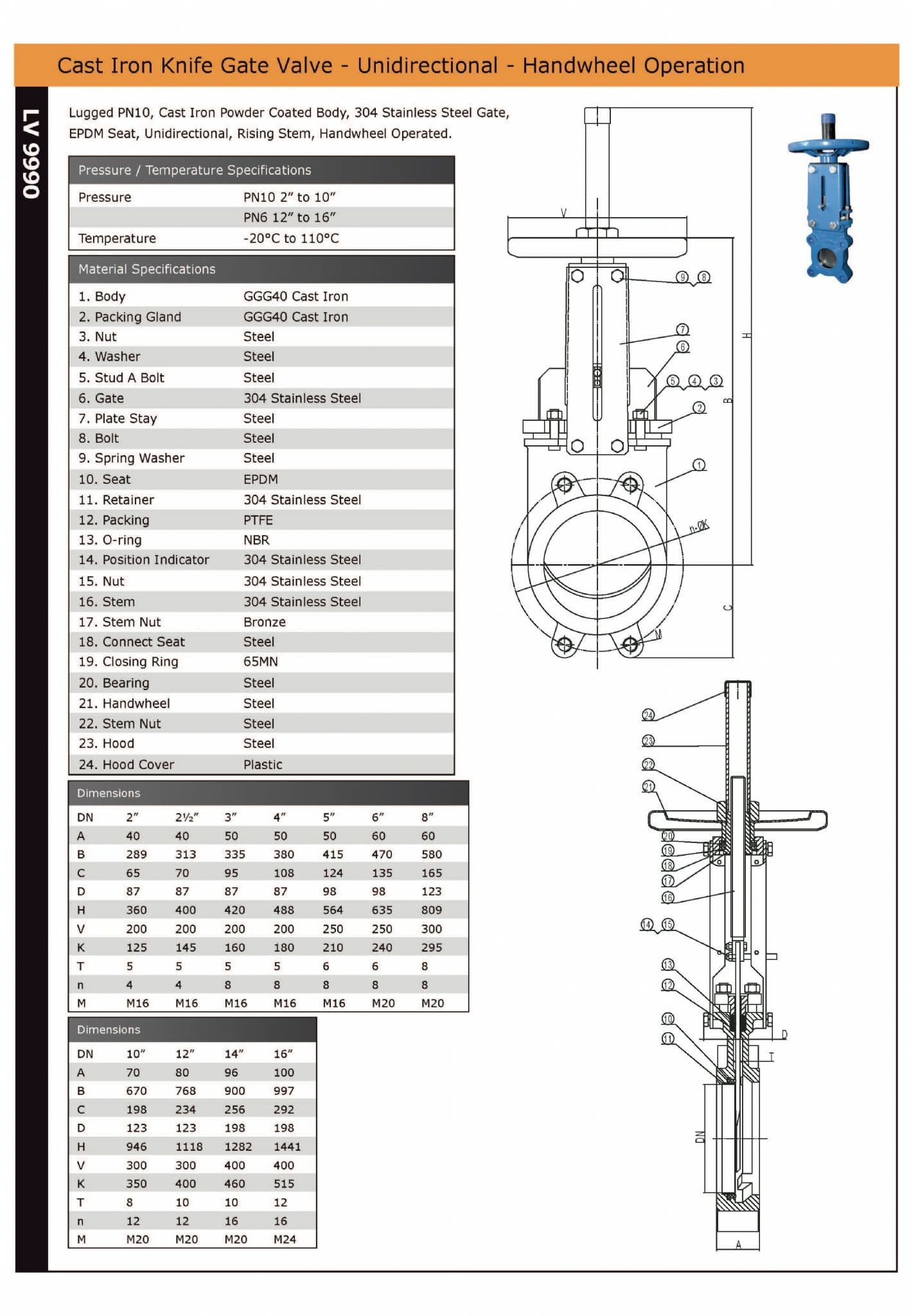

Technical Data

• Body Material: Cast Iron Powder Coated Body, 304 Stainless Steel Gate
• Valve Type: Knife gate, unidirectional
• Seat: EPDM
• End Connections: Lugged PN10
• Operation: Handwheel
• Pressure Rating: Rated PN10 2" to 10", Rated PN6 12" to 16"
• Temperature Range: 20 °C to +110 °C

Key Features

• Lugged flanged ends for secure mounting and easy removal
• Handwheel operation for manual control
• Strong cast iron construction

Installation & Application Notes
Install with correct flange alignment and ensure handle clearance. Suitable for wastewater, solid transport, and heavy industrial pipelines where manual control is acceptable.
