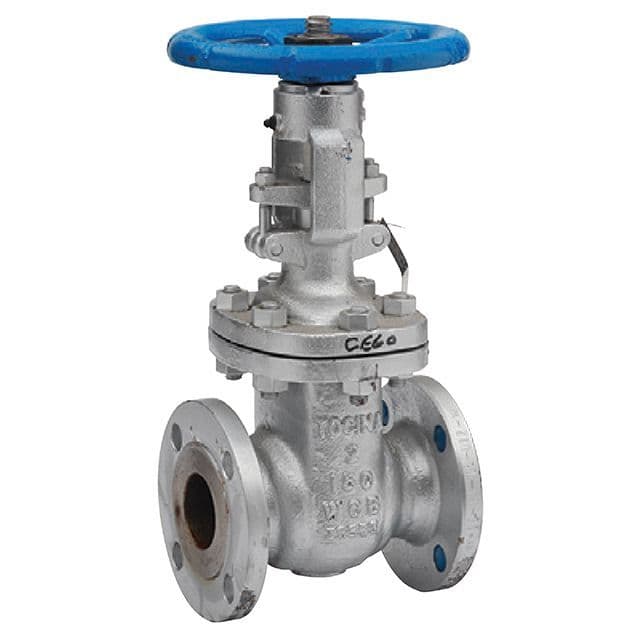

Cast Steel Gate Valve Flanged ANSI 300

Engineered for higher-pressure service, this cast steel gate valve features ANSI 300 flanged ends and a heavy-duty body construction. It delivers outstanding strength and resilience for demanding industrial environments.

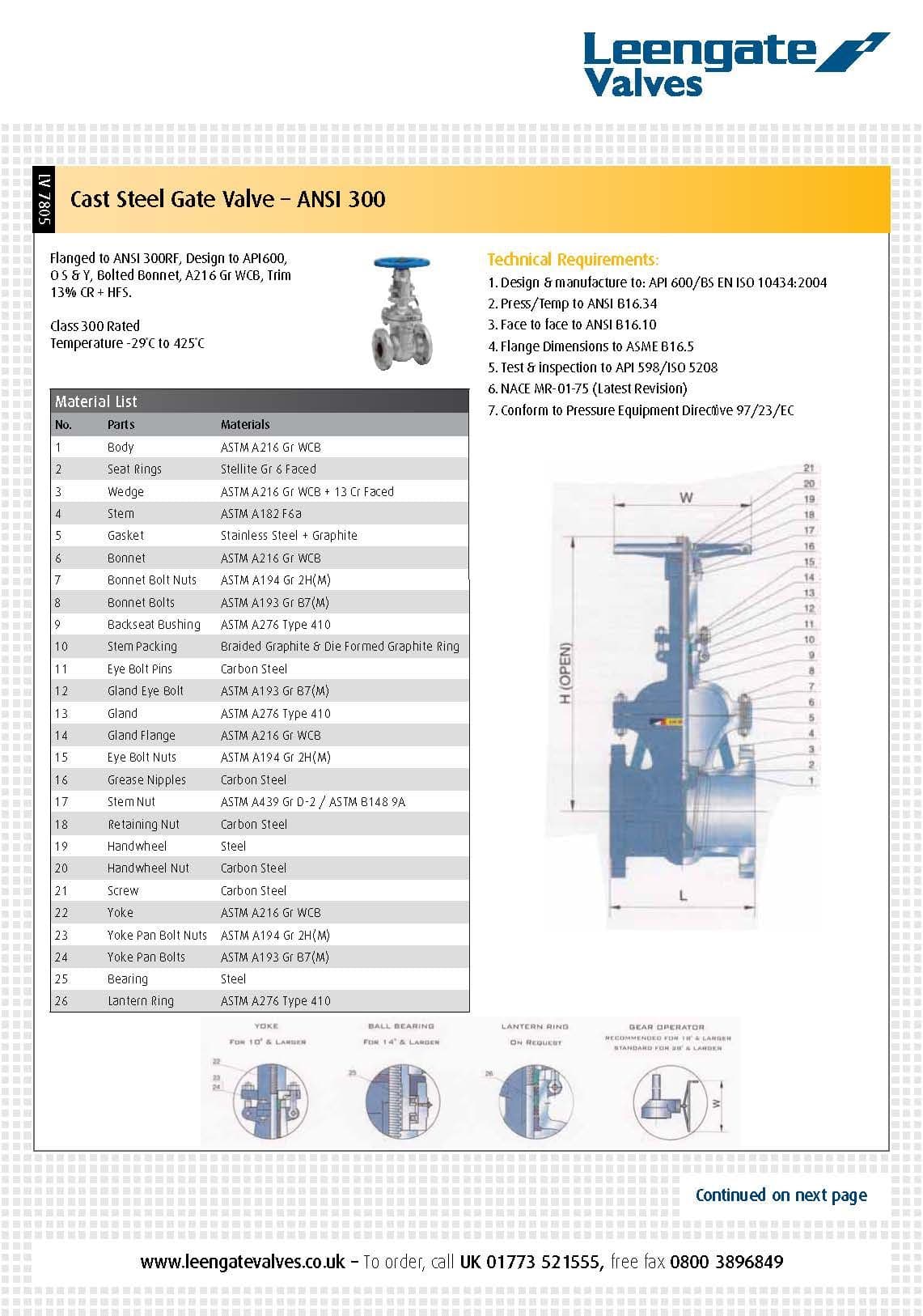

Technical Details

Body Material: Cast carbon steel (ASTM A216 WCB)
End Connection: ANSI B16.5 Class 300 raised-face flanges
Design Standard: API 600 / ASME B16.34
Pressure Rating: Class 300 (approx. 51 bar at ambient temperature)
Temperature Range: 29 °C to +425 °C
Seat Design: Metal-to-metal, bolted bonnet

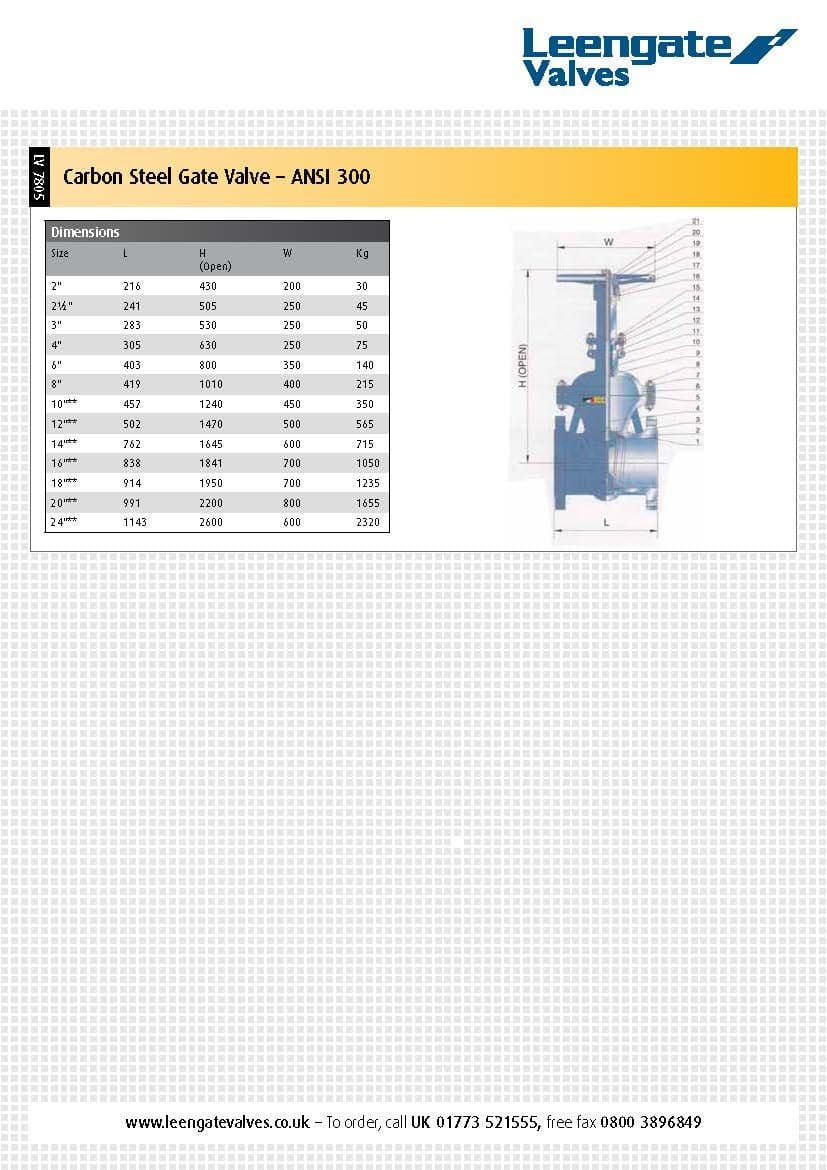

Sizes Available: DN50 (2) to DN300 (12)

Applications
Ideal for high-pressure steam, oil, and gas systems. The Class 300 rating ensures enhanced safety and sealing performance under demanding conditions, while its full-bore design supports efficient flow control with minimal energy loss.

Pipetech

Cast Steel Gate Valve Flanged ANSI 300

SKU V780509

Regular price: £366.59

Excl. tax: £302.97

Cast Steel Gate Valve Flanged ANSI 300

Engineered for higher-pressure service, this cast steel gate valve features ANSI 300 flanged ends and a heavy-duty body construction. It delivers outstanding strength and resilience for demanding industrial environments.

Technical Details

Body Material: Cast carbon steel (ASTM A216 WCB)
End Connection: ANSI B16.5 Class 300 raised-face flanges
Design Standard: API 600 / ASME B16.34
Pressure Rating: Class 300 (approx. 51 bar at ambient temperature)
Temperature Range: 29 °C to +425 °C
Seat Design: Metal-to-metal, bolted bonnet
Sizes Available: DN50 (2) to DN300 (12)

Applications
Ideal for high-pressure steam, oil, and gas systems. The Class 300 rating ensures enhanced safety and sealing performance under demanding conditions, while its full-bore design supports efficient flow control with minimal energy loss.

Regular price: £366.59

Excl. tax: £302.97

Size: 2" 21/2" 3" 4" 6" 8"

Product variants

Quantity

Product Description

Cast Steel Gate Valve Flanged ANSI 300

Engineered for higher-pressure service, this cast steel gate valve features ANSI 300 flanged ends and a heavy-duty body construction. It delivers outstanding strength and resilience for demanding industrial environments.

Technical Details

Body Material: Cast carbon steel (ASTM A216 WCB)
End Connection: ANSI B16.5 Class 300 raised-face flanges
Design Standard: API 600 / ASME B16.34
Pressure Rating: Class 300 (approx. 51 bar at ambient temperature)
Temperature Range: 29 °C to +425 °C
Seat Design: Metal-to-metal, bolted bonnet
Sizes Available: DN50 (2) to DN300 (12)

Applications
Ideal for high-pressure steam, oil, and gas systems. The Class 300 rating ensures enhanced safety and sealing performance under demanding conditions, while its full-bore design supports efficient flow control with minimal energy loss.
