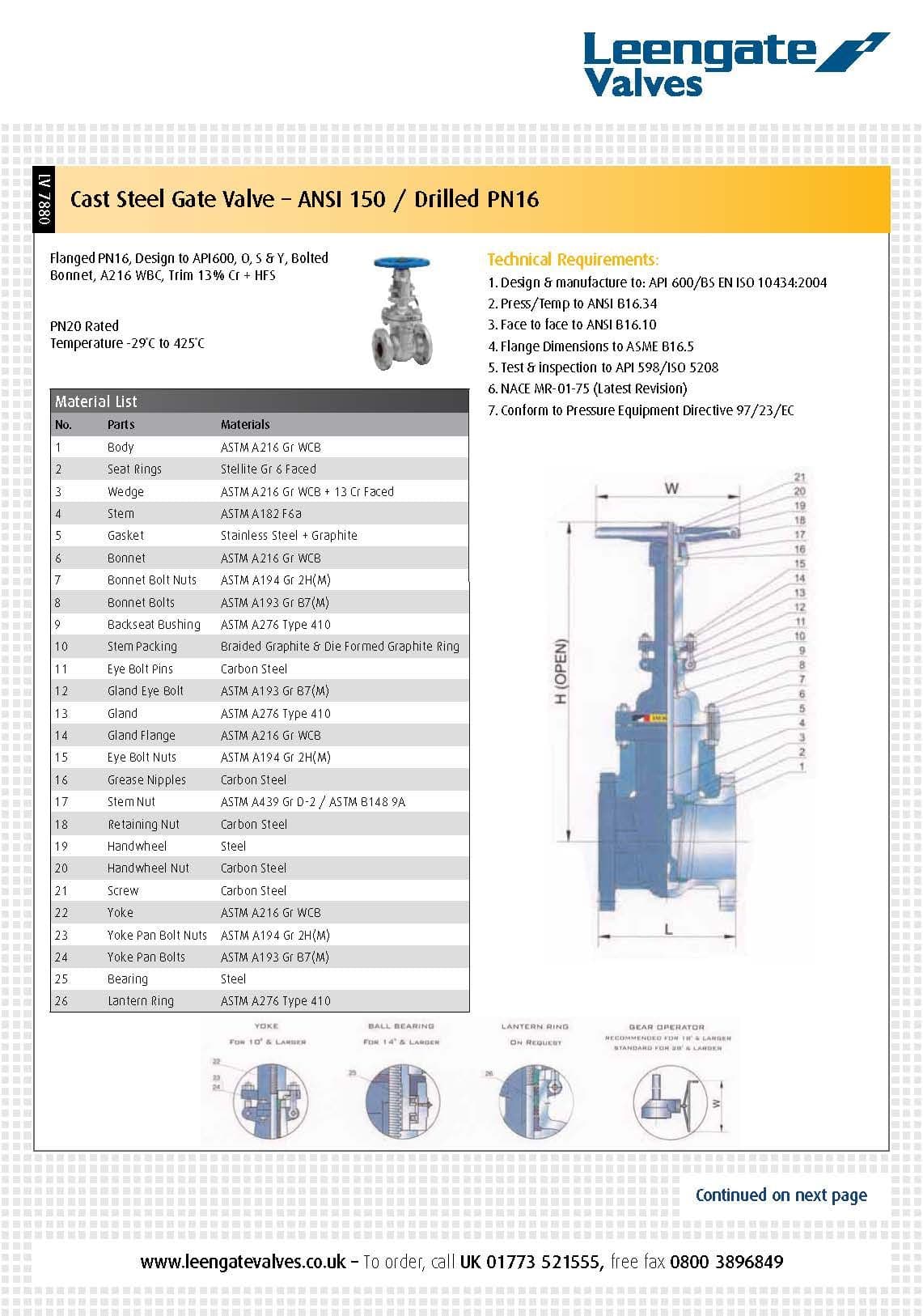

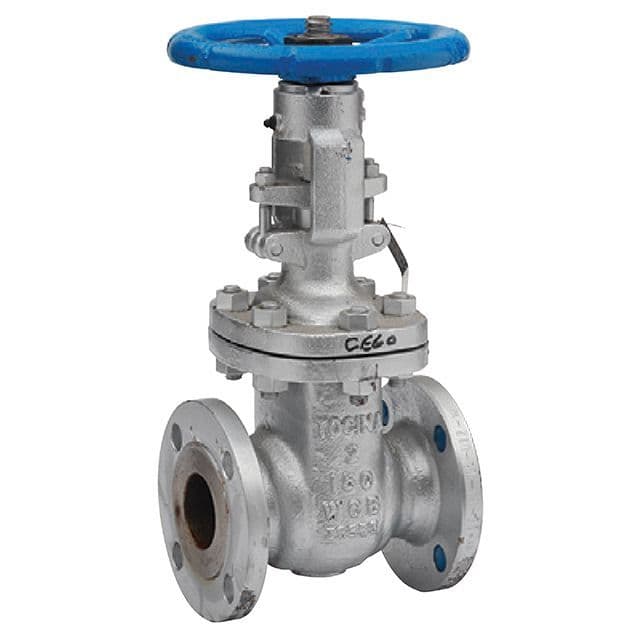

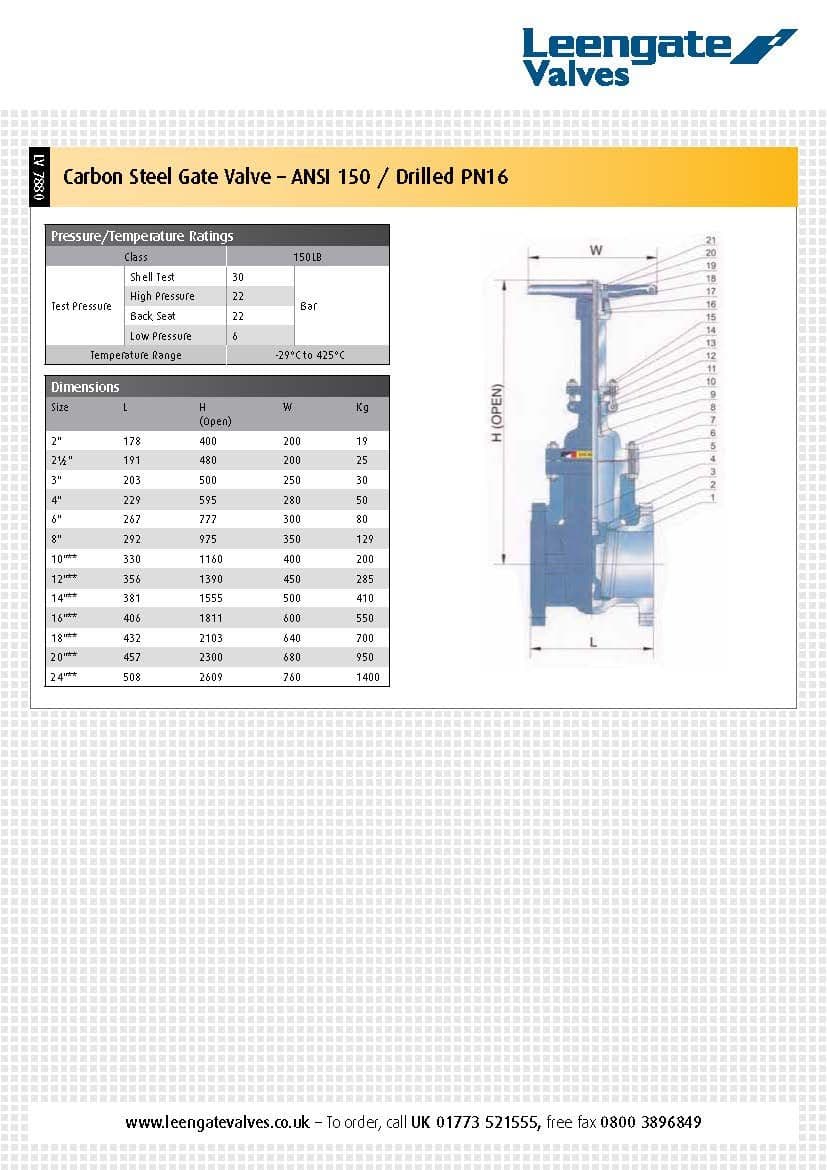

Cast Steel Gate Valve Flanged PN16
This cast steel gate valve provides a cost-effective and durable isolation solution for industrial and utility service lines. It is designed for use in medium-pressure flanged systems rated PN16.
Technical Details
- Body Material: Cast carbon steel
- Connection Type: Flanged PN16 (EN 1092-1 drilling)
- Pressure Rating: CL150
- Temperature Range: 29 °C to +425 °C
- Seat Design: Metal-seated, bolted bonnet
- Sizes Available: DN50 to DN300
Applications
Suitable for hot water, steam, air, and general process applications. The cast steel body provides a reliable balance of strength, performance, and affordability for mid-pressure installations.
Cast Steel Gate Valve Flanged PN16
This cast steel gate valve provides a cost-effective and durable isolation solution for industrial and utility service lines. It is designed for use in medium-pressure flanged systems rated PN16.
Technical Details
- Body Material: Cast carbon steel
- Connection Type: Flanged PN16 (EN 1092-1 drilling)
- Pressure Rating: CL150
- Temperature Range: 29 °C to +425 °C
- Seat Design: Metal-seated, bolted bonnet
- Sizes Available: DN50 to DN300
Applications
Suitable for hot water, steam, air, and general process applications. The cast steel body provides a reliable balance of strength, performance, and affordability for mid-pressure installations.
- Regular price
- £278.61
Cast Steel Gate Valve Flanged PN16
This cast steel gate valve provides a cost-effective and durable isolation solution for industrial and utility service lines. It is designed for use in medium-pressure flanged systems rated PN16.
Technical Details
- Body Material: Cast carbon steel
- Connection Type: Flanged PN16 (EN 1092-1 drilling)
- Pressure Rating: CL150
- Temperature Range: 29 °C to +425 °C
- Seat Design: Metal-seated, bolted bonnet
- Sizes Available: DN50 to DN300
Applications
Suitable for hot water, steam, air, and general process applications. The cast steel body provides a reliable balance of strength, performance, and affordability for mid-pressure installations.
-
