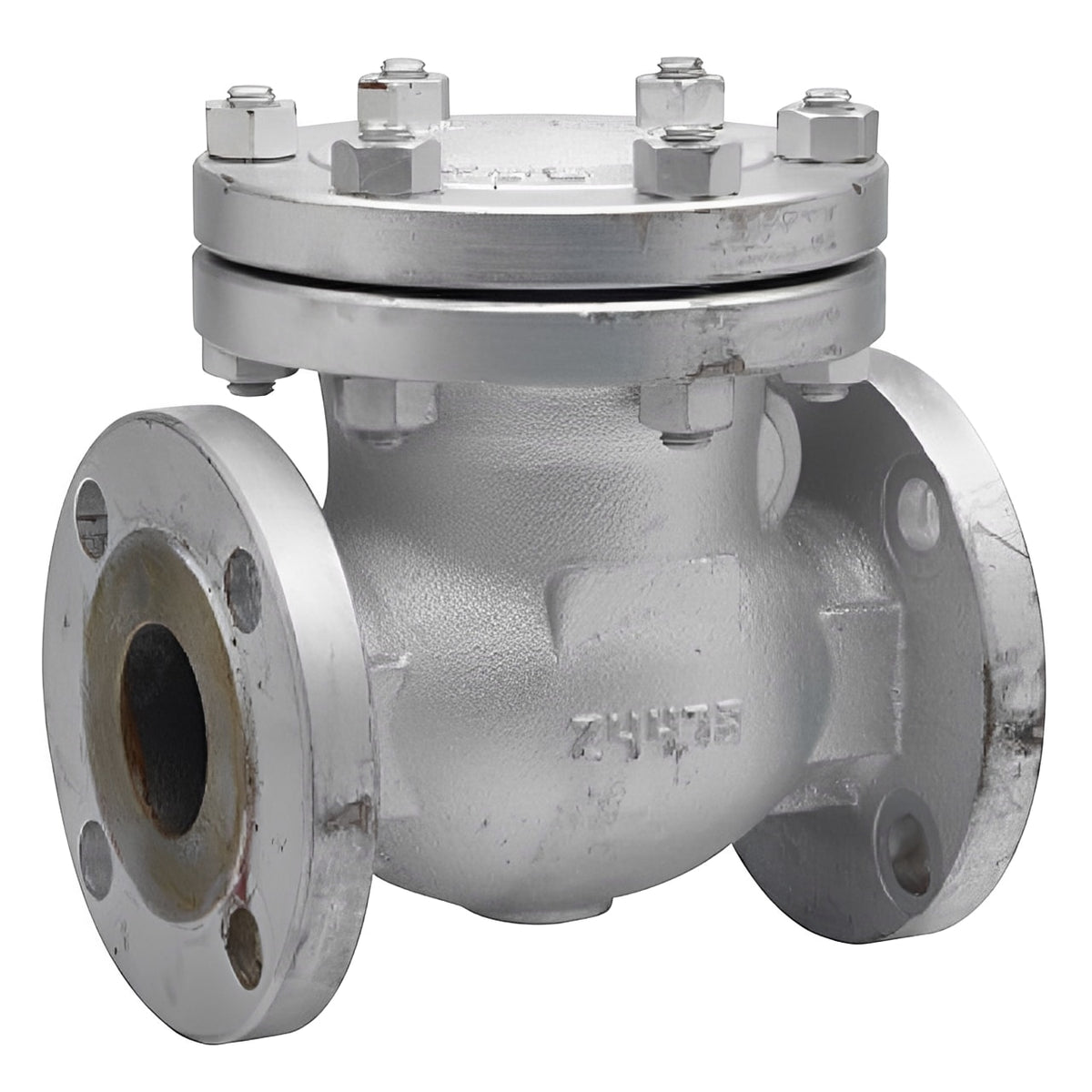

Cast Steel Swing Check Valve - Flanged ANSI 300 Class

SKU V782509
£303.74
Excl. tax:  £253.12
£303.74
Excl. tax:  £253.12
Size:
Cast Steel Swing Check Valve - Flanged ANSI 300 Class for reliable one-way flow in high-pressure applications. Cast Steel Swing Check Valve - Flanged ANSI 300 Class specifications and details.
Cast Steel Swing Check Valve - Flanged ANSI 300 Class for reliable one-way flow in high-pressure applications. Cast Steel Swing Check Valve - Flanged ANSI 300 Class specifications and details.

The Cast Steel Swing Check Valve with flanged ANSI 300 Class ends is designed for higher-pressure applications, ensuring reliable one-way flow in demanding industrial systems. This robust valve features a cast steel body and a swing disc mechanism, providing strong performance and minimal flow restriction under elevated service conditions.

  • High-Pressure Performance: Specifically configured for Class 300 (~49 bar) service, making it suitable for high-pressure process environments.
  • Durable Construction: Built with a cast carbon steel body and a metal-seated swing disc for lasting reliability in elevated temperatures.
  • Standardised Connections: Features ANSI 300 flange dimensions per ASME B16.5 to support global industrial system integration.
  • Versatile Flow Control: Ideal for preventing backflow in steam mains, petrochemical services, and industrial feed lines.

This valve is recommended for horizontal flow orientation to ensure optimal operation. Its high-pressure capability and durable materials make it an essential component for maintaining system integrity in professional process services.

Body Material Cast carbon steel (e.g., ASTM A216 WCB)
Connection Type ANSI 300 (Class 300) flange per ASME B16.5
Seat/Disc Swing disc, metal seat
Pressure Rating CL300 (~49 bar)
Temperature Range Up to +435°C
Flow Orientation Horizontal recommended
