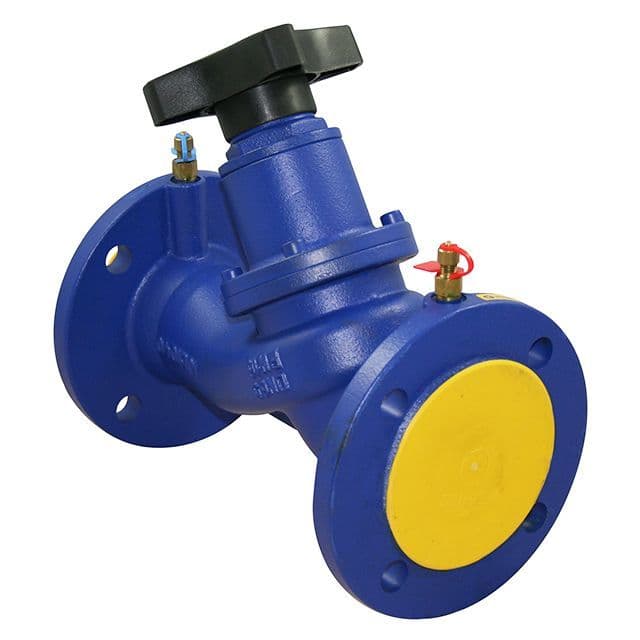

Double Regulating Balancing Valve VODRV (Flanged PN16)

Combining the functionality of double regulation with the strength of a flanged connection, this valve is designed for accurate control and long-term durability in large-scale hydronic systems. The variable orifice allows precise adjustment and repeatable performance after commissioning.

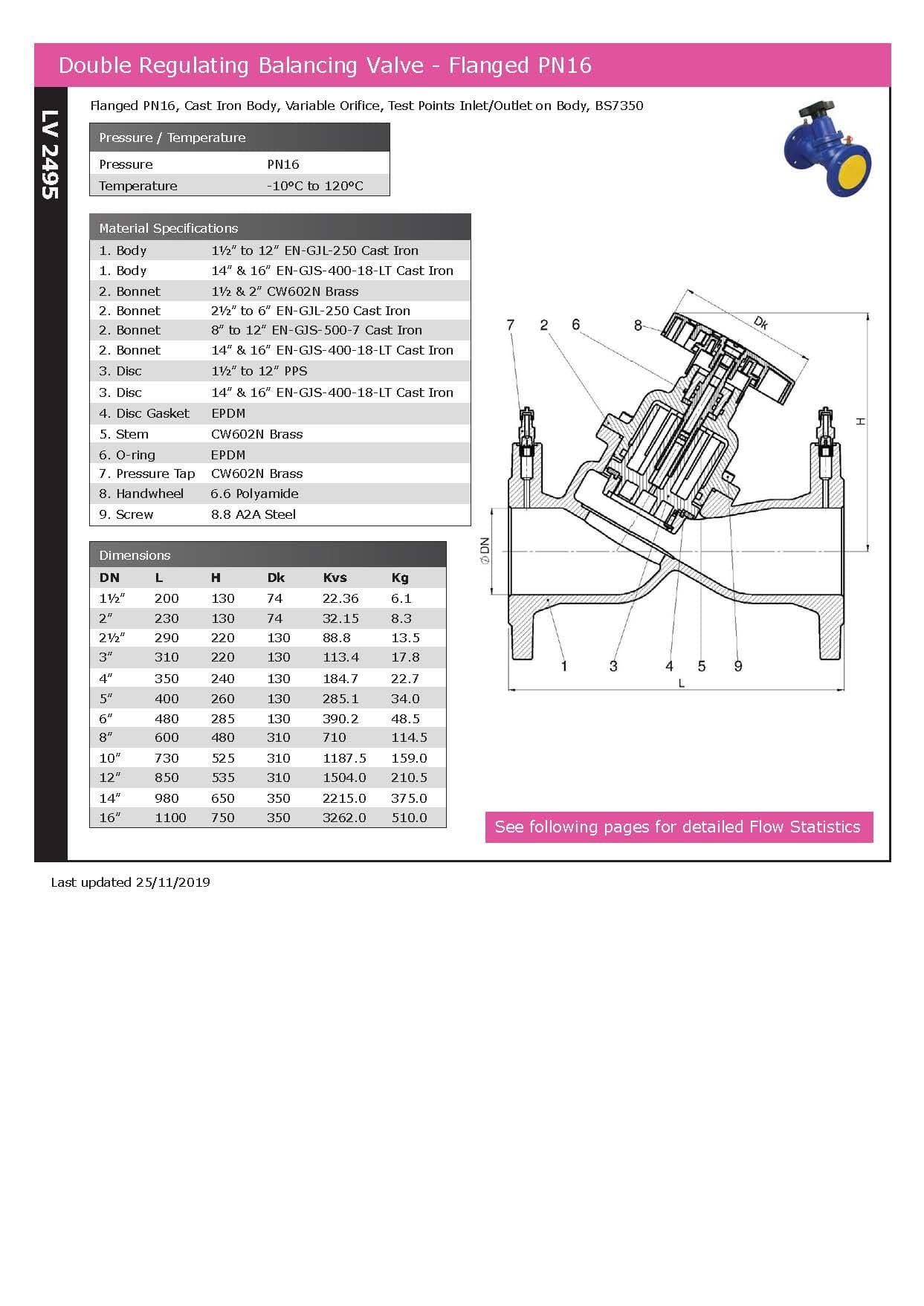

Technical Details

• Body Material: Cast iron
• Connection Type: Flanged, PN16
• Pressure Rating: PN16 (16 bar)
• Temperature Range: -10 °C to +120 °C
• Design Features: Dual regulating design with test points for differential pressure measurement
• Operation: Adjustable handwheel for flow setting and isolation

Applications
Perfect for commercial HVAC and building services where system accuracy and repeatability are essential. The VODRV provides stable performance and is ideal for use in primary and secondary hydronic circuits.
