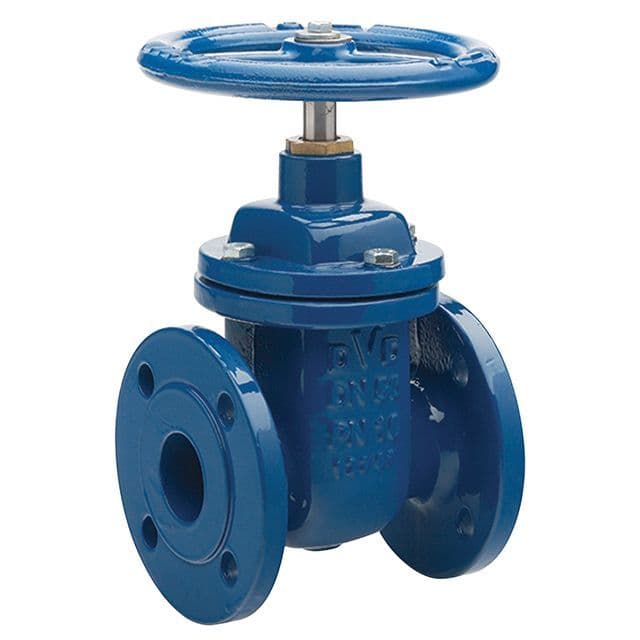

Ductile Iron Gate Valve Flanged PN16 (BS 5163, WRAS Approved)
This WRAS-approved ductile iron gate valve is designed for potable water, wastewater, and utility applications. It conforms to BS 5163 Part 1: 2004 and EN 1074 standards, ensuring long-term reliability and compliance with UK water regulations.
Technical Details
- Body Material: Ductile iron (GGG 40/50)
- Coating: Fusion-bonded epoxy inside and out for corrosion protection
- Seat Material: Resilient rubber EPDM
- Stem Type: Inside screw, non-rising stem
- Flange Standard: PN16 (EN 1092-2)
- Pressure Rating: PN16 (16 bar)
- Temperature Range: 10 °C to +70 °C
- Sizes Available: DN50 (2) to DN300 (12)
- Certification: WRAS approved for potable water
Applications
Ideal for municipal water networks, treatment plants, and buried services where hygiene, durability, and easy maintenance are key. The ductile iron body provides superior strength compared with traditional cast iron, while the resilient seat guarantees leak-tight sealing and low torque operation.
- Regular price
- £219.95
