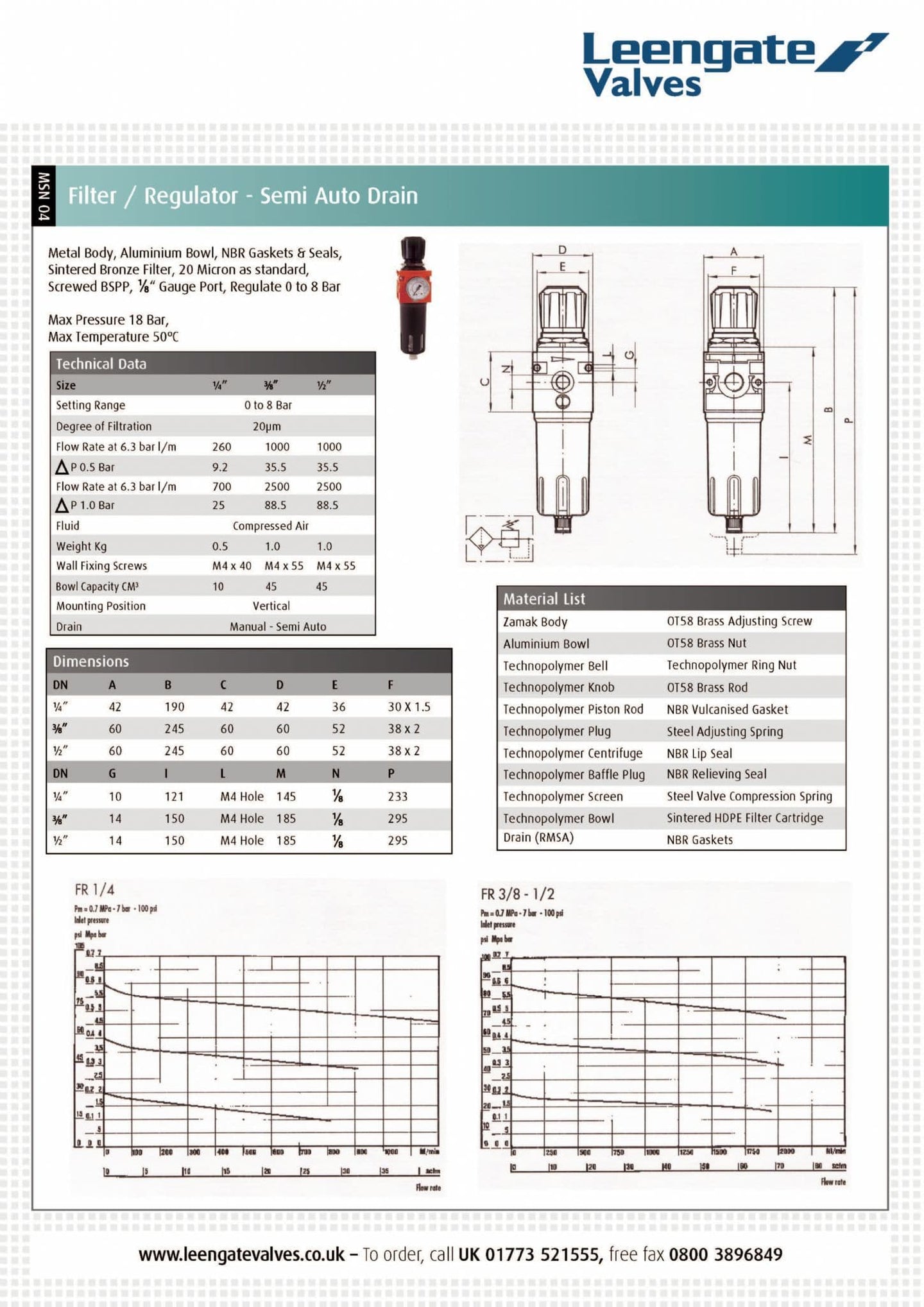

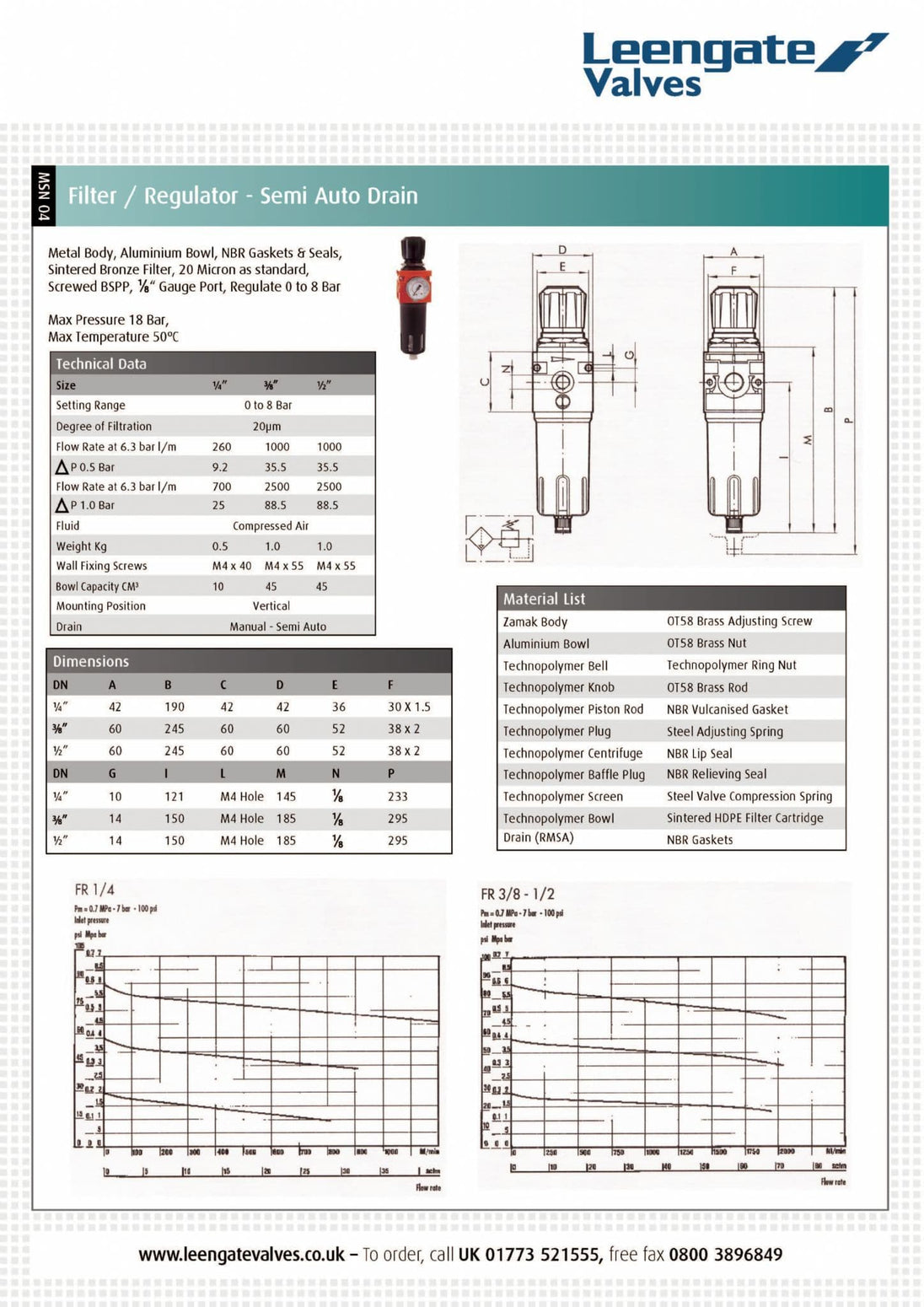

Overview of Filter Regulator Semi-Automatic Drain

Description
This combined filter regulator unit integrates air filtration, pressure regulation, and a semi-automatic condensate drain in one compact assembly. It streamlines compressed air treatment by providing clean, dry, and pressure-controlled air to tools and equipment.

Technical Data

• Body Material: Metal Body, Aluminium Bowl
• Functions: Filtration + pressure regulation
• Drain: Semi-automatic
• Adjustment: Regulator with pressure gauge port
• Temperature Range: Upto 50 Degrees
• Connection: BSPP threaded
• Media: Compressed air
• Operating Pressure: Regulate 0 to 8 Bar
• Maximum Pressure: 18 Bar

Key Features

• Combines filtration and regulation
• Semi-automatic drain reduces condensate issues
• Simplifies installation and maintenance

Installation & Application Notes
Fit at the point of system entry or before sensitive equipment. Use gauge ports to monitor regulated pressure.
