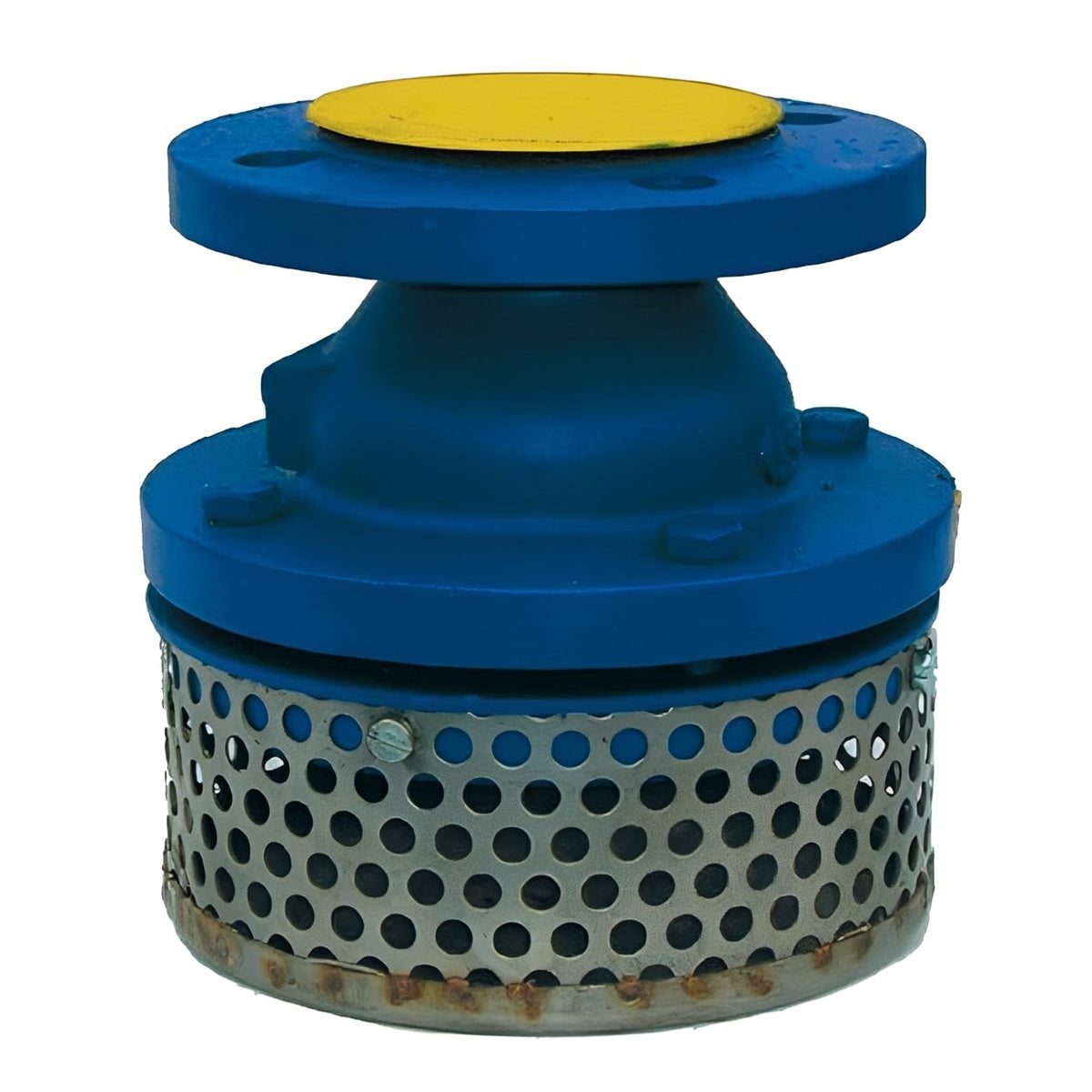

This flanged foot valve and strainer is designed for pump suction lines and intake systems, providing a reliable solution to prevent backflow and block debris. The robust cast iron construction and PN10 flanged connection make it ideal for utility water mains, irrigation systems, and low-pressure water applications.

• Durable Construction: Features a cast iron (EN-GJL-250) body with a protective epoxy coating to resist corrosion during water service.
• Integrated Strainer: Equipped with a stainless steel 8mm mesh strainer element to protect pumps and pipelines from damaging debris.
• Secure Sealing: Utilises an EPDM seal with a back seat and a cast iron disc for dependable one-way flow control.
• Standard Connections: Designed with full-face flanged end connections rated at PN10 (10 bar nominal) in accordance with EN/AS standards.
• Versatile Application: Suitable for suction lines on booster pumps, water treatment plants, and reservoir draw systems within a temperature range of -10°C to +90°C.

Engineered for minimal head loss, this foot valve ensures an optimised flow path while offering a low-maintenance solution for demanding water intake environments.
