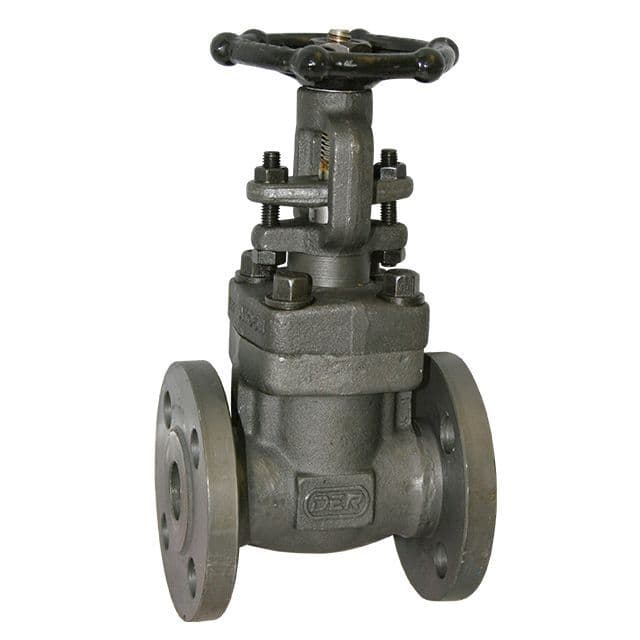

Forged Steel Gate Valve Flanged ANSI 150
A robust forged steel valve with ANSI 150 flanged ends, designed for dependable isolation in process and utility systems. It offers easy maintenance access while maintaining high-temperature and pressure resistance.
Technical Details
- Body Material: Forged carbon steel
- Connection Type: ANSI 150 raised-face flanges
- Pressure Rating: Class 150 (19.6 bar at ambient temperature)
- Temperature Range: -29 °C to +425 °C
- Seat Design: Solid wedge, bolted bonnet
- Sizes Available: DN50 to DN300
Applications
Commonly used in chemical plants, heating networks, and general industrial systems. The flanged connection ensures simple removal for inspection and maintenance.
- Regular price
- £87.98
Forged Steel Gate Valve Flanged ANSI 150
A robust forged steel valve with ANSI 150 flanged ends, designed for dependable isolation in process and utility systems. It offers easy maintenance access while maintaining high-temperature and pressure resistance.
Technical Details
- Body Material: Forged carbon steel
- Connection Type: ANSI 150 raised-face flanges
- Pressure Rating: Class 150 (19.6 bar at ambient temperature)
- Temperature Range: -29 °C to +425 °C
- Seat Design: Solid wedge, bolted bonnet
- Sizes Available: DN50 to DN300
Applications
Commonly used in chemical plants, heating networks, and general industrial systems. The flanged connection ensures simple removal for inspection and maintenance.
- Regular price
- £87.98
Forged Steel Gate Valve Flanged ANSI 150
A robust forged steel valve with ANSI 150 flanged ends, designed for dependable isolation in process and utility systems. It offers easy maintenance access while maintaining high-temperature and pressure resistance.
Technical Details
- Body Material: Forged carbon steel
- Connection Type: ANSI 150 raised-face flanges
- Pressure Rating: Class 150 (19.6 bar at ambient temperature)
- Temperature Range: -29 °C to +425 °C
- Seat Design: Solid wedge, bolted bonnet
- Sizes Available: DN50 to DN300
Applications
Commonly used in chemical plants, heating networks, and general industrial systems. The flanged connection ensures simple removal for inspection and maintenance.
-
