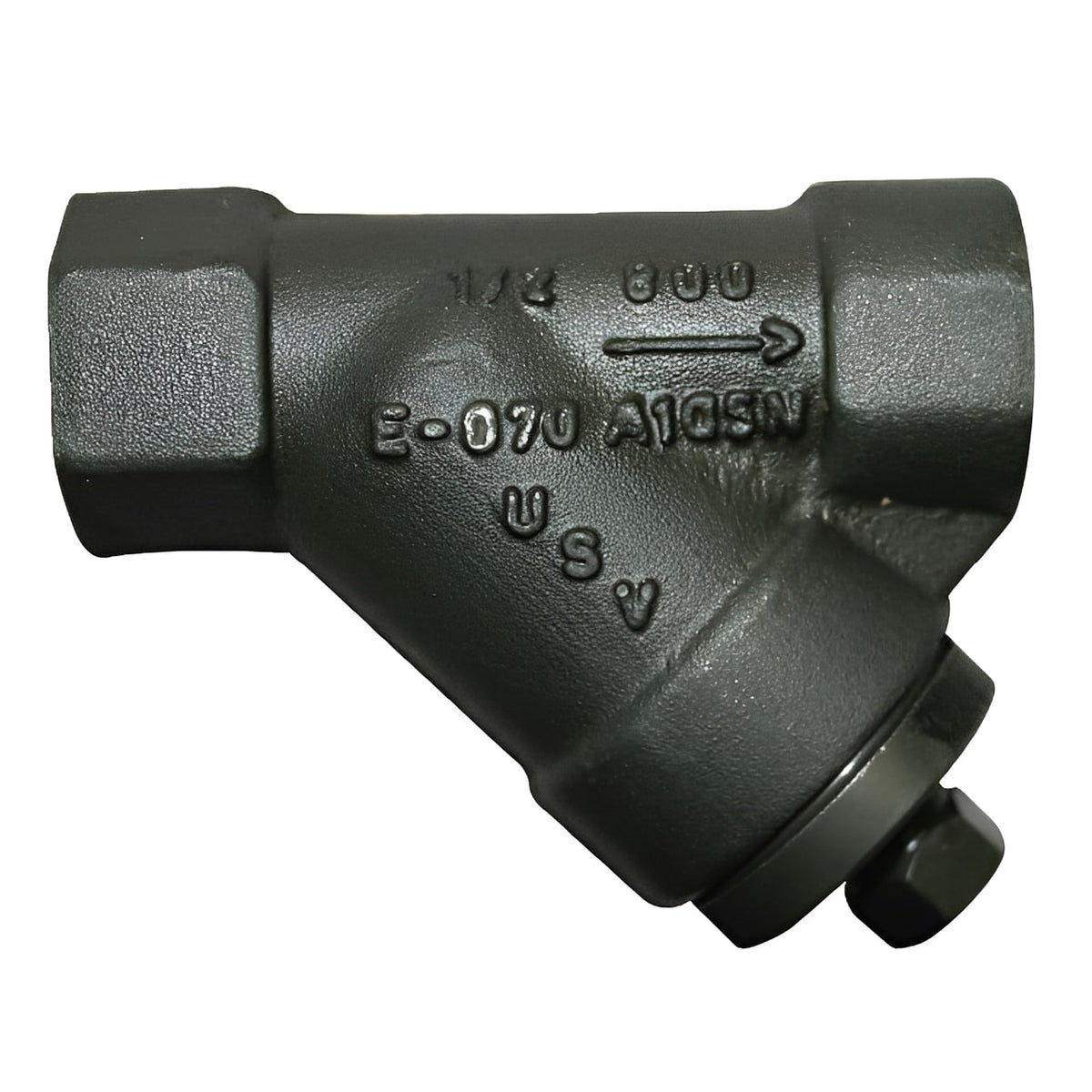

• Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh for industrial applications and reliable filtration.

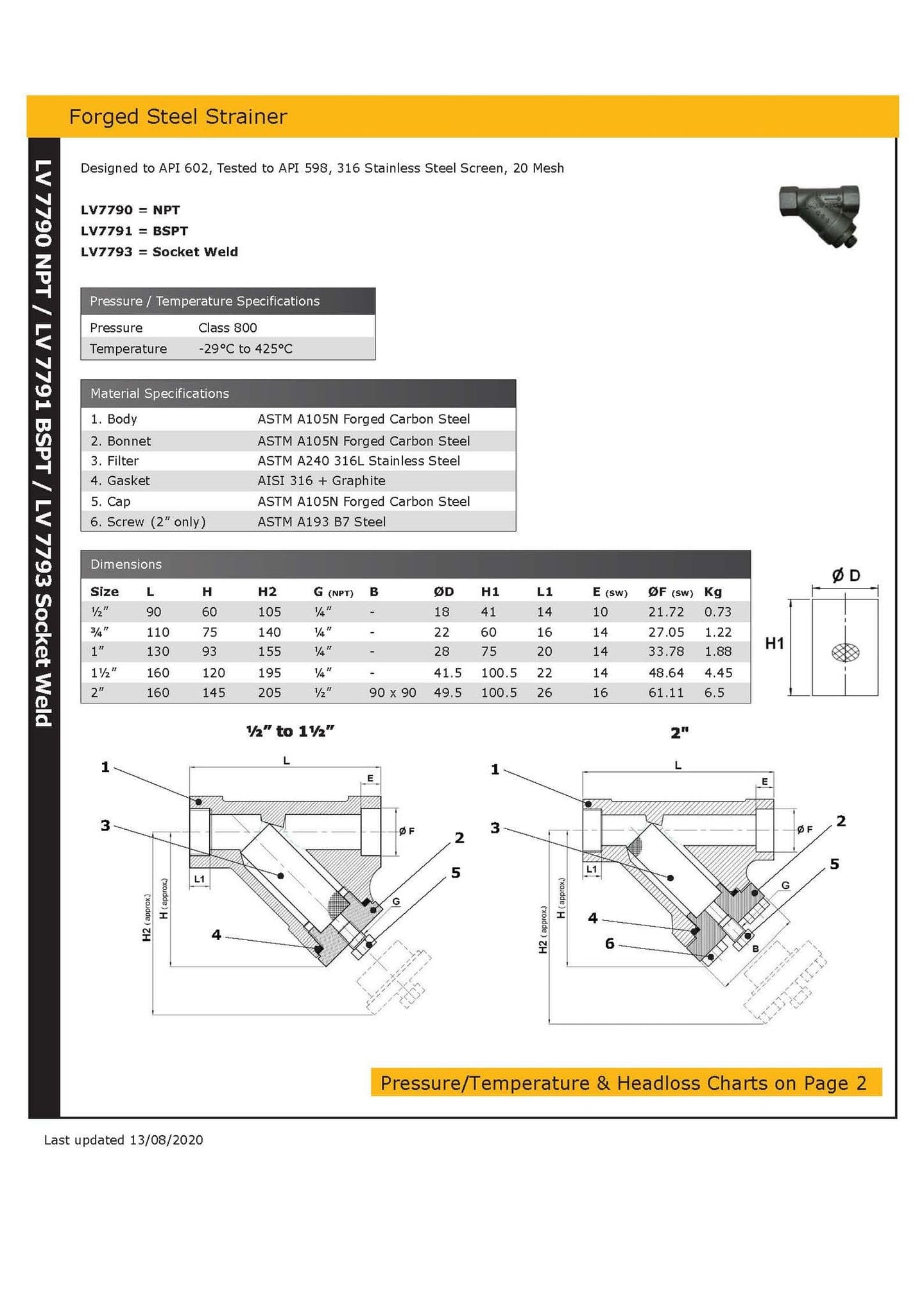

  • Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh technical specifications and details

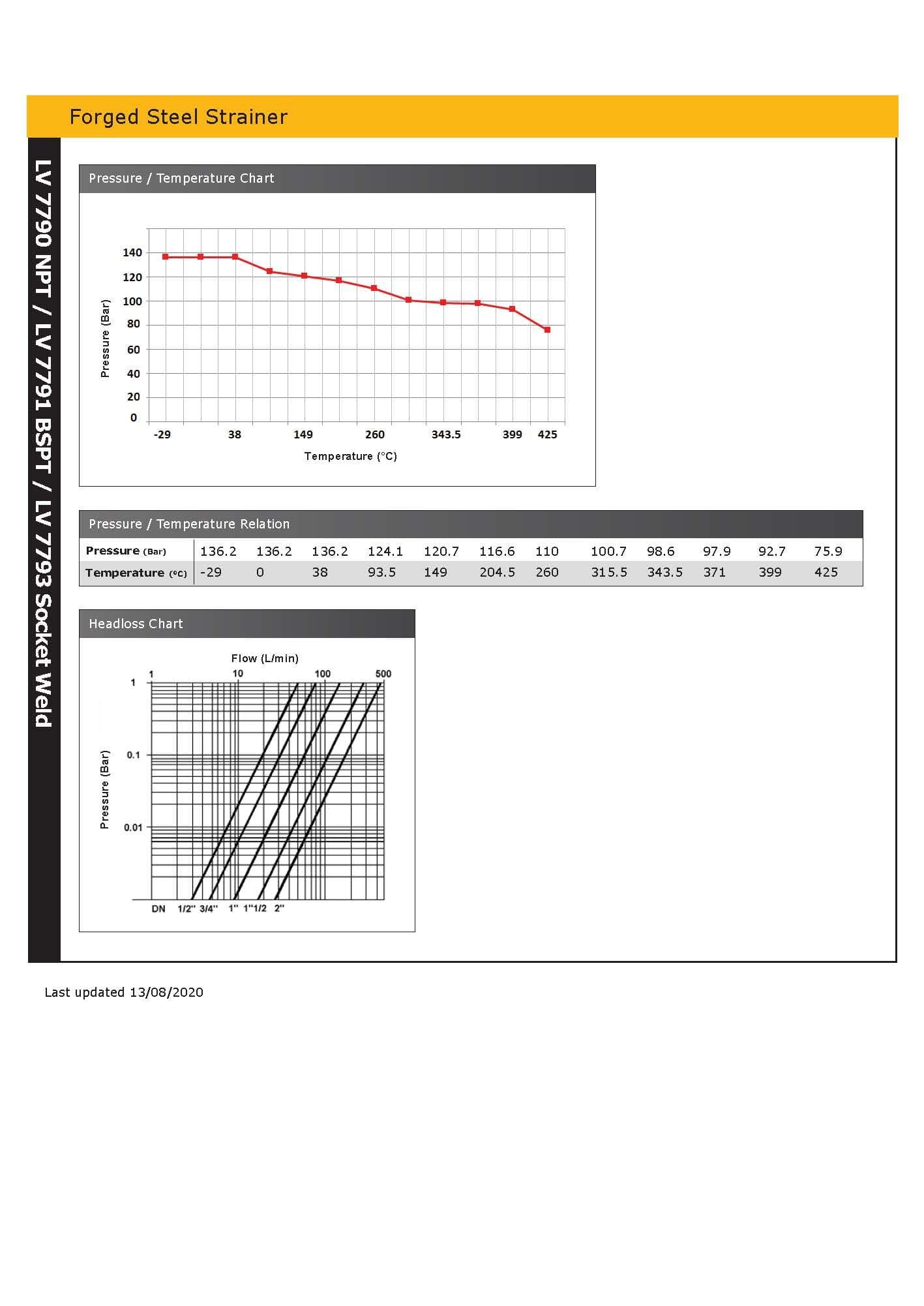

  • Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh pressure and temperature charts for industrial applications.
Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh for industrial applications and reliable filtration.
Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh technical specifications and details
Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh pressure and temperature charts for industrial applications.

Pipetech

Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh

SKU V779304
£40.85
Excl. tax:  £34.04
£40.85
Excl. tax:  £34.04
Size:
Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh for industrial applications and reliable filtration. Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh technical specifications and details Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh pressure and temperature charts for industrial applications.
Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh for industrial applications and reliable filtration. Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh technical specifications and details Forged Steel Strainer Class 800 A105 Socket Weld - 20 Mesh pressure and temperature charts for industrial applications.

This Forged Steel Strainer Class 800 A105 is designed for high-pressure industrial applications, providing reliable filtration and protection for your piping systems. Built to rigorous standards, this socket weld strainer ensures the removal of unwanted particles to maintain the integrity of downstream equipment.

  • Durable Construction: Manufactured from high-quality A105 forged steel to API 602 standards for enhanced strength and longevity.
  • Effective Filtration: Features a robust 316 stainless steel screen with a 20 mesh density to capture debris efficiently.
  • High Performance: Engineered to withstand a maximum pressure of 136.2 Bar and a wide temperature range from -29°C to 425°C.
  • Rigorous Testing: Every unit is tested to API 598 specifications to ensure leak-proof performance and safety in demanding environments.

Ideal for critical fluid control, this strainer offers a secure socket weld connection for a permanent, pressure-tight joint in your pipeline.

Class 800
Material A105 Forged Steel
Standard API 602
Testing Standard API 598
Screen Material 316 Stainless Steel
Mesh Size 20 Mesh
Max Pressure 136.2 Bar
Temperature Range -29°C to 425°C
Connection Type Socket Weld
