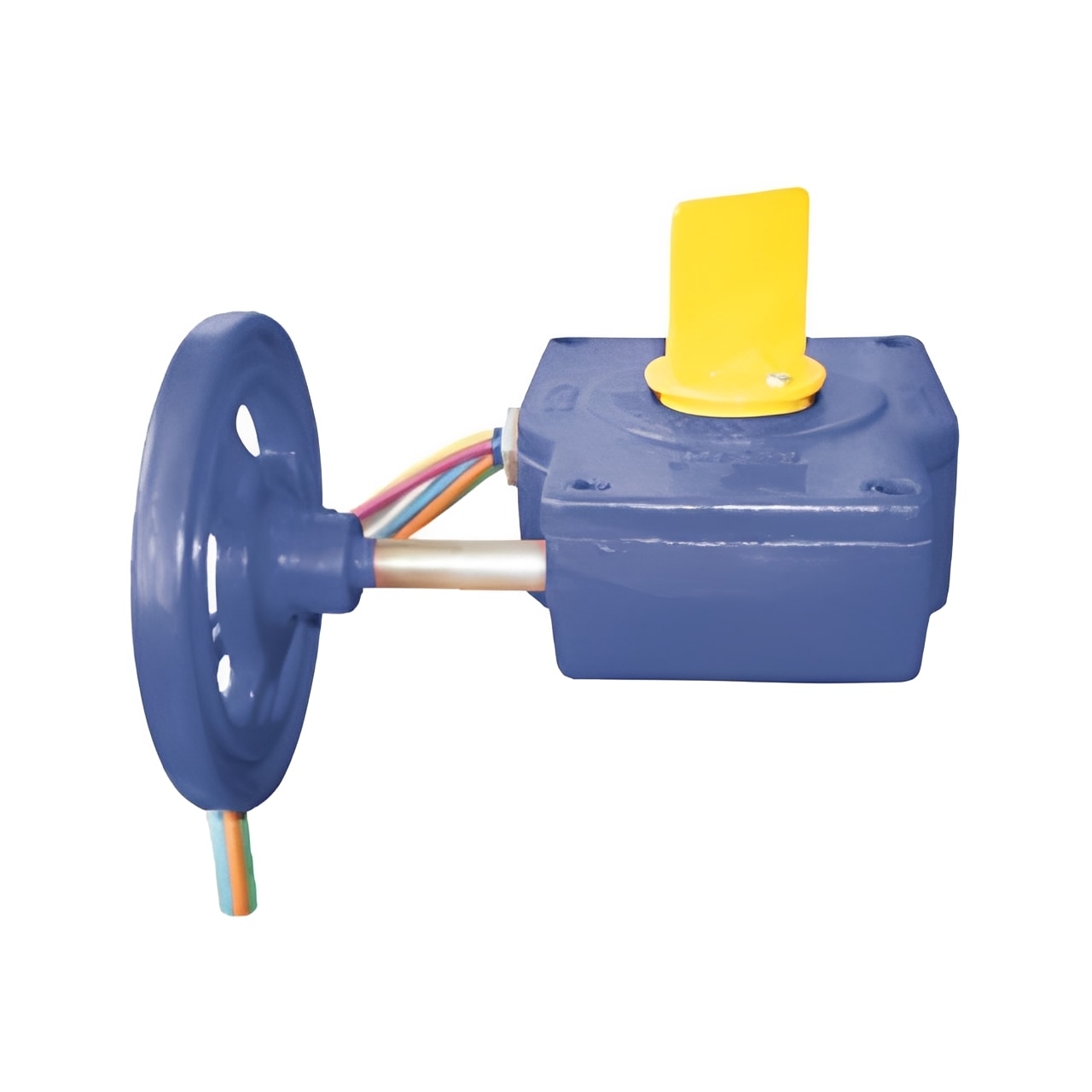

Gearbox for Butterfly Valves To Suit Weflo Type

This heavy-duty gearbox is purpose-built to provide precise, reliable control for Weflo-type butterfly valves. Designed to handle higher operating torques with ease, it offers smooth, effortless operation even on larger valve sizes where lever control becomes impractical. Whether used for manual adjustment or as part of an automated setup, this gearbox delivers durability, control, and long service life in industrial environments.

Technical Data

Compatibility: Designed specifically to suit Weflo-type butterfly valves across a wide range of sizes, typically from 2 to 12 (and larger on request).
Mounting Interface: Direct-coupling gearbox that fits securely to the valve drive shaft and aligns with standard actuator mounting pads for future upgrades.
Gear Ratio & Torque Output: Provides mechanical torque multiplication, allowing easy manual operation of high-pressure or large-diameter valves.
Operation: Equipped with a smooth-turning handwheel for manual control and can be easily adapted for actuator-driven automation.
Construction: Made from robust cast or machined housing materials with a corrosion-resistant finish to withstand demanding industrial conditions.
Service Range: Available in multiple size variants to match different butterfly valve diameters and torque requirements.
Maintenance: Designed for low maintenance with long-lasting internal gearing and accessible fittings for periodic lubrication or inspection.

Why This Gearbox Is a Smart Choice

Effortless operation: The gear-driven design multiplies manual torque, making large valves easy and safe to operate under pressure.
Durable and reliable: Built with industrial-grade materials and precision gearing for long-term performance and resistance to wear.
Versatile compatibility: Specifically engineered to fit Weflo-type butterfly valves, ensuring a perfect fit and reliable functionality.
Automation ready: Can serve as a manual operator now and easily transition to automated operation later by adding an electric or pneumatic actuator.
Maintenance friendly: Compact, sealed design provides protection against dust and moisture while allowing simple inspection and servicing.
Consistent performance: Smooth gear engagement ensures steady movement and precise control of valve position across the full range of operation.

Installation and Application Tips

• Verify your butterfly valve is a Weflo type or compatible equivalent before installation.
• Select the correct gearbox size based on your valve diameter and required torque.
• Align the gearbox output shaft precisely with the valve stem to ensure smooth operation and prevent mechanical strain.
• Use uniform bolt torque when securing the gearbox to maintain proper alignment and sealing integrity.
• If planning future automation, ensure that the gearbox includes the proper actuator mounting interface.
• Lubricate the gearbox as recommended and inspect periodically for wear, noise, or resistance during operation.

The Gearbox for Butterfly Valves To Suit Weflo Type provides a robust, efficient, and adaptable control solution for industrial piping systems. Whether installed as a manual drive or paired with automation later, this gearbox delivers smooth performance, long-term reliability, and operational confidence for butterfly valve systems of all sizes.
