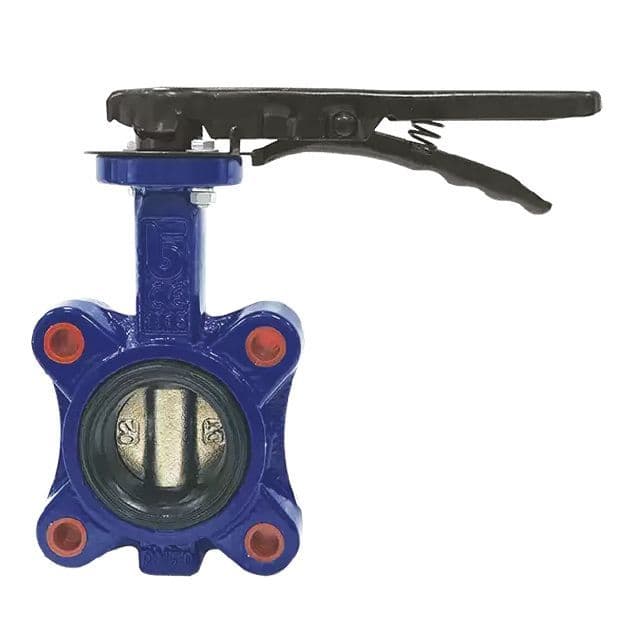

Lugged & Tapped Butterfly Valve with EPDM Liner (PN16)

The Lugged & Tapped Butterfly Valve with EPDM Liner is a highly reliable and versatile flow control solution, designed to meet a wide range of industrial applications. This valve is rated for PN16 pressures and offers a robust construction that ensures durability and efficiency under demanding conditions. Below is an insightful look into the key features and specifications of this product:

Technical Features

1. Body and Disc Materials: The valve is constructed with an epoxy-coated cast iron body, ensuring corrosion resistance and long-lasting performance. The disc is made from nickel-plated ductile iron, offering excellent strength and wear resistance.
2. EPDM Liner: The valve's EPDM liner provides excellent chemical resistance and enhances sealing capability in temperatures ranging from -10°C to 120°C, with a peak tolerance of 130°C. This makes it suitable for use in diverse environments.
3. Operational Options: The butterfly valve supports two operational modes:
   • Locking Lever Operation for sizes up to 10 and 12.
   • Gearbox Operation for all sizes, ensuring smooth and precise control of flow. Customers seeking gearbox operation options can inquire directly for specific requirements.
4. Compliance and Standards: The valve complies with ISO 5211 standards for direct mount, offering compatibility with standardised actuators. It also meets the 97/23/CE (Pressure Equipment Directive) CE 1115, ensuring safety, quality, and regulatory adherence.
5. Installation Compatibility: Designed to fit PN16 flanges, this butterfly valve simplifies installation in systems requiring this pressure rating.

Reliable Delivery and Availability

• Next-Day Delivery: Most valves can be delivered the next day for orders placed before 3 PM, ensuring rapid turnaround times to minimise downtime.
• Stock Assurance: The valves are kept in large volumes to guarantee availability. In the rare case of an out-of-stock item, customers will receive email updates with estimated delivery dates, generally within 2-3 days.

This Lugged & Tapped Butterfly Valve with EPDM Liner stands out for its durability and top-tier construction, making it an ideal choice for industries requiring reliable, high-performance flow control equipment. Whether you need quick delivery or gearbox-operational options, this valve delivers flexibility and exceptional performance across the board.
