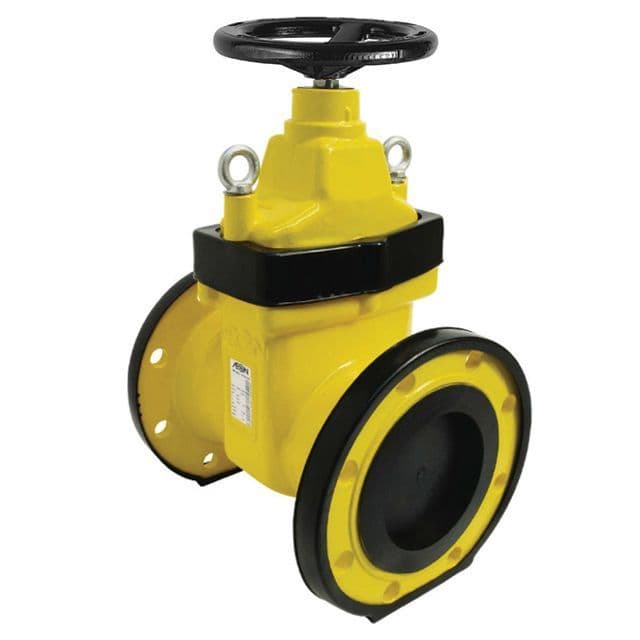

Ductile Iron Gate Valve BSI V7 Gas Approved (PN7 Rated)
This ductile iron gate valve is designed and certified for natural gas service, meeting BSI V7 requirements for safe operation in gas distribution networks. The valves resilient NBR seat provides exceptional tightness and operational reliability.
Technical Details
- Body Material: Ductile iron (EN GJS-500-7) with epoxy coating
- Seat Material: NBR (nitrile rubber) encapsulated wedge
- End Connection: Flanged PN16 (EN 1092-2 pattern)
- Pressure Rating: PN7 (7 bar, gas service)
- Temperature Range: -20 °C to +60 °C
- Operation: Non-rising stem with handwheel
- Approvals: BSI GIS/V7-1 and EN 13774 compliant
Applications
Perfect for natural gas distribution, metering stations, and buried service lines. The ductile iron body offers superior mechanical strength and impact resistance, while the NBR seat ensures gas-tight sealing and long-term reliability.
- Regular price
- £429.43
Ductile Iron Gate Valve BSI V7 Gas Approved (PN7 Rated)
This ductile iron gate valve is designed and certified for natural gas service, meeting BSI V7 requirements for safe operation in gas distribution networks. The valves resilient NBR seat provides exceptional tightness and operational reliability.
Technical Details
- Body Material: Ductile iron (EN GJS-500-7) with epoxy coating
- Seat Material: NBR (nitrile rubber) encapsulated wedge
- End Connection: Flanged PN16 (EN 1092-2 pattern)
- Pressure Rating: PN7 (7 bar, gas service)
- Temperature Range: -20 °C to +60 °C
- Operation: Non-rising stem with handwheel
- Approvals: BSI GIS/V7-1 and EN 13774 compliant
Applications
Perfect for natural gas distribution, metering stations, and buried service lines. The ductile iron body offers superior mechanical strength and impact resistance, while the NBR seat ensures gas-tight sealing and long-term reliability.
- Regular price
- £429.43
Ductile Iron Gate Valve BSI V7 Gas Approved (PN7 Rated)
This ductile iron gate valve is designed and certified for natural gas service, meeting BSI V7 requirements for safe operation in gas distribution networks. The valves resilient NBR seat provides exceptional tightness and operational reliability.
Technical Details
- Body Material: Ductile iron (EN GJS-500-7) with epoxy coating
- Seat Material: NBR (nitrile rubber) encapsulated wedge
- End Connection: Flanged PN16 (EN 1092-2 pattern)
- Pressure Rating: PN7 (7 bar, gas service)
- Temperature Range: -20 °C to +60 °C
- Operation: Non-rising stem with handwheel
- Approvals: BSI GIS/V7-1 and EN 13774 compliant
Applications
Perfect for natural gas distribution, metering stations, and buried service lines. The ductile iron body offers superior mechanical strength and impact resistance, while the NBR seat ensures gas-tight sealing and long-term reliability.
-
