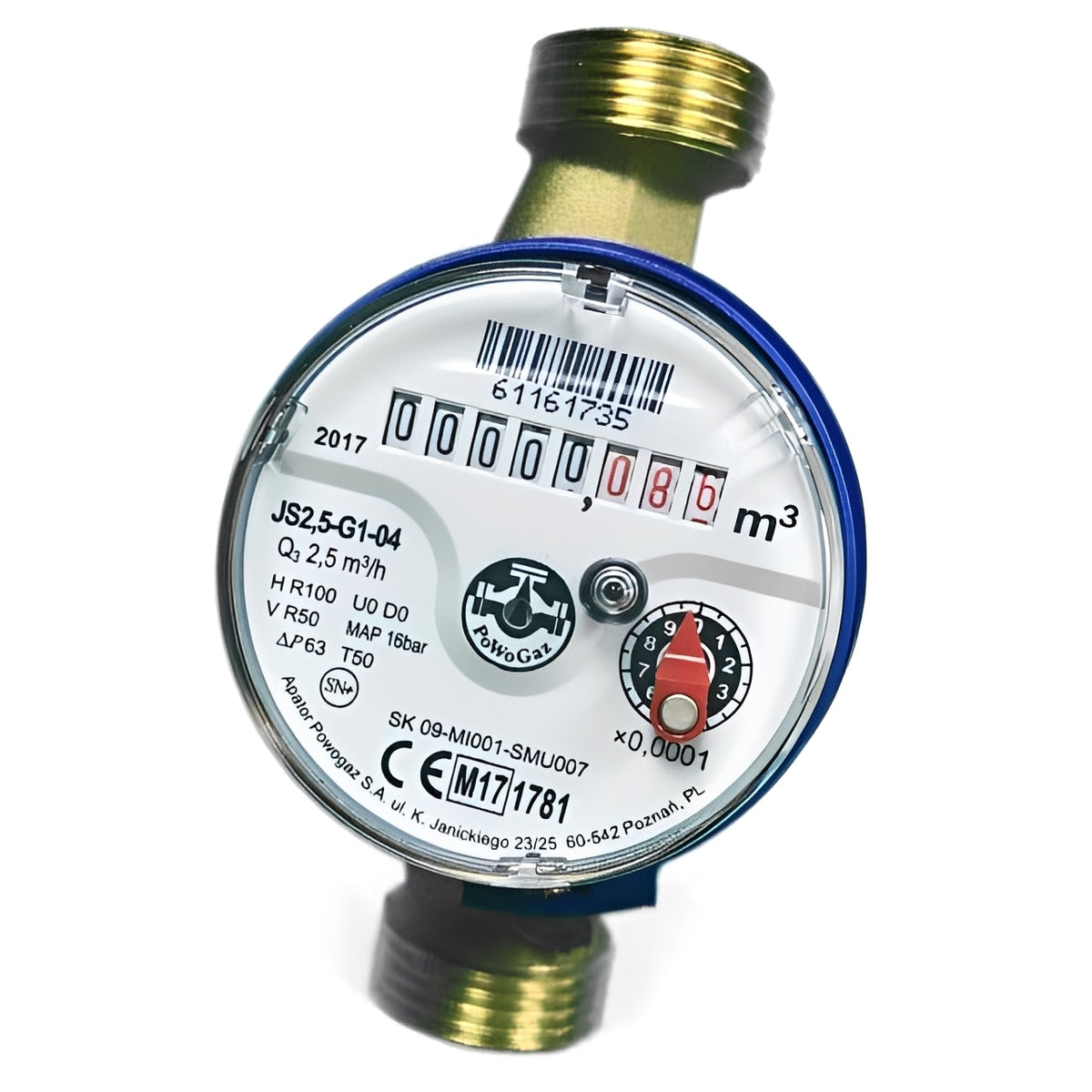

PoWoGaz Class B Single-Jet Water Meter - Threaded BSP Brass Body

The PoWoGaz Class B Single-Jet Water Meter Threaded BSP Brass Body gives you accurate flow measurement for potable water systems. The brass body resists corrosion well. Furthermore, MID and WRAS approval means it meets UK standards for potable water installations. It suits domestic and light commercial use. For the full range, see our Water Meters collection.

Two sizes are available: 1/2" and 3/4". The dry dial register also stays clear in all conditions. You can fit this meter horizontally or vertically with the register facing up.

Key Features of This PoWoGaz Class B Single-Jet Water Meter BSP Brass

• Body material: Brass — consequently giving corrosion resistance and long service life
• Connection type: Threaded BSP — also suits standard UK pipework
• Approvals: MID and WRAS approved for potable water use
• Register type: Dry dial for clear reading in all conditions
• Max working pressure: 16 bar (PN16)
• Max temperature: 30°C
• Flow rate (1/2"): Q = 1.6 m³/h
• Flow rate (3/4"): Q = 2.5 m³/h
• Installation: Horizontal or vertical with upward-facing register
• Sizes: 1/2" (SKU: WM013004), 3/4" (SKU: WM013205)

Applications for a PoWoGaz Class B Single-Jet Water Meter Threaded BSP Brass Body

This threaded BSP brass body water meter suits domestic supply lines, light commercial installs, and any system where MID and WRAS approval is a requirement. In addition, the Class B accuracy rating makes it reliable for billing and consumption monitoring. Moreover, the compact single-jet design keeps pressure loss low. It also fits where space around the pipework is limited.

Pressure and Temperature Ratings

This PoWoGaz single-jet brass water meter handles a maximum working pressure of 16 bar (PN16). However, the maximum water temperature is 30°C. Consequently, it suits cold water supply only. Always check your system temperature and pressure before specifying.

Selection Advice

Choose 1/2" for flow rates up to 1.6 m³/h. As a result, it suits most standard domestic supply points. Choose 3/4" for higher flow rates up to 2.5 m³/h. If you need a larger or higher-flow water meter, see the full Water Meters range for alternatives.
