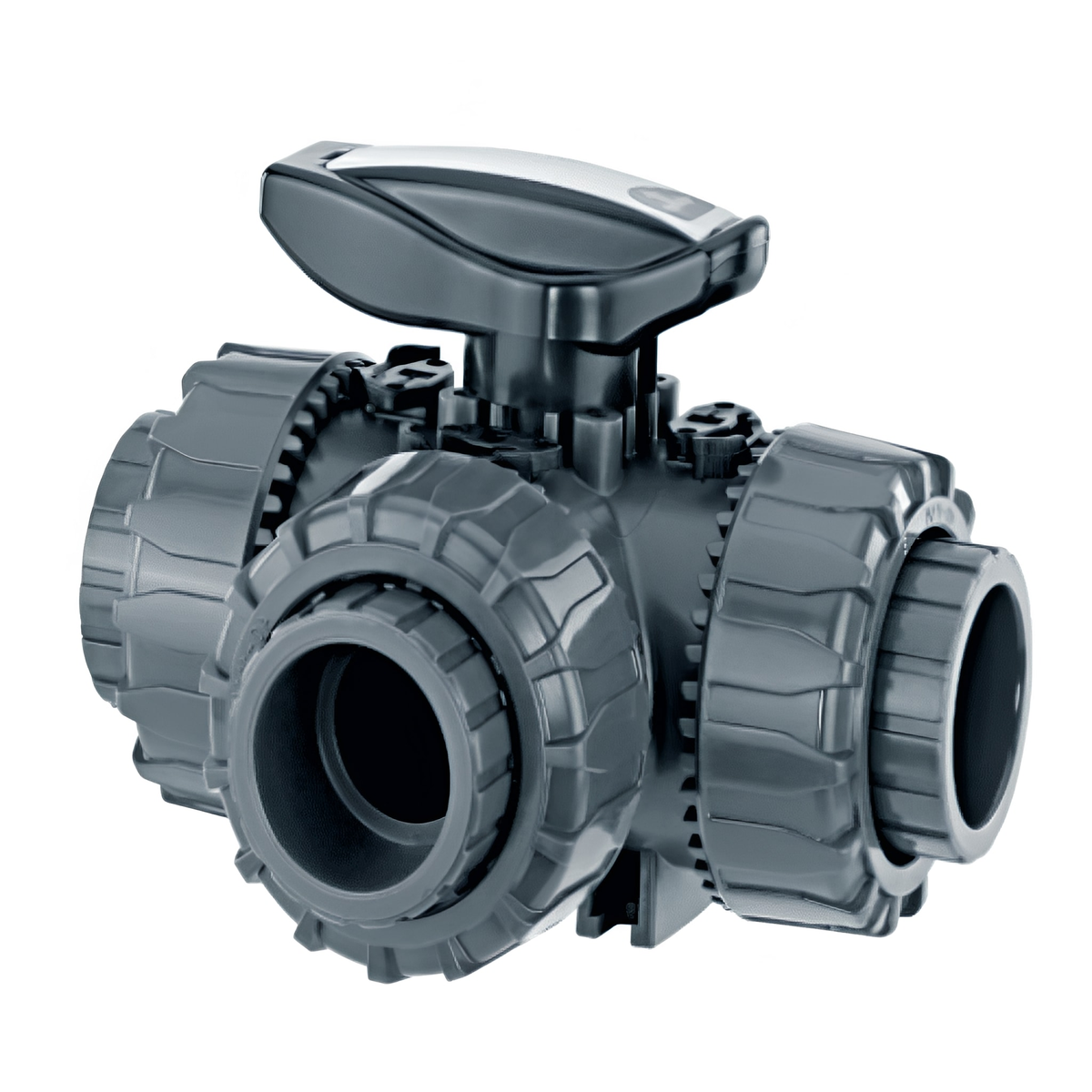

• PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals, designed for efficient flow diversion and easy maintenance.

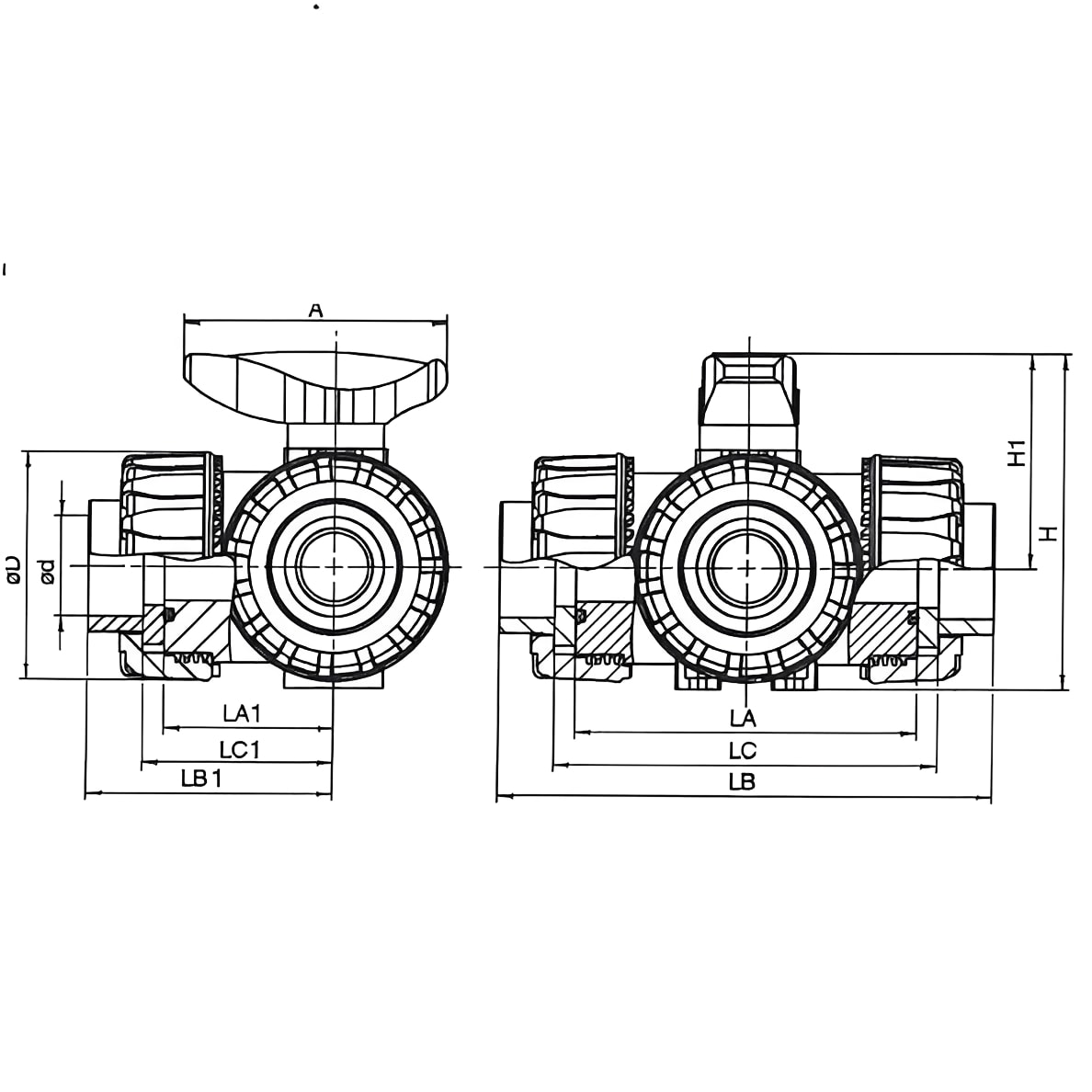

  • PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals technical drawing and dimensions

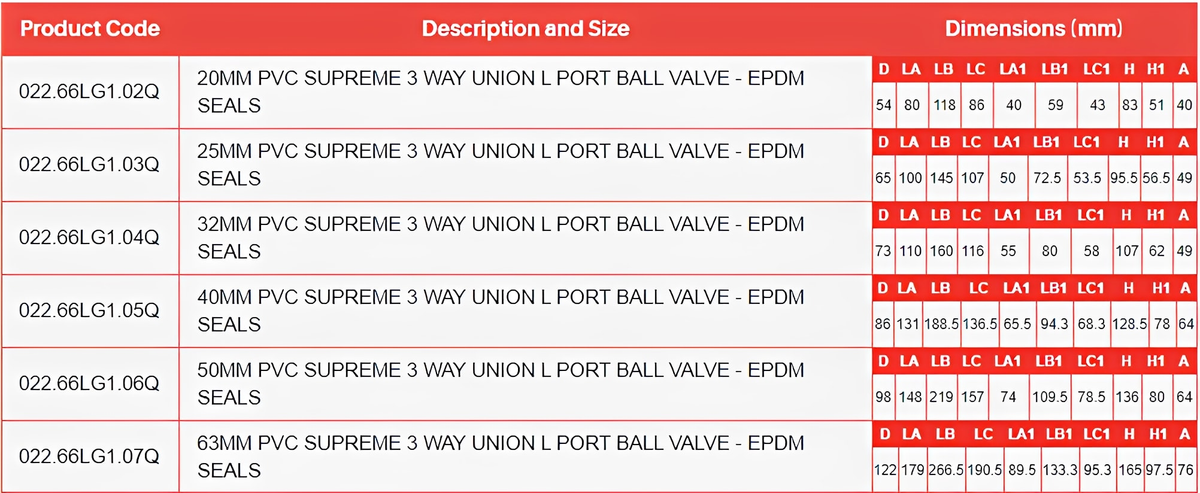

  • PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals product specifications table with dimensions and codes.
PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals, designed for efficient flow diversion and easy maintenance.
PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals technical drawing and dimensions
PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals product specifications table with dimensions and codes.

Comer

PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals

SKU 021.66L1.02Q
£222.57
Excl. tax:  £185.48
£222.57
Excl. tax:  £185.48
Size:
PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals, designed for efficient flow diversion and easy maintenance. PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals technical drawing and dimensions PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals product specifications table with dimensions and codes.
PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals, designed for efficient flow diversion and easy maintenance. PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals technical drawing and dimensions PVC 3-Way L Port Ball Valve - Plain Union Ends EPDM Seals product specifications table with dimensions and codes.

This PVC 3-way L port ball valve is designed for efficient flow diversion in large-scale applications, featuring plain union ends for easy installation and maintenance. The L-port configuration allows for precise manual control, ensuring reliable performance within various piping systems.

  • Triple Union Design: Can be easily disconnected using the union ends for simplified maintenance and system adjustments.
  • Durable Construction: Features a PTFE seat and EPDM seals to ensure a leak-proof performance and high chemical resistance.
  • Operational Range: Suitable for use within a temperature range of +5 to +70 degrees Celsius.
  • High Performance: Offers excellent abrasion resistance and a smooth internal bore to optimise flow and reduce friction.
  • Certified Quality: Suitable for potable water (WRAS) and manufactured in accordance with BS3505 and EN1452-2 standards.

Controlled via a manual handle, this robust valve is an ideal solution for managing complex flow paths in industrial and domestic water systems.

Material PVC
Port Type L Port
Seal Material EPDM
Seat Material PTFE
End Connection Plain Union Ends
Temperature Range +5 to +70 Degrees
Standards BS3505 and EN1452-2
Certification WRAS (Potable Water)
