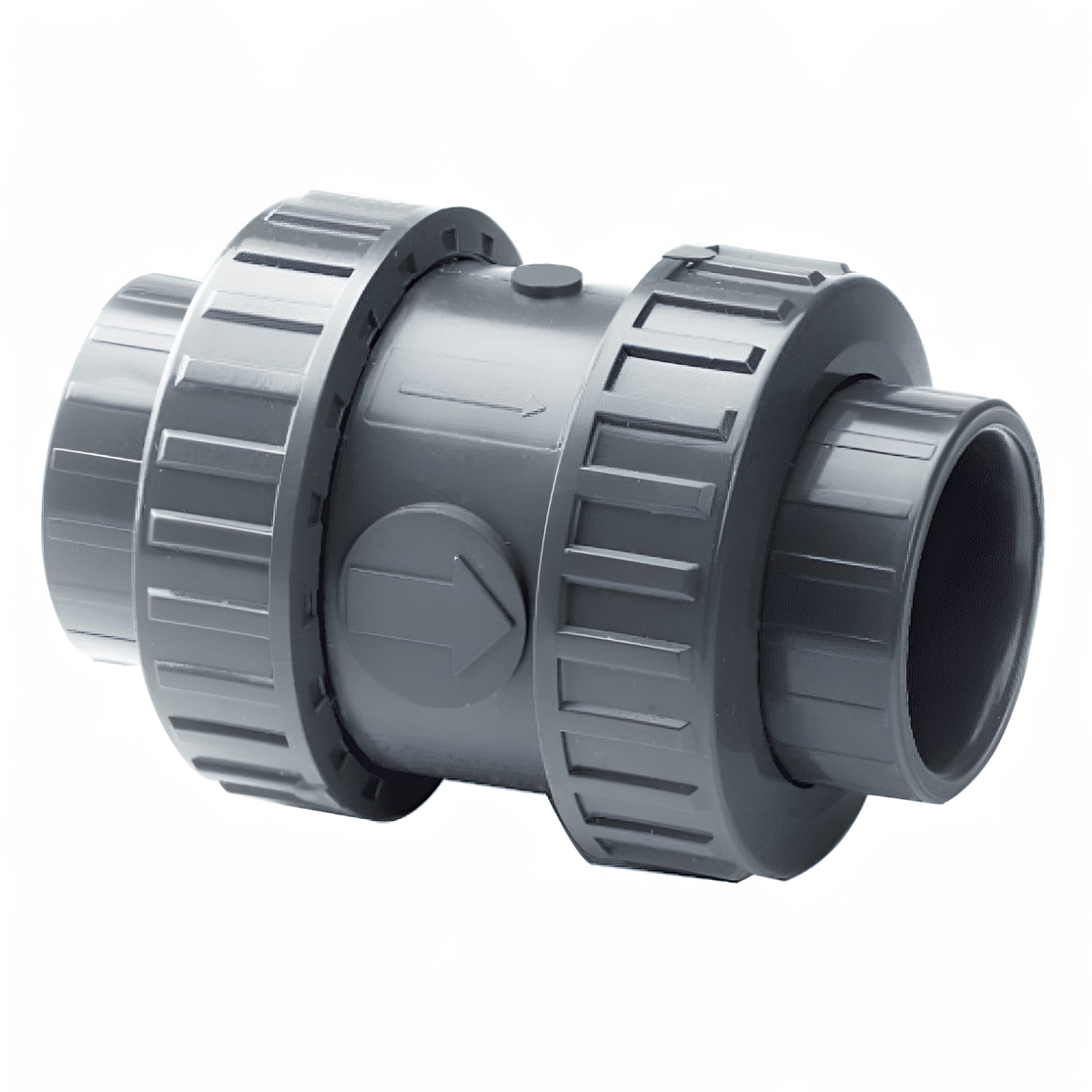

• PVC Double Union Spring Check Non Return Valve - FPM Seals for one-way flow in piping systems
  • PVC Double Union Spring Check Non Return Valve - FPM Seals diagram showing dimensions A, G, L, Z, H

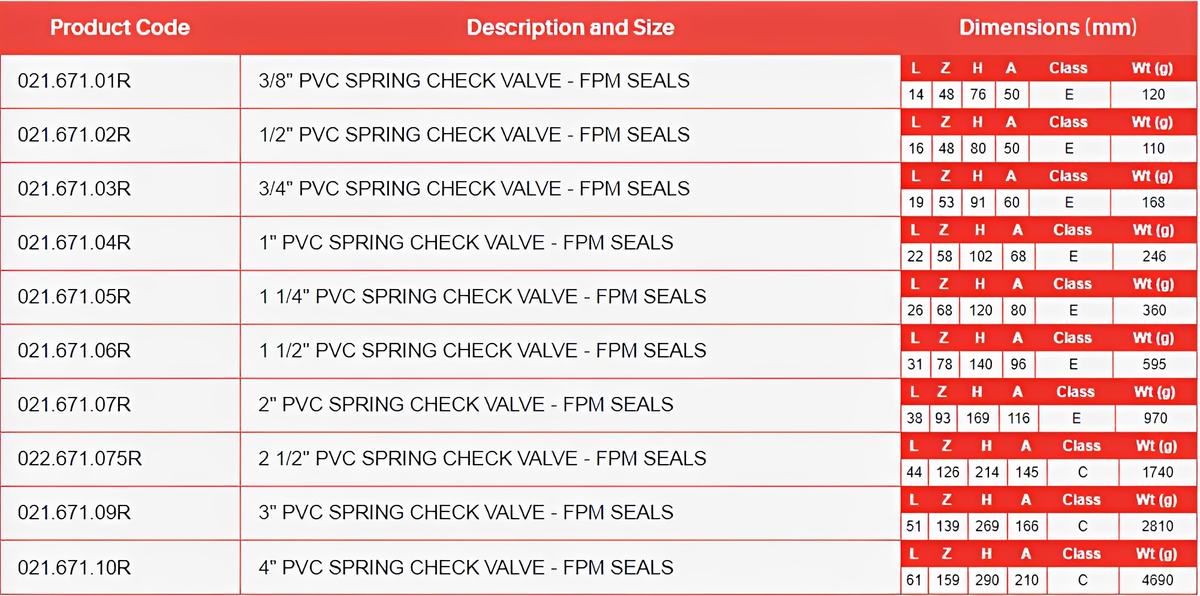

  • PVC Double Union Spring Check Non Return Valve - FPM Seals specifications and dimensions table.
PVC Double Union Spring Check Non Return Valve - FPM Seals for one-way flow in piping systems
PVC Double Union Spring Check Non Return Valve - FPM Seals diagram showing dimensions A, G, L, Z, H
PVC Double Union Spring Check Non Return Valve - FPM Seals specifications and dimensions table.

Comer

PVC Double Union Spring Check Non Return Valve - FPM Seals

SKU 021.671.02R
£38.31
Excl. tax:  £31.93
£38.31
Excl. tax:  £31.93
Size:
PVC Double Union Spring Check Non Return Valve - FPM Seals for one-way flow in piping systems PVC Double Union Spring Check Non Return Valve - FPM Seals diagram showing dimensions A, G, L, Z, H PVC Double Union Spring Check Non Return Valve - FPM Seals specifications and dimensions table.
PVC Double Union Spring Check Non Return Valve - FPM Seals for one-way flow in piping systems PVC Double Union Spring Check Non Return Valve - FPM Seals diagram showing dimensions A, G, L, Z, H PVC Double Union Spring Check Non Return Valve - FPM Seals specifications and dimensions table.

The PVC Double Union Spring Check Non Return Valve is an essential component for ensuring one-way flow within your piping system, featuring a robust PVC cone and a stainless steel spring mechanism. This valve is designed for easy maintenance and system modifications, as the double union ends allow for quick disconnection without disturbing the surrounding pipework.

  • FPM Seals: Equipped with high-quality FPM seals to provide excellent chemical resistance and durability in demanding environments.
  • Temperature Resilience: Operates effectively within a temperature range of +5 to +70 degrees Celsius.
  • High Durability: The unit is both abrasion resistant and features a smooth internal bore to optimise flow and reduce sediment build-up.
  • Safety Standards: Suitable for potable water applications and WRAS approved, ensuring compliance with health and safety requirements.
  • Standard Compliance: Manufactured in accordance with BS3505 and EN1452-2 standards for reliable performance.

These imperial plain double union valves are ideal for a variety of industrial and domestic applications where preventing backflow is critical.

Seal Material FPM
Spring Material Stainless Steel
End Connection Double Union / Plain Ends
Temperature Range +5 to +70 Degrees
Standards BS3505 and EN1452-2
Certification WRAS Approved
