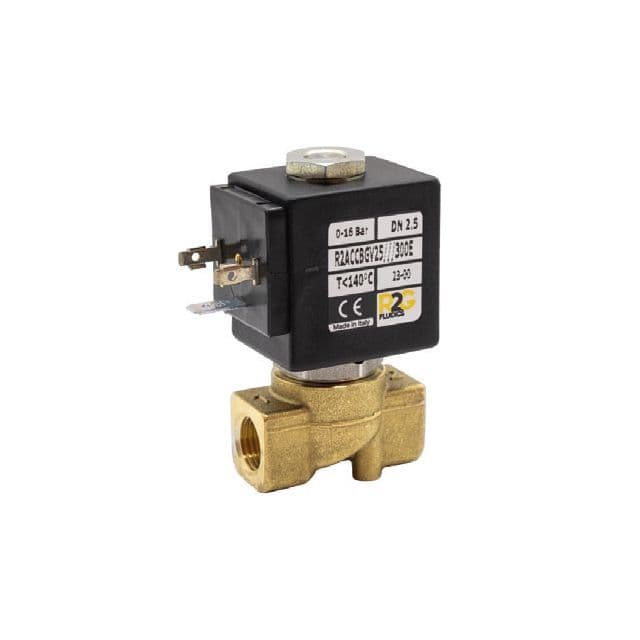

Overview of RAC1 Brass Solenoid Valve Direct Acting 2/2 Viton Diaphragm
Description
This RAC1 direct-acting brass solenoid valve is a normally open 2/2-way valve equipped with a Viton diaphragm. It provides reliable flow control in systems where continuous flow is required when unpowered. The direct acting design allows operation without minimum pressure requirements.
Technical Data
- Body Material: Brass
- Connection: Screwed BSP
- Valve Type: Direct acting, 2/2 way
- Normal Position: Normally open
- Diaphragm Material: Viton (FKM)
- Pressure Range: No Minimum Pressure, to Maximum Pressure 10 Bar AC, 8 Bar DC, ½" Maximum Pressure 6 Bar AC, 4 Bar DC
- Temperature Range: 10 °C to +160 °C
- Media: Gases, fuels, oils, aggressive fluids
- Voltage Options: 24-110-230V AC & 24V DC
Key Features
- Normally open configuration for fail-open operation
- Direct acting function at zero pressure
- Viton diaphragm ensures chemical compatibility
Installation & Application Notes
Ensure correct electrical specification and media compatibility. Suitable for safety systems, continuous-flow processes, and chemical handling applications.
- Regular price
- £45.03
