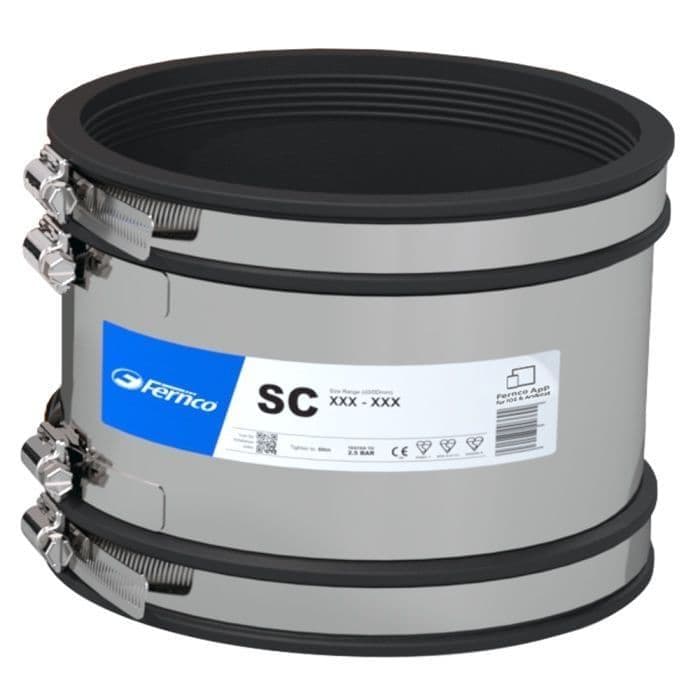

Fernco SC310 Shear-Banded Coupling 285 to 310 mm

The Fernco SC310 Shear-Banded Coupling is a professional-grade flexible joint designed to connect drainage pipes with outside diameters between 285 mm and 310 mm. As part of Ferncos shear-banded range, this coupling delivers superior joint integrity by combining a flexible EPDM rubber sleeve with heavy-duty shear-banded stainless steel clamps.

Shear Banded Drain Coupling Data Sheet

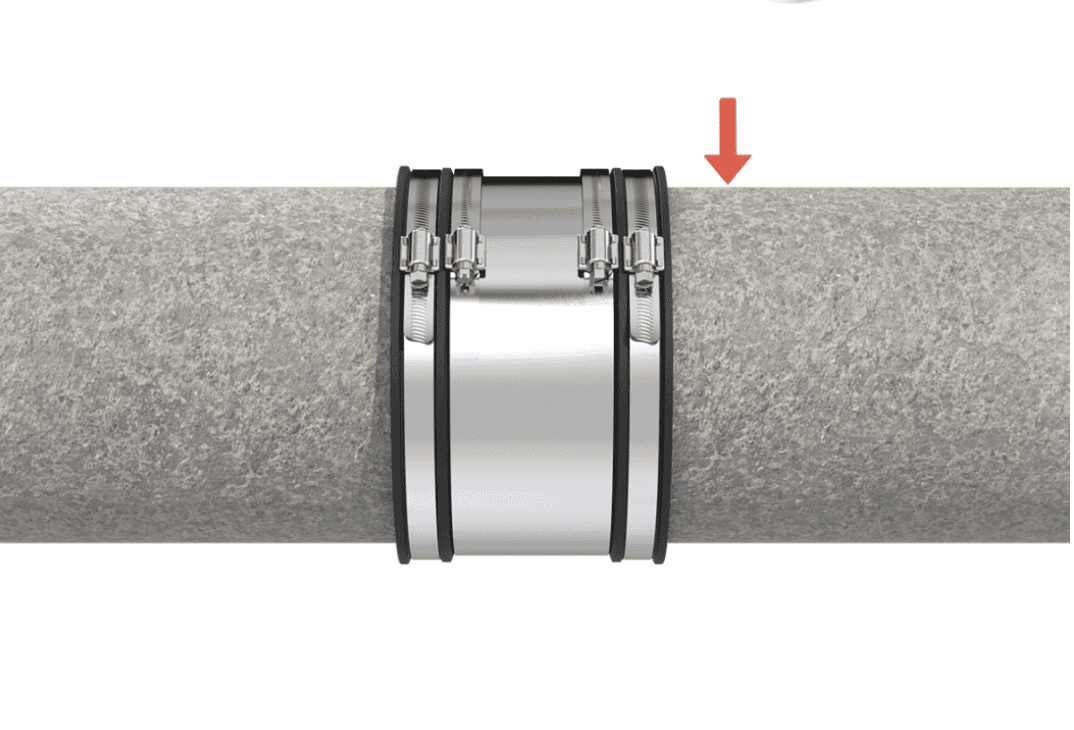

Shear-banded clamps are engineered to provide increased torque retention and clamp force, reducing the risk of loosening under vibration, ground movement or environmental stress. The flexible rubber body accommodates slight pipe misalignment and ensures a reliable airtight and watertight seal across mixed pipe materials such as PVC, clay, concrete and cast iron. This makes the SC310 well suited to large-scale drainage repairs, upgrades and new installations.

Installation is quick and efficient using standard tools, helping installers save time while achieving a secure, professional finish. Built for durability and long-term performance, the SC310 offers excellent resistance to corrosion and demanding site conditions.

Key Features & Benefits:

• Suitable for pipe sizes 285310 mm
• Flexible EPDM rubber construction
• Shear-banded stainless steel clamps for superior grip
• Airtight and watertight sealing performance

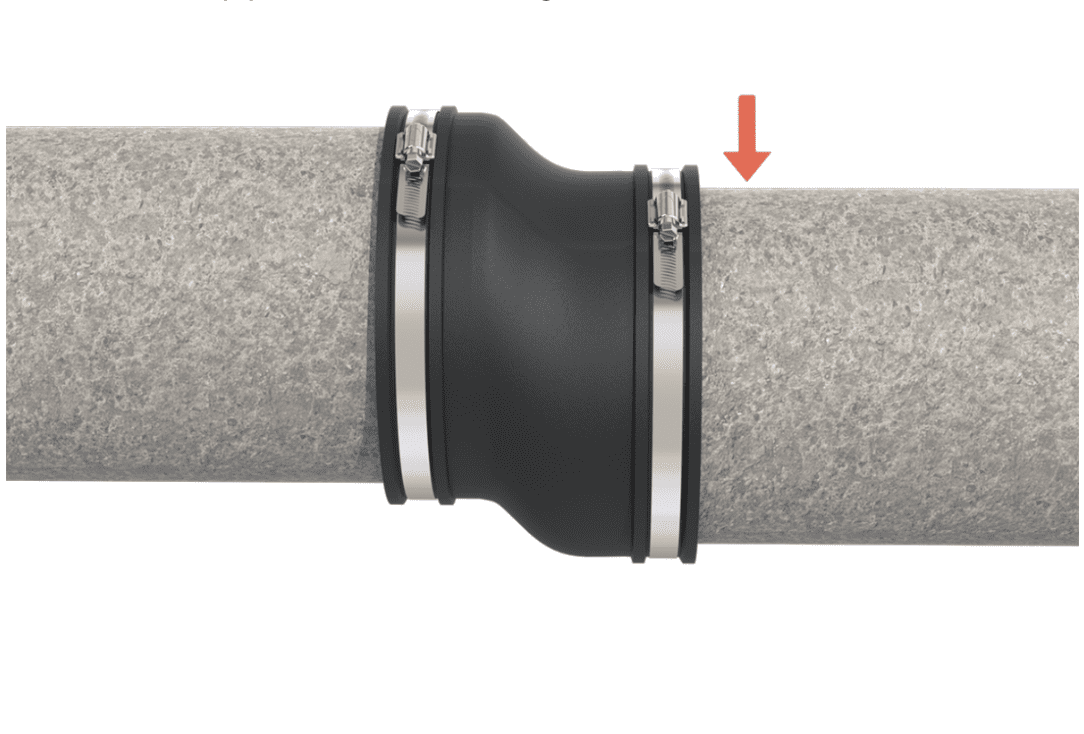

• Compensates for minor pipe misalignment
• Resilient under vibration and environmental stress
• Easy installation with standard tools
• Ideal for large commercial and industrial drainage

The SC310 provides strength, adaptability and sealing confidence for large-diameter drainage systems.
