Overview of Solenoid Operated Gas Safety Shut-Off Valve Screwed BSPP Automatic Reset

Description

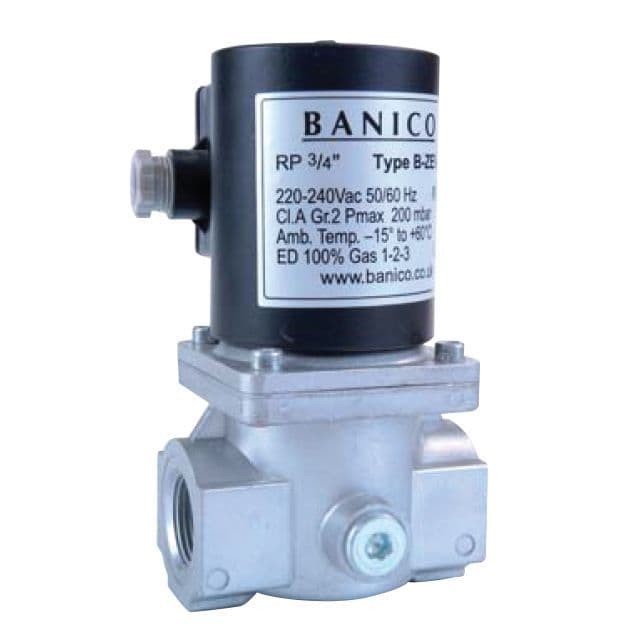

This solenoid operated gas safety shut-off valve is designed to automatically isolate gas flow in the event of power interruption or system fault. Featuring BSPP screwed connections and an automatic reset function, it ensures safe, controlled restart once normal conditions are restored. The valve is commonly used in gas supply systems for burners and industrial heating equipment.

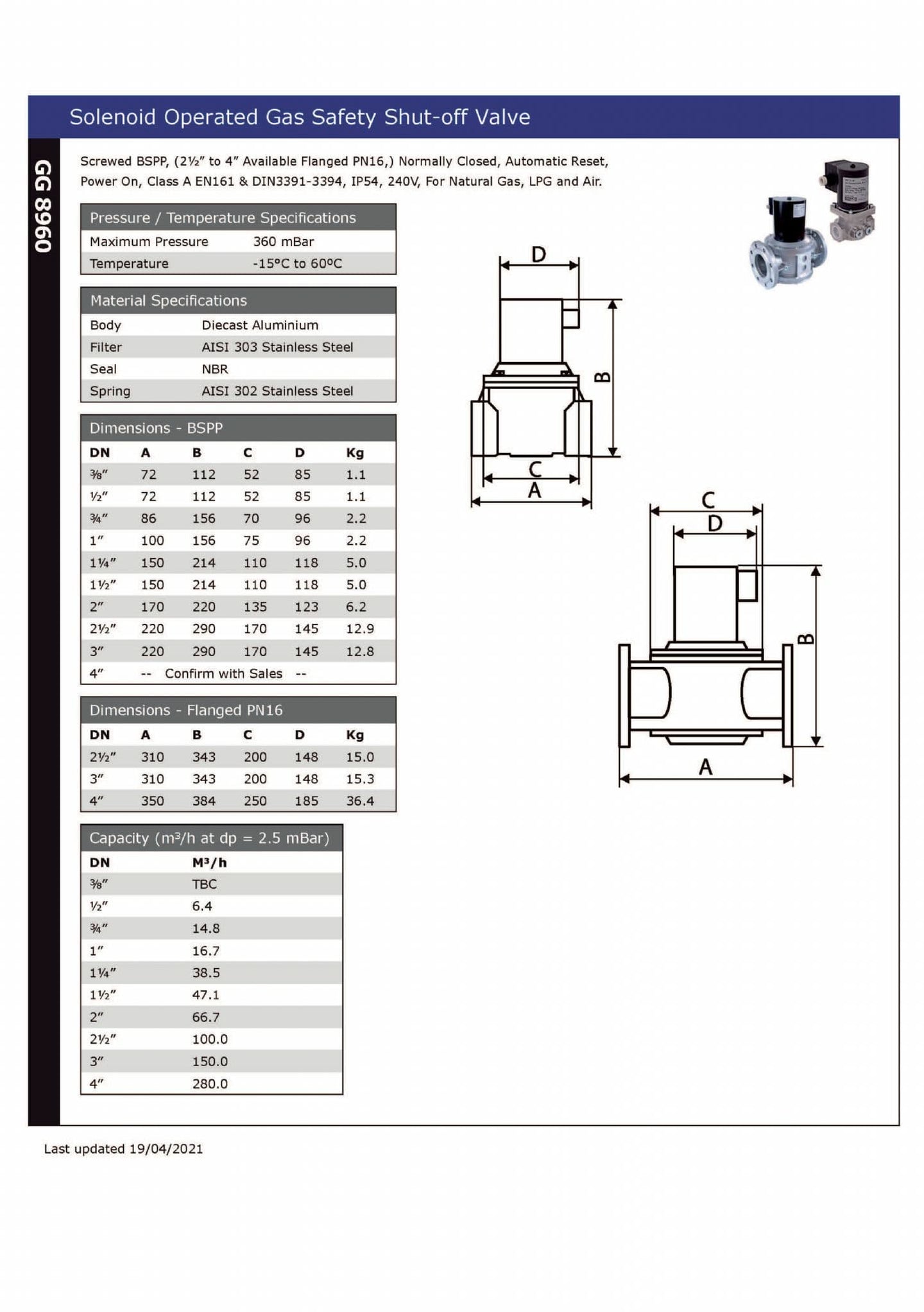

Technical Data

• Body Material: Aluminium & stainless steel (gas-rated construction)
• End Connections: BSPP screwed
• Valve Type: Gas safety shut-off
• Operation: Solenoid operated with automatic reset
• Pressure Rating: Maximum Pressure 360mBar
• Temperature Range: 15 °C to +60 °C
• Media: Natural gas, LPG, compatible gases
• Voltage: 240V

Key Features

• Automatic reset for controlled restart
• Fast-acting gas isolation
• Designed for gas safety compliance

Installation & Application Notes
Install in accordance with gas safety regulations and ensure correct flow direction. Suitable for burners, boilers, and industrial gas appliances.
