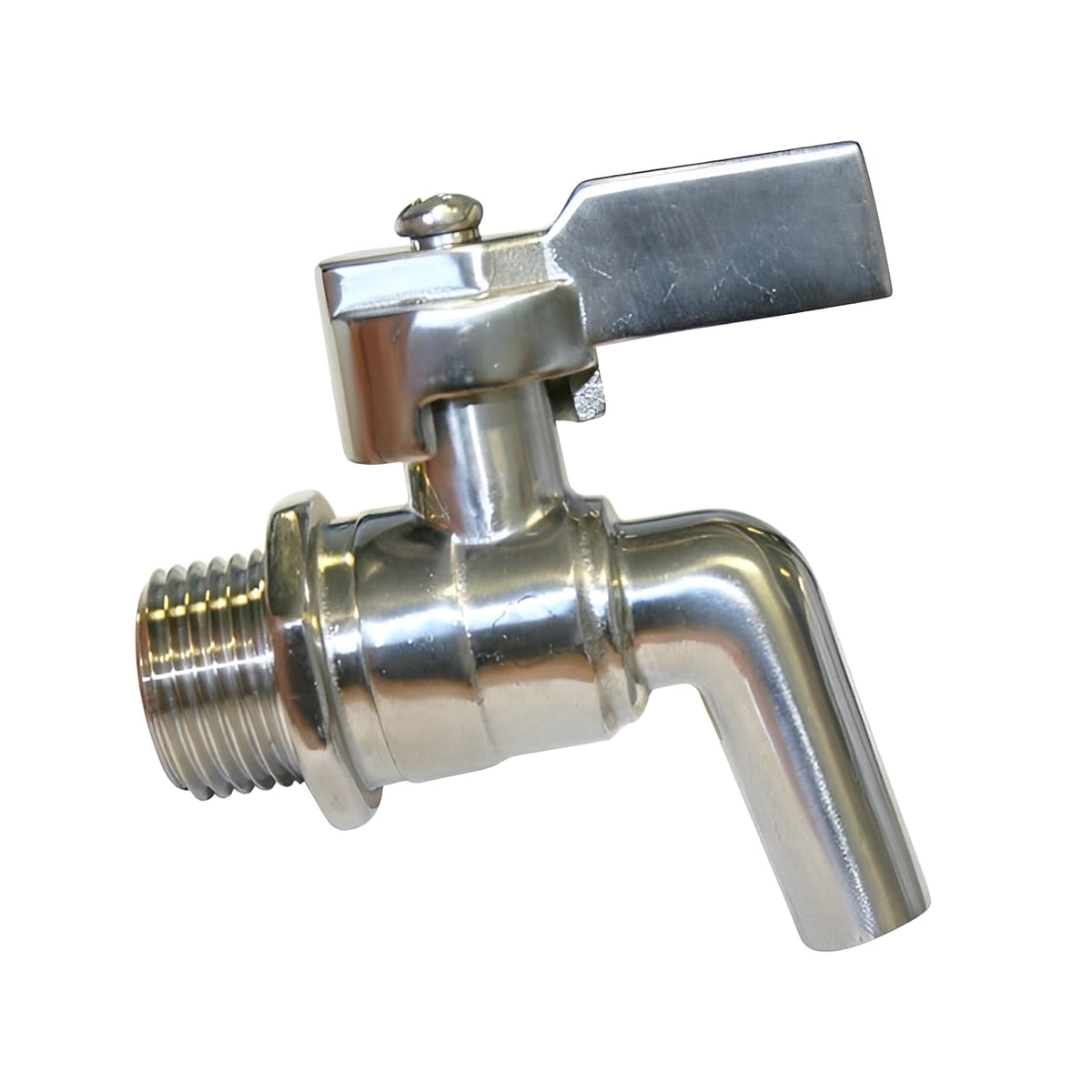

Overview of Stainless Steel Bottle Filler / Sampler

Description
The stainless steel bottle filler and sampler valve is designed for controlled dispensing or sampling of fluids from pressurised systems. Built entirely from 316 stainless steel, it ensures hygienic operation and resistance to corrosion. The precision-engineered ball valve mechanism provides smooth, consistent flow control, making it ideal for laboratory, food, beverage, and pharmaceutical applications.

Technical Data

• Body Material: 316 stainless steel
• End Connections: Threaded or compression (depending on version)
• Valve Type: Quarter-turn ball valve
• Seat / Seal Material: PTFE
• Operating Pressure: Up to 1000 psi
• Temperature Range: 20 °C to +120 °C

Key Features

• Allows precise sampling or bottle filling from live systems
• 316 stainless steel construction for hygienic and long-lasting performance
• PTFE seats ensure chemical resistance and smooth operation
• Compact design fits laboratory or process environments
• Suitable for liquids, solvents, and compatible process fluids

Installation & Application Notes
Install in a clean, accessible section of the line to ensure easy sampling. Flush before and after use to maintain purity. Ideal for laboratory testing, production sampling, and filling processes in food or chemical plants.
