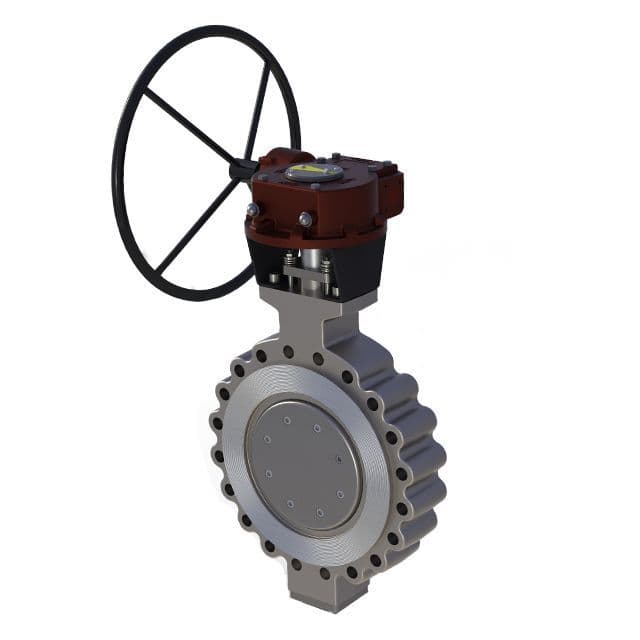

Stainless Steel HighPerformance Butterfly Valve Lugged PN16/25 Stainless Steel Disc RPTFE/Inconel625 Seat

This stainless steel highperformance butterfly valve represents the next level in precision flow control, combining advanced materials and engineering for superior performance in demanding process applications. The combination of a stainless steel body and disc with a dual-seal seat system, featuring RPTFE and Inconel625, delivers unmatched durability, corrosion resistance, and high-temperature stability. Lever Operated 2" to 5", Gearbox Operated 6" to 12".

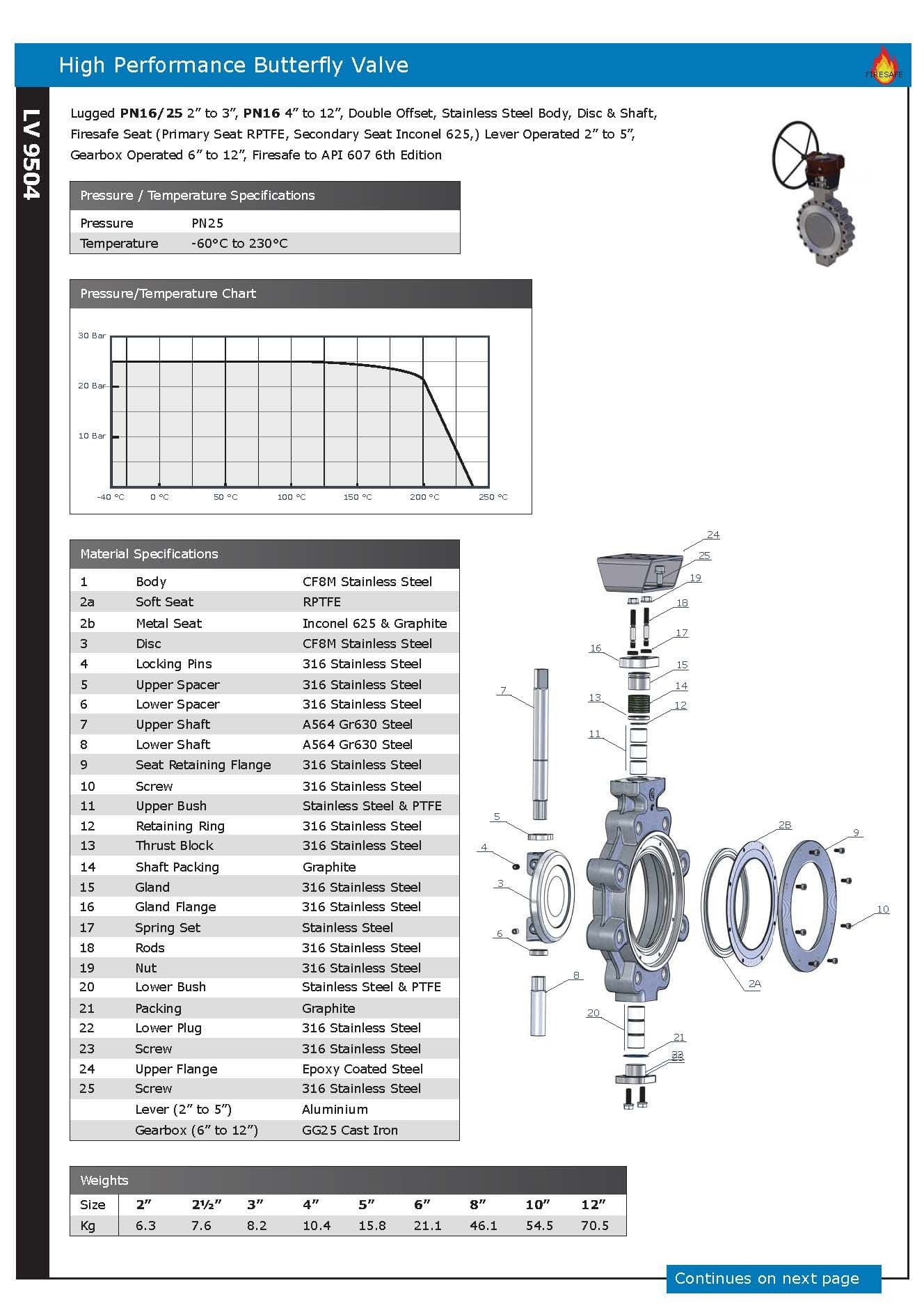

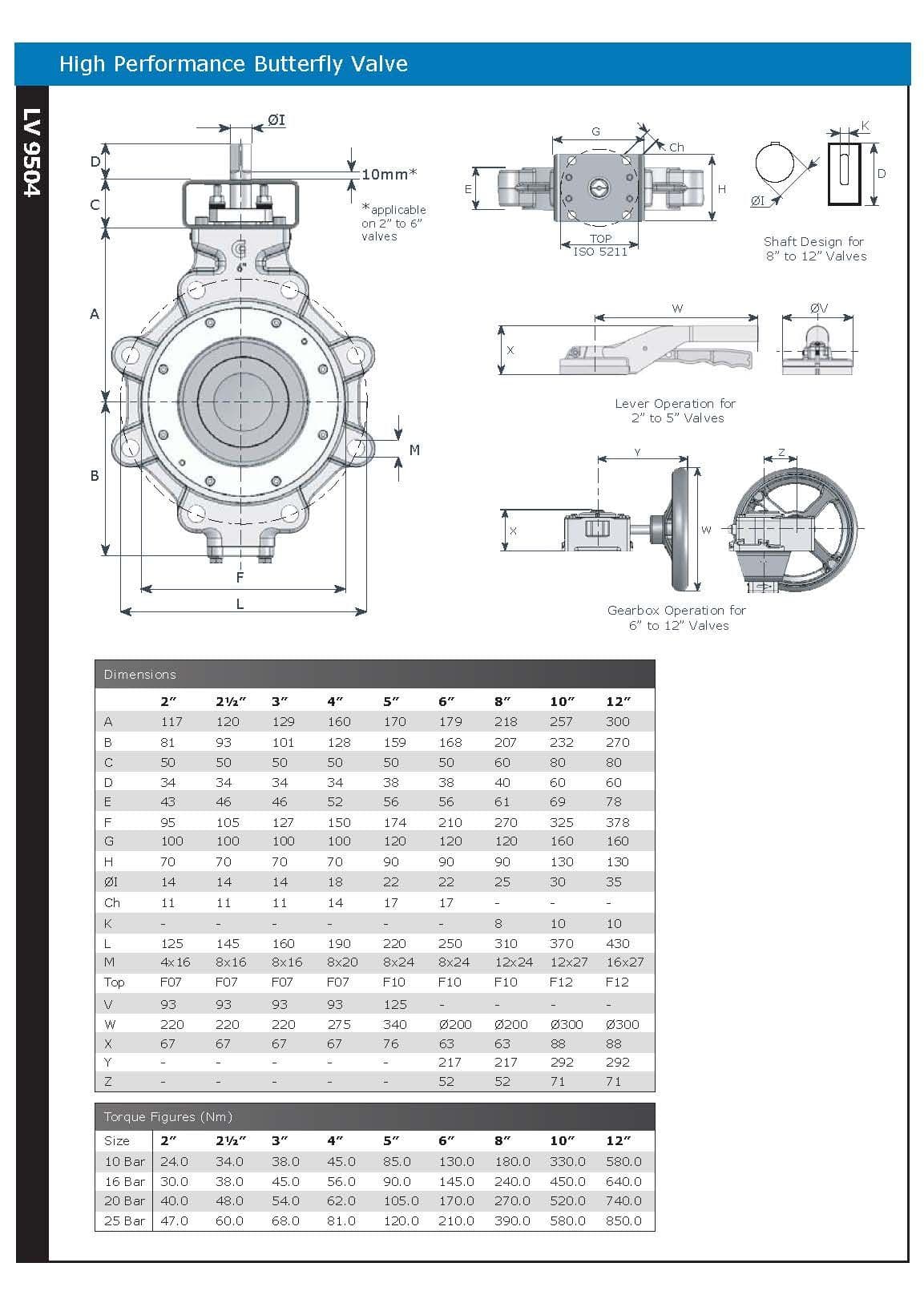

Technical Data:

• Body Material: Highgrade stainless steel (CF8M or A351316 equivalent), offering exceptional corrosion resistance, strength, and long-term service reliability
• Disc Material: Stainless steel, precision-balanced for low operating torque and consistent sealing performance under pressure
• Seat Design: Dualseal system with RPTFE (Reinforced Polytetrafluoroethylene) as the primary seat and an Inconel625 secondary backup seal for high-temperature and high-pressure resilience
• Connection Type: Lugged body pattern designed for PN16/25 2" to 4", PN16 5" to 12" flanged systems; allows oneside pipeline disassembly without valve removal
• Pressure Rating: Rated up to PN25, suitable for medium to highpressure process environments
• Temperature Range: Operates effectively from approximately -60°C to +230°C, depending on media type and pressure conditions
• Size Range: Available in a full range of standard sizes from DN50 (2) to DN300 (12) and beyond on request
• Mounting Interface: ISO5211 top mounting pad for simple integration with gear operators, electric actuators, or pneumatic systems
• Design Geometry: Doubleoffset configuration reduces disc-seat contact, minimising wear, torque requirements, and extending the life cycle

Key Features:

• DualSeal Seat Technology: The combination of RPTFE and Inconel625 offers a perfect balance of soft-seal tightness and metal-seal durability, ensuring leakfree operation even in extreme service conditions
• Stainless Steel Construction: Provides excellent resistance to corrosion and scaling, ideal for use in aggressive media, steam systems, and marine environments
• Lugged Body Advantage: Allows secure bolting alignment and facilitates maintenance or line isolation without full pipeline removal
• HighPerformance Under Pressure: Designed for highcycle operation and elevated temperature service while maintaining precise shutoff performance
• Low Torque Operation: The doubleoffset disc design and RPTFE seat ensure smooth rotation with minimal operating effort
• Automation Ready: ISO mounting compatibility enables straightforward transition from manual to automated actuation without modification

Typical Applications:

• Petrochemical and chemical processing systems requiring highintegrity shutoff in corrosive or hightemperature environments
• Steam distribution and power generation systems
• Marine and offshore installations exposed to saltwater or humidity
• Water treatment, desalination, and industrial utility pipelines
• Process systems where long-term reliability and easy maintenance are essential

Summary:

The Stainless Steel HighPerformance Lugged Butterfly Valve with an RPTFE/Inconel625 seat is a premium solution for modern industrial systems. Designed to perform under extreme conditions, it combines robust stainless steel construction with advanced dual-seal technology to ensure consistent, leakfree operation. Compact, corrosion-resistant, and automation-ready, its built for engineers who expect reliability, longevity, and precision from every component in their process line.
