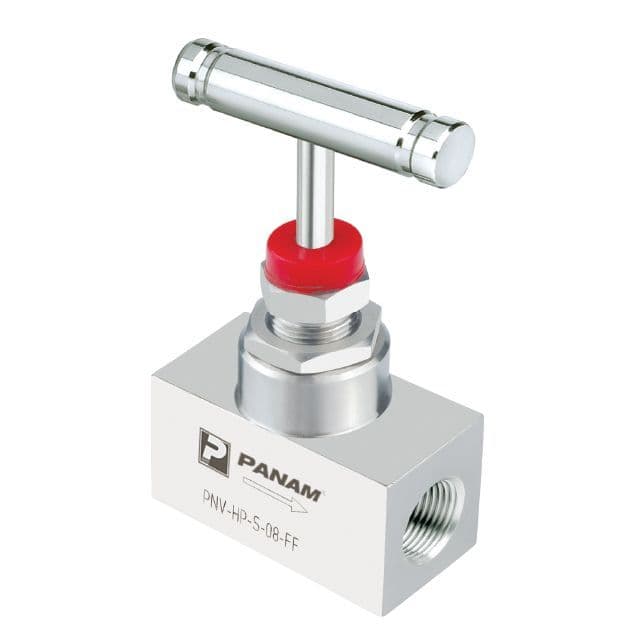

Overview of Stainless Steel Needle Valve Screwed BSPP 10,000 PSI
Description
This high-pressure stainless steel needle valve with BSPP threaded ends is engineered for precise control in extreme pressure environments. Rated up to 10,000 psi, it delivers reliable isolation and throttling in hydraulic and high-pressure gas systems.
Technical Data
- Body Material: Stainless steel
- Valve Type: High-pressure needle valve
- End Connections: BSPP screwed
- Pressure Rating: 10,000 psi
- Temperature Range: 29 °C to +230 °C
- Seat Type: Metal-to-metal
- Operation: Handwheel
Key Features
- Very high pressure capability
- BSPP threads for secure installation
- Precision needle for controlled flow
Installation & Application Notes
Use appropriate high-pressure thread sealant. Ideal for hydraulic power units, pressure testing, and high-pressure instrumentation.
- Regular price
- £58.65
