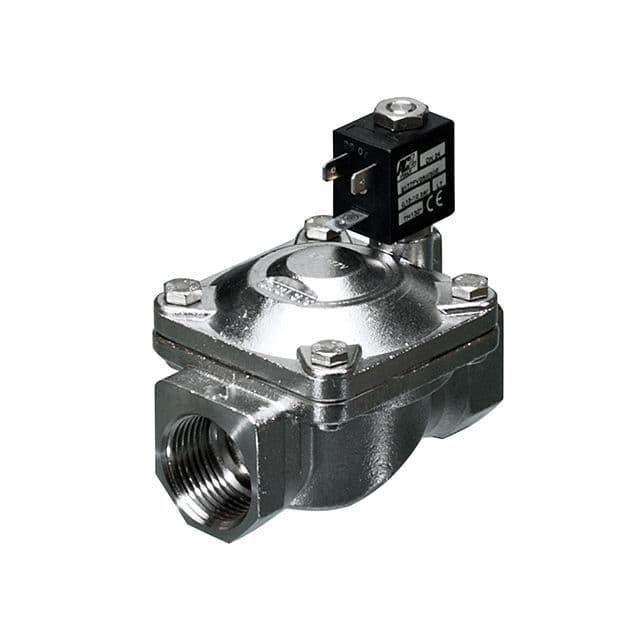

Overview of Stainless Steel Solenoid Valve Servo Assisted Normally Open

Description
This servo-assisted stainless steel solenoid valve offers high corrosion resistance and reliable control in demanding environments. Designed in a normally open configuration, it allows flow when unpowered and closes upon energisation. The stainless steel body makes it suitable for food, pharmaceutical, chemical, and marine applications.

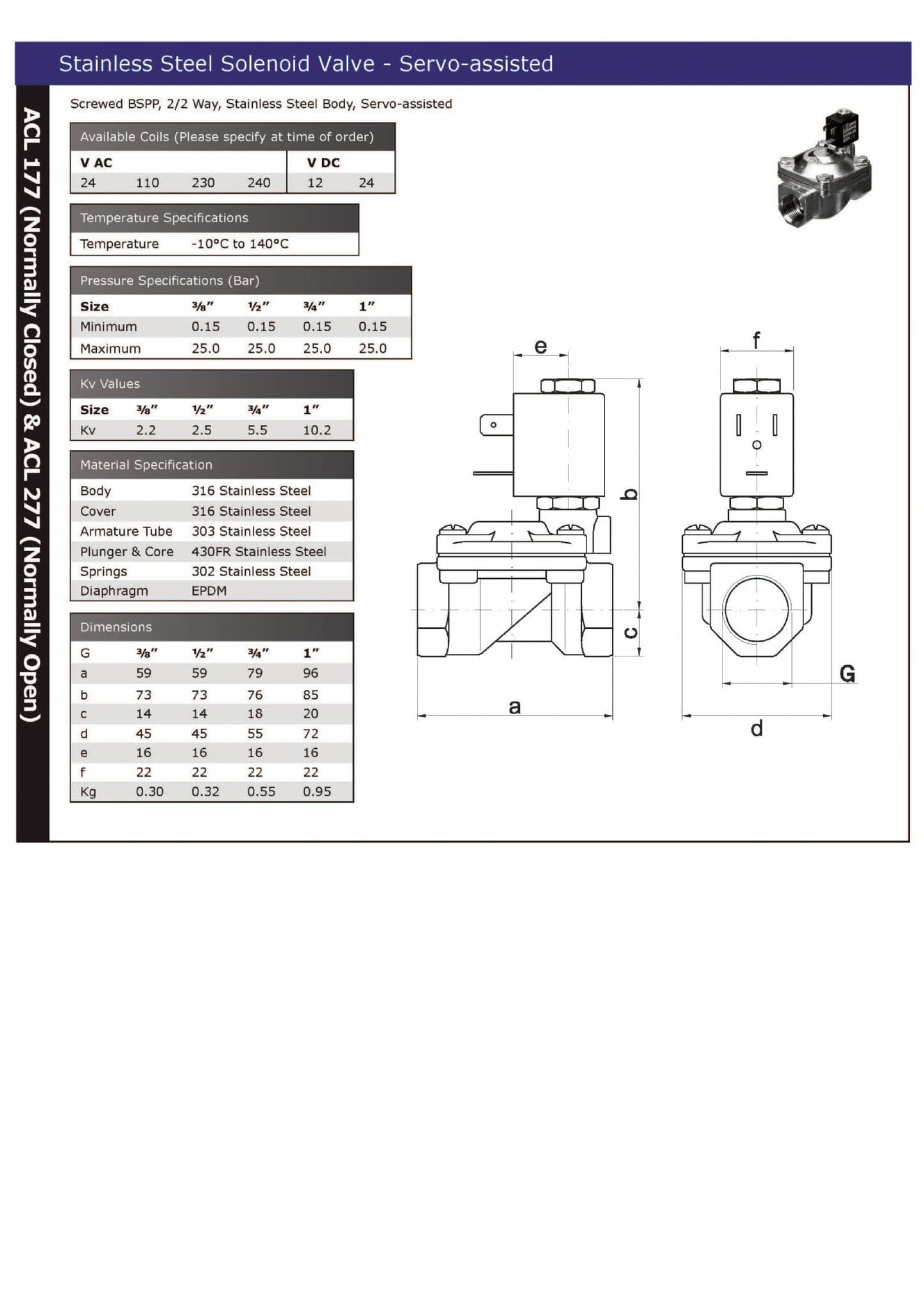

Technical Data

• Body Material: Stainless steel
• Connection: Screwed BSPP
• Valve Operation: Servo assisted
• Normal Position: Normally open
• Media: Water, steam, chemicals, compatible fluids
• Pressure Range: Minimum Pressure 0.15 Bar, Maximum Pressure 25 Bar
• Temperature Range: 10 °C to +140 °C
• Seal Material: EPDM

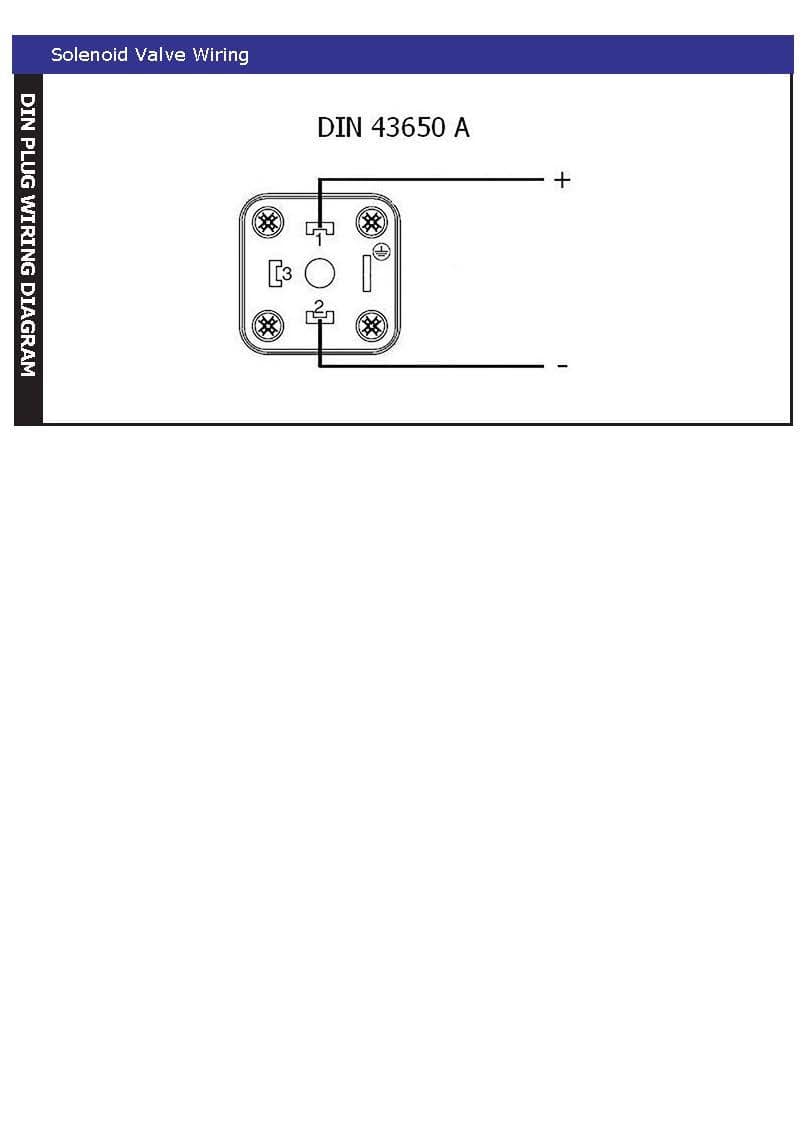

• Voltage Options: 12V DC, 24V DC, 24V AC, 110V AC & 240 AC

Key Features

• Stainless steel body for corrosion resistance
• Normally open fail-safe configuration
• High temperature and chemical compatibility

Installation & Application Notes
Install with correct flow direction and ensure minimum pressure differential. Ideal for hygienic processing, aggressive environments, and high-temperature systems.
