Imperial vs Metric Pipe Fittings: What UK Buyers Need to Know
The difference between imperial and metric pipe sizing causes more on-site problems than most buyers anticipate. This guide cuts through the confusion so you can specify with confidence.
Why the UK Uses Both Systems
Unlike most of Europe, the UK never made a clean break to metric. Older industrial plant, commercial buildings, and water infrastructure built before the 1990s is predominantly imperial. Newer installations and anything with a European engineering influence tends to be metric. The result is a market where both sizing systems remain in daily use, often on the same site.
Imperial Pipe Sizing Explained
Imperial sizing uses inches, but the stated size is a nominal dimension, not the actual outside diameter. True ODs derive from historical iron pipe standards and can differ significantly from the nominal figure. In UK practice, wall thickness and pressure capability are defined by Class ratings:
- Class C - lightest wall, low-pressure duties
- Class D - medium wall, most commonly specified for general use
- Class E - heavier wall, higher pressure capability
- Class T - heaviest wall, demanding high-pressure applications
Metric Pipe Sizing Explained
Metric sizing references the actual outside diameter in millimetres- 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 90mm, and 110mm being the most common. Pressure capability is defined by PN ratings:- PN6 - 6 bar working pressure, lower-duty applications
- PN10 - 10 bar, the most widely used general industrial rating
- PN16 - 16 bar, for higher-pressure process and utility lines
Are They Interchangeable? No.
This is the most important point in this guide. Imperial and metric fittings are not interchangeable and cannot be directly joined without a purpose-made transition adapter. A 1" imperial pipe and a 25mm metric pipe may look similar, but their outside diameters differ enough that a solvent-welded or push-fit joint will not seal reliably under pressure. Common situations where this causes problems include:- Extending an older imperial system with metric fittings from a European supplier
- Replacing a section of pipework without first measuring the existing OD
- Working from drawings that don't specify which sizing system is in use
A Note on ABS and Ancillary Components
ABS pipe systems in the UK are predominantly supplied in imperial inch sizing, reflecting the material's long history in British industrial applications. If you are specifying ABS pipe and fittings, expect imperial dimensions to be the norm.The imperial vs metric distinction also applies to valves, flanges, and gaskets, not just pipes and plain fittings. A metric valve will not align correctly with an imperial flange. When specifying a complete system, ensure all components throughout the run, pipe, fittings, valves, and flanges, come from the same sizing standard. You can browse both imperial and metric options within the full PVC pipe and fittings range.
Which System Should You Specify?

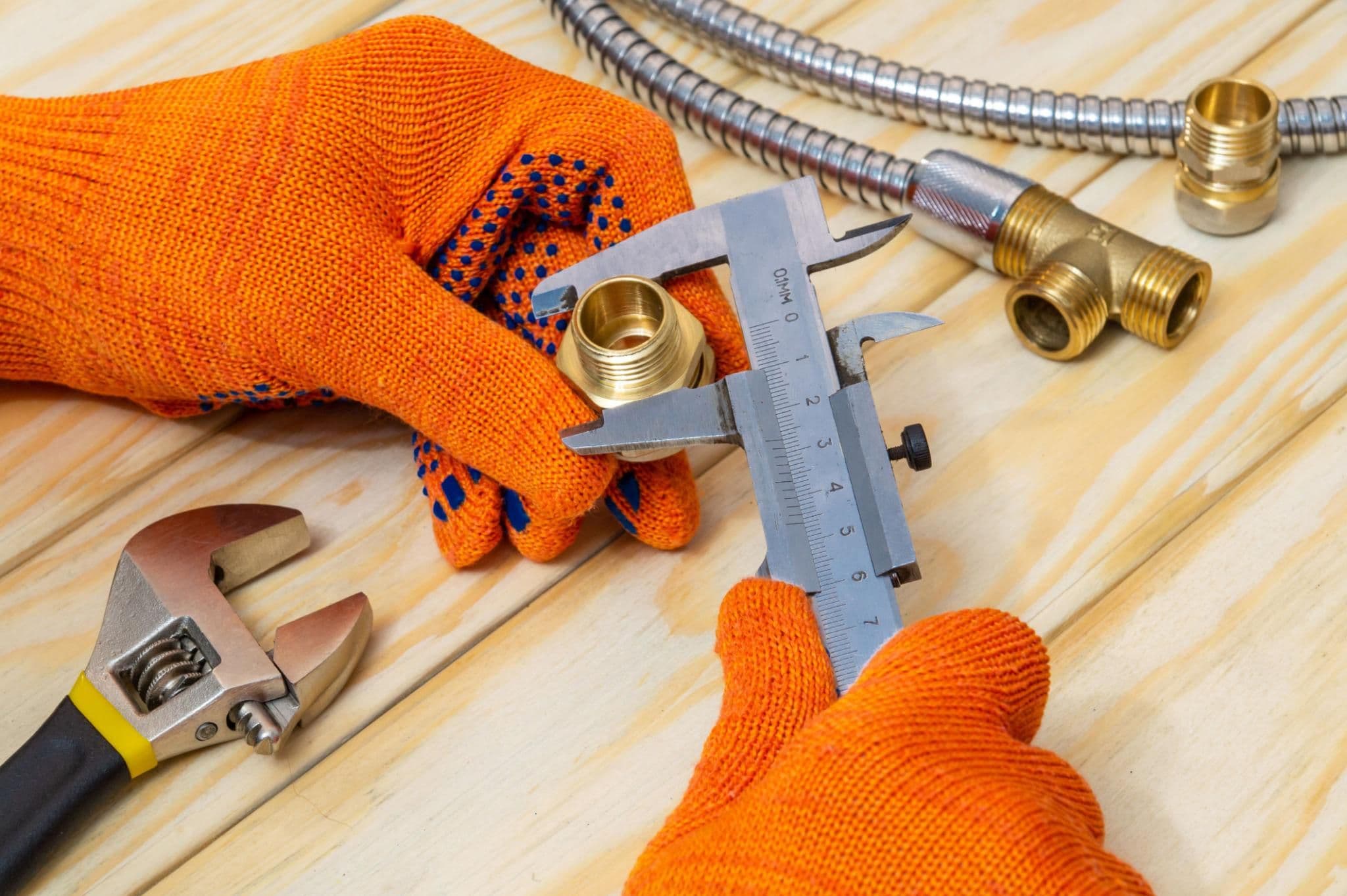

- Repairing or extending an existing system: Match what is already installed. Measure the OD with a vernier caliper and cross reference against dimension charts before ordering.
- New UK installation: Metric is generally the better choice, aligning with current standards and offering the widest product range.
- Cross-border projects: Metric specification reduces errors when engineering teams in different countries work to the same drawings.
- Older UK plant maintenance: Assume imperial unless you can confirm otherwise through direct measurement.
For identifying an unknown system in the field, measure the outside diameter and compare it against published OD tables for both systems. Don't rely on installation drawings alone- materials are sometimes substituted without documentation being updated. Standard dimension references for imperial inch PVC fittings are available from most reputable suppliers.
Frequently Asked Questions
Can I connect imperial and metric fittings directly?
No. The outside diameters differ and a reliable pressure seal cannot be achieved without a purpose-made transition adapter. Never rely on a tight push fit in a pressurised line.
Are PN ratings equivalent to imperial Class ratings?
They both indicate pressure capability but use different classification methods and are not directly equivalent. PN ratings express maximum working pressure in bar at 20°C. Imperial Class ratings define wall thickness relative to pipe diameter. Always check the manufacturer's data sheet for the specific product.
Is metric or imperial more common for new UK installations?
Metric is now the standard for most new UK industrial installations, particularly where European engineering standards apply. Imperial remains common where new work ties into existing imperial infrastructure.
What about Schedule 40/80- is that the same as UK imperial?
No. Schedule 40 and Schedule 80 are American (ASTM/ANSI) standards. While inch-based, their outside diameters and wall thicknesses differ from UK Class-rated imperial pipes in several sizes. They are not directly interchangeable with UK-standard imperial components.
Final Thoughts
The key to getting imperial vs metric right is consistency- one sizing system throughout the entire pipeline run, including all valves, flanges, and ancillaries. Measure before you order, confirm the sizing standard on your drawings, and use proper transition fittings wherever the two systems need to meet.
For UK buyers needing access to both imperial and metric stock from a single source, sourcing from a specialist in industrial plastic pipe fittings and valve systems makes it straightforward to confirm the right specification and order with confidence.
