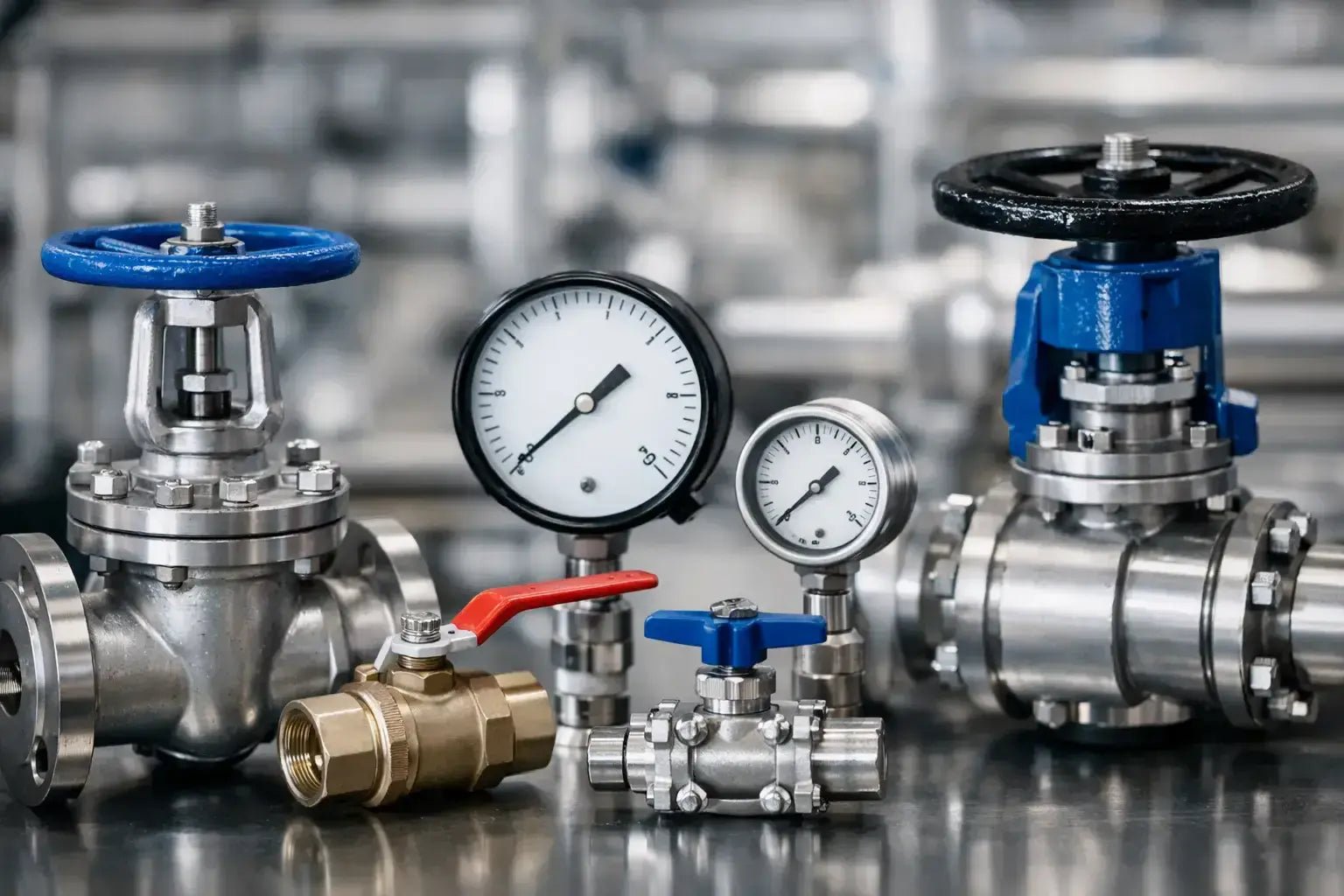

Pressure Rating Guide for Valves
A valve marked PN16 can be the right choice on one line and the wrong one on the next, even when the nominal pipe size is identical. That is the point of any pressure rating guide for valves - the figure on the body is only part of the specification, and relying on it in isolation can lead to leakage, premature wear or outright failure in service.
For trade buyers, contractors and engineers, pressure rating is not just a catalogue filter. It sits alongside temperature, media compatibility, connection standard, actuation method and system duty. A valve has to match the real operating conditions, including transient events, not just the design pressure written on a schedule.
What valve pressure rating actually means
In simple terms, a valve pressure rating states the maximum pressure the valve is designed to contain under defined conditions. Those conditions matter. Ratings are usually tied to a reference temperature and a recognised standard, and they can reduce as operating temperature rises.
That is why a valve stamped PN10, PN16 or PN25 should never be treated as universally suitable up to that pressure in every application. A plastic valve on cold water duty may achieve its full nominal rating, while the same valve on warmer chemical service may require significant derating. Likewise, a metal valve may have a class designation that changes with temperature according to the material group and standard used.
The practical point is straightforward: pressure rating is a controlled engineering value, not a marketing number.
Pressure rating guide for valves: the main rating systems
In the UK market, the most common pressure designations you will see are PN ratings and ASME or ANSI class ratings. They are related to pressure capability, but they are not interchangeable labels.
PN ratings
PN stands for nominal pressure and is widely used across European and ISO-based valve and pipework systems. Common ratings include PN10, PN16, PN25 and PN40. In broad terms, these relate to pressure capability in bar at a reference temperature, typically around 20°C for water service, though the exact standard and material still need checking.
For many plastic valves and fittings, PN rating is the most familiar way of specifying pressure capacity. In PVC and C-PVC systems, for example, PN ratings are often clearly stated in the product data, but the usable pressure can fall as temperature increases. That is normal and should be expected, not treated as an exception.
Class ratings
ASME class ratings such as Class 150, 300 or 600 are common on metal valves, especially in process, steam, oil, gas and higher duty industrial applications. These are not direct bar equivalents. A Class 150 valve does not simply mean 150 psi maximum in all services.
Instead, the allowable pressure depends on the valve material and the applicable pressure-temperature table. Carbon steel, stainless steel and alloy materials can carry different allowable pressures within the same class designation.
Why mixing systems causes mistakes
A frequent procurement error is assuming PN16 and Class 150 are close enough to substitute without further checks. Sometimes they may suit the duty. Sometimes they will not. Flange drilling, body material, temperature allowance and standard compliance can all differ. If the line specification is built around one system, substitution should be verified properly rather than assumed from headline numbers.
Temperature changes the rating
Temperature is one of the most overlooked parts of valve specification. As temperature rises, material strength changes. In plastic systems, that change can be substantial. In metal systems, pressure-temperature tables still apply and can materially reduce the permitted working pressure.
For example, a thermoplastic ball valve used on cold water may comfortably meet its nominal pressure rating. Put that same valve on a warmer process line and the allowable working pressure may need to be derated well below the figure shown in the product title. The same principle applies to seals and seats. EPDM, FKM and PTFE all have different operating envelopes, and the valveâs actual service limit may be dictated by the soft components as much as by the body material.
If your system has cleaning cycles, summer temperature peaks, heated recirculation or intermittent hot discharge, specify against the highest credible operating temperature, not the average.
Material selection and pressure performance
A proper pressure rating guide for valves has to account for material, because body construction directly affects pressure capability, corrosion resistance and long-term reliability.
PVC valves are widely used for water treatment, irrigation, chemical dosing and general industrial water systems because they offer good corrosion resistance and straightforward installation. They are often pressure rated well for ambient service, but they are not the default answer where elevated temperature or impact risk is present.
C-PVC extends temperature capability beyond standard PVC and can be useful where hotter process fluids are involved, subject to the manufacturerâs pressure derating data. Polypropylene offers strong chemical resistance in suitable duties, though pressure capability again depends on temperature and design.
Metal valves, including brass, bronze, cast iron, ductile iron, carbon steel and stainless steel, cover a broader spread of pressure and temperature conditions. Stainless steel is often preferred where corrosion resistance and cleaner service conditions are required, while cast and ductile iron remain common in water and general industrial systems. The trade-off is that higher-pressure or more chemically aggressive service often pushes buyers towards more specialised body and seat materials, which can increase cost and lead time.
Rated pressure is not the same as operating pressure
A system running at 6 bar does not automatically suit any 10 bar or 16 bar valve. Real systems see more than static line pressure. Pump start-up, water hammer, dead-heading, thermal expansion and control events can all create short-duration spikes above normal operating conditions.
That is why engineers usually allow a sensible margin between normal operating pressure and the valveâs allowable working pressure at the service temperature. How much margin is appropriate depends on the application. A calm gravity-fed water line is very different from a pumped chemical transfer system with frequent cycling, or a compressed air installation with pressure pulses.
Where transients are likely, the specification should consider peak pressure, not just steady-state pressure. If the duty is critical, system protection measures such as slow-closing actuators, surge suppression or pressure relief may be just as important as the valve rating itself.
End connections and standards still matter
Pressure capability does not sit in the valve body alone. The full assembly has to be considered, including unions, flanges, threaded ends and the adjoining pipe system.
A valve may be pressure rated higher than the mating pipe or fitting, which means the assembly is only as strong as its lowest-rated component. In plastic systems, solvent welded joints, threaded adaptors and flanged connections all need to suit the same design conditions. In metal systems, flange standard, gasket selection and bolt set specification also affect performance.
This is especially relevant when replacing one valve in an existing line. A like-for-like size swap does not guarantee like-for-like pressure performance.
How to specify correctly
The fastest way to avoid rating errors is to work through the application in the same order every time. Start with the media, then confirm the normal and maximum operating pressure, the full temperature range, the valve function and the connection standard. After that, check body material, seat and seal materials, actuation requirements and any compliance or approval requirements relevant to the site.
For many buyers, the decisive question is not "What pressure is the valve rated to?" but "What pressure is this valve rated to in this service, at this temperature, with this connection type?" That framing usually produces a more reliable specification.
It also helps to distinguish between isolation and control duty. A valve suitable for on-off isolation at a given pressure may not be the right choice for throttling duty, where seat wear, cavitation or unstable flow can shorten service life.
Common specification mistakes
Most valve rating problems come from a short list of avoidable assumptions. One is reading the nominal rating without checking temperature derating. Another is treating PN and class designations as direct equivalents. A third is overlooking transient pressure.
There is also the issue of chemical compatibility. A valve may satisfy the pressure requirement and still be unsuitable because the fluid attacks the body, seat or elastomer. That is particularly relevant in dosing systems, cleaning chemical lines and industrial process applications where concentration and temperature can both shift over time.
Finally, buyers sometimes specify to the line size and pressure only, without considering access, maintenance and actuation. A technically compliant valve that is awkward to operate or service can still be the wrong commercial choice.
Buying with confidence
For procurement teams and site engineers, good specification is really about reducing risk. The correct valve rating protects the line, supports compliance, limits maintenance and avoids emergency replacement costs. It also makes purchasing faster because the shortlist is built on service conditions rather than guesswork.
A specialist distributor such as Plastic Pipe and Fittings Distribution can usually add most value at this stage - not by overcomplicating the choice, but by aligning pressure rating, material and connection details with the application you are actually trying to run.
When a valve rating looks clear at first glance, that is usually the moment to check one level deeper. A few extra minutes on pressure, temperature and material compatibility is often what separates a routine installation from a callout later.
